  • 封装:28-SSOP(0.209",5.30mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$4.55

更新日期:2024-04-01 00:04:00

产品简介:192kHz 立体声异步采样速率转换器

查看详情
  • 封装:28-SSOP(0.209",5.30mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$4.55

SRC4190IDBR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

SRC4190IDBR 中文资料属性参数

  • 标准包装:2,000
  • 类别:集成电路 (IC)
  • 家庭:线性 - 音频处理
  • 系列:-
  • 类型:采样率转换器
  • 应用:广播,控制台,接收器
  • 安装类型:表面贴装
  • 封装/外壳:28-SSOP(0.209",5.30mm 宽)
  • 供应商设备封装:28-SSOP
  • 包装:带卷 (TR)

产品特性

  • Automatic Sensing of the Input-to-Output Sampling Ratio
  • Wide Input-to-Output Sampling Range: 16:1 to 1:16
  • Supports Input and Output Sampling Rates up to 212 kHz
  • Dynamic Range: 128 dB (–60-dB fS Input, BW = 20 Hz to fS / 2, A-Weighted)
  • THD+N: –125 dB (0-dB fS Input, BW = 20 Hz to fS / 2)
  • Attenuates Sampling and Reference Clock Jitter
  • High-Performance, Linear Phase Digital Filtering
  • Flexible Audio Serial Ports: Master or Slave Mode Operation Supports I2S, Left Justified, Right Justified, and TDM Data Formats Supports 16-, 18-, 20-, or 24-Bit Audio Data, TDM Mode Allows Daisy Chaining of up to Eight Devices
  • Master or Slave Mode Operation Supports I2S, Left Justified, Right Justified, and TDM Data Formats
  • Supports 16-, 18-, 20-, or 24-Bit Audio Data, TDM Mode Allows Daisy Chaining of up to Eight Devices
  • Supports 24-, 20-, 18-, or 16-Bit Input and Output All Output Data is Dithered from the Internal 28-Bit Data Path
  • All Output Data is Dithered from the Internal 28-Bit Data Path
  • Low Group Delay Option for Interpolation Filter
  • Soft Mute Function
  • Bypass Mode
  • Power-Down Mode
  • Operates from a Single 3.3-V Power Supply
  • Small 28-Pin SSOP Package
  • Pin Compatible With the SRC4192, AD1895, and AD1896 U.S. Patent No. 7,262,716 See for details.

产品概述

The SRC4190 device is an asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4190 combines a wide input-to-output sampling ratio with outstanding dynamic range and low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4190 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.The SRC4190 is a standalone pin-programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions.The SRC4190 may be operated from a single 3.3-V power supply. A separate digital I/O supply (VIO) operates with a 1.65-V to 3.6-V supply, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. The SRC4190 is available in a 28-pin SSOP package.

SRC4190IDBR 数据手册

数据手册 说明 数量 操作
SRC4190IDBR

192kHz Stereo Asynchronous Sample Rate Converters

25 Pages页,1.08M 查看
SRC4190IDBR

192kHz Stereo Asynchronous Sample Rate Converters

10 Pages页,1.08M 查看
SRC4190IDBRG4

192kHz Stereo Asynchronous Sample Rate Converters 28-SSOP -40 to 85

28页,1.23M 查看
SRC4190IDBRQ1

IC 192KHZ SAMPL RATE CONV 28SSOP

30页,1.24M 查看

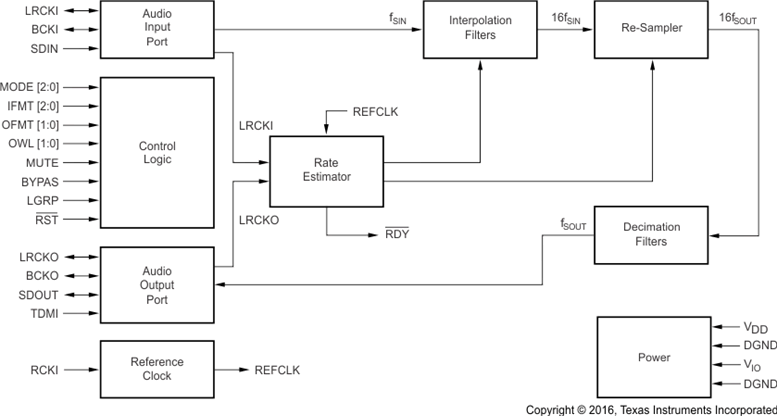

SRC4190IDBR 电路图

SRC4190IDBR 电路图

SRC4190IDBR 电路图
