SNJ54LVC374AFK

Texas Instruments 触发器

更新日期：2024-04-01 00:04:00

SNJ54LVC374AFK

Texas Instruments 触发器

产品简介：具有三态输出的八路边沿 D 类触发器

查看详情

SNJ54LVC374AFK 中文资料属性参数

现有数量：0现货2,362Factory
价格：在售
系列：*
包装：管件
产品状态：在售
功能：-
类型：-
输出类型：-
元件数：-
每个元件位数：-
时钟频率：-
不同 V、最大 CL 时最大传播延迟：-
触发器类型：-
电流 - 输出高、低：-
电压 - 供电：-
电流 - 静态 (Iq)：-
输入电容：-
工作温度：-
安装类型：-
供应商器件封装：-
封装/外壳：-

产品特性

Operate From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max tpd of 6.5 ns at 3.3 V
Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
Support Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
Ioff Supports Live Insertion, Partial-Power- Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

产品概述

The SN54LVC374A octal edge-triggered D-type flip-flop is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC374A octal edge-triggered D-type flip-flop is designed for 1.65-V to 3.6-V VCC operation.

查看全部

SNJ54LVC374AFK 数据手册

数据手册	说明	数量	操作
SNJ54LVC374AFK	OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS	21 Pages页,609K	查看

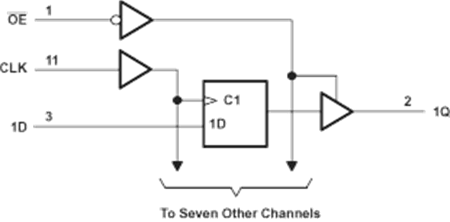

SNJ54LVC374AFK 电路图
