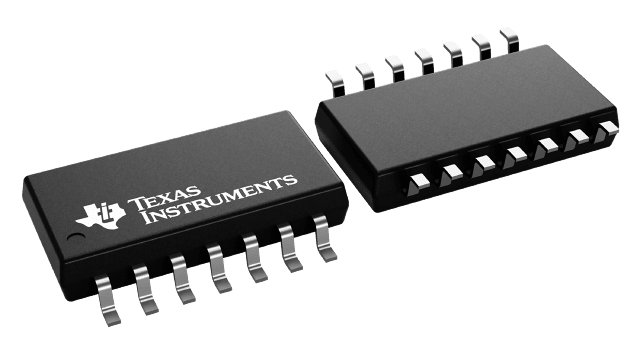

SN75182NSR

The SN55182 and SN75182 dual differential line receivers are designed to sense small differential signals in the presence of large common-mode noise. These devices give TTL-compatible output signals as a function of the polarity of the differential input voltage. The frequency response of each channel can be easily controlled by a single external capacitor to provide immunity to differential noise spikes. The output goes to a high level when the inputs are open circuited. A strobe input (STRB) is provided that, when in the low level, disables the receiver and forces the output to a high level. The receiver is of monolithic single-chip construction, and both halves of the dual circuits use common power-supply and ground terminals. The SN55182 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN75182 is characterized for operation from 0°C to 70°C. H = VI >= VIH min or VID more positive than VTH max L = VI <= VIL max or VID more negative than VTL max X = irrelevant
