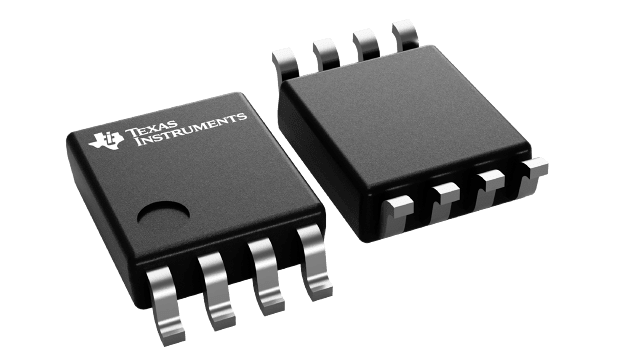

SN74LVC2G86DCUT

This dual 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC2G86 performs the Boolean function Y = A ⊕ B or Y = AB + AB in positive logic.NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.A common application is as a true/complement element. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.An exclusive-OR gate has many applications, some of which can be represented better by alternative logic symbols.
