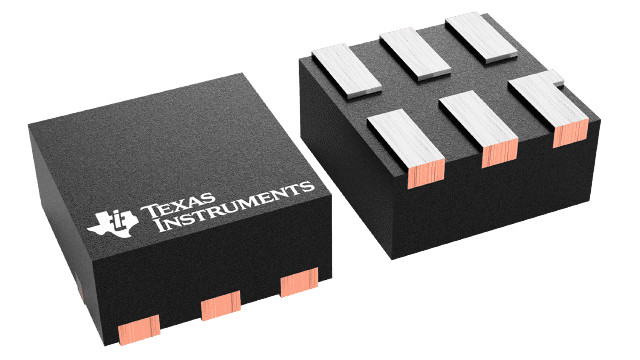

SN74LVC1G125DSFR

Texas Instruments 逻辑集成电路

参考价格：￥0.621-￥2.21

更新日期：2024-04-01 00:04:00

SN74LVC1G125DSFR

Texas Instruments 逻辑集成电路

产品简介：具有三态输出的 1.65V 至 5.5V 单路缓冲器

查看详情

参考价格：￥0.621-￥2.21

SN74LVC1G125DSFR 供应商

公司
型号
品牌
封装/批号
数量
地区
日期
说明
询价

上海三崧电子有限公司 保2千
SN74LVC1G125DSFR
TI
原厂原装
22+
3288
上海市
-
一级代理原装

SN74LVC1G125DSFR 中文资料属性参数

制造商：Texas Instruments
产品种类：缓冲器和线路驱动器
封装：Reel
工厂包装数量：5000

产品特性

Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to VCC
Max tpd of 3.7 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

产品概述

This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high.The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.The SN74LVC1G125 device is available in a variety of packages including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

查看全部

SN74LVC1G125DSFR 数据手册

数据手册	说明	数量	操作
SN74LVC1G125DSFR	Buffer, Non-Inverting 1 Element 1 Bit per Element Push-Pull Output 6-SON (1x1)	37页,1.82M	查看
