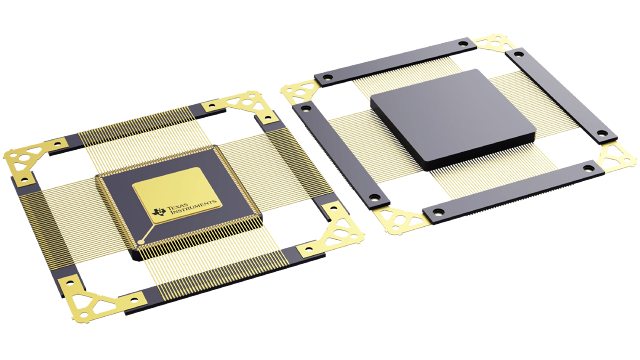

SM320F2812HFGS150

Texas Instruments Embedded Controllers & Processors

参考价格：￥2,208.69-￥2,243.19

更新日期：2024-04-01

SM320F2812HFGS150

Texas Instruments Embedded Controllers & Processors

产品简介：具有 150MHz 频率、256KB 闪存、EMIF 的 C2000? 高温 32 位 MCU

查看详情

参考价格：￥2,208.69-￥2,243.19

SM320F2812HFGS150 供应商

公司
型号
品牌
封装/批号
数量
地区
日期
说明
询价

上海德懿电子科技有限公司
SM320F2812HFGS150
TI
微控制器
21+
1000
上海市
-
原装现货，品质为先！请来电垂询！

SM320F2812HFGS150 中文资料属性参数

制造商：Texas Instruments
产品种类：数字信号处理器与控制器 (DSP, DSC)
数据总线宽度：32 bit
程序存储器大小：256 KB
最大时钟频率：150 MHz
工作电源电压：1.9 V, 3.3 V
最大工作温度：+ 220 C
封装 / 箱体：CFPAK-172
最小工作温度：- 55 C
产品：DSPs
工厂包装数量：1

产品特性

High-Performance Static CMOS Technology 150 MHz (6.67 ns Cycle Time) Low Power (1.8 V Core at 135 MHz, 1.9 V, Core at 150 MHz, 3.3 V I/O) Design 3.3 V Flash Voltage
150 MHz (6.67 ns Cycle Time)
Low Power (1.8 V Core at 135 MHz, 1.9 V, Core at 150 MHz, 3.3 V I/O) Design
3.3 V Flash Voltage
JTAG Boundary Scan SupportIEEE Standard 1149.1-1990, IEEE Standard Test-Access Port
High-Performance 32 Bit CPU (TMS320C28x) 16 × 16 and 32 x 32 MAC Operations 16 × 16 Dual MAC Harvard Bus Architecture Atomic Operations Fast Interrupt Response and Processing Unified Memory Programming Model 4M Linear Program Address Reach 4M Linear Data Address Reach Code-Efficient (in C/C++ and Assembly) TMS320F24x/LF240x Processor Source Code Compatible
16 × 16 and 32 x 32 MAC Operations
16 × 16 Dual MAC
Harvard Bus Architecture
Atomic Operations
Fast Interrupt Response and Processing
Unified Memory Programming Model
4M Linear Program Address Reach
4M Linear Data Address Reach
Code-Efficient (in C/C++ and Assembly)
TMS320F24x/LF240x Processor Source Code Compatible
On-Chip Memory Flash Devices: Up to 128K × 16 Flash (Four 8K × 16 and Six 16K × 16 Sectors) ROM Devices: Up to 128K × 16 ROM 1K × 16 OTP ROM L0 and L1: 2 Blocks of 4K × 16 Each Single-Access RAM (SARAM) H0: 1 Block of 8K × 16 SARAM M0 and M1: 2 Blocks of 1K × 16 Each SARAM
Flash Devices: Up to 128K × 16 Flash (Four 8K × 16 and Six 16K × 16 Sectors)
ROM Devices: Up to 128K × 16 ROM
1K × 16 OTP ROM
L0 and L1: 2 Blocks of 4K × 16 Each Single-Access RAM (SARAM)
H0: 1 Block of 8K × 16 SARAM
M0 and M1: 2 Blocks of 1K × 16 Each SARAM
Boot ROM (4K × 16) With Software Boot Modes Standard Math Tables
With Software Boot Modes
Standard Math Tables
External Interface Up to 1M Total Memory Programmable Wait States Programmable Read/Write Strobe Timing Three Individual Chip Selects
Up to 1M Total Memory
Programmable Wait States
Programmable Read/Write Strobe Timing
Three Individual Chip Selects
Clock and System Control Dynamic PLL Ratio Changes Supported On-Chip Oscillator Watchdog Timer Module
Dynamic PLL Ratio Changes Supported
On-Chip Oscillator
Watchdog Timer Module
Three External Interrupts
Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts
128 Bit Security Key/Lock Protects Flash/ROM/OTP and L0/L1 SARAM Prevents Firmware Reverse Engineering
Protects Flash/ROM/OTP and L0/L1 SARAM
Prevents Firmware Reverse Engineering
Three 32 Bit CPU Timers
Motor Control Peripherals Two Event Managers (EVA, EVB) Compatible to 240xA Devices
Two Event Managers (EVA, EVB)
Compatible to 240xA Devices
Serial Port Peripherals Serial Peripheral Interface (SPI) Two Serial Communications Interfaces (SCIs), Standard UART Multichannel Buffered Serial Port (McBSP) With SPI Mode
Serial Peripheral Interface (SPI)
Two Serial Communications Interfaces (SCIs), Standard UART
Multichannel Buffered Serial Port (McBSP) With SPI Mode
12 Bit ADC, 16 Channels 2 × 8 Channel Input Multiplexer Two Sample-and-Hold Single/Simultaneous Conversions Fast Conversion Rate: 80 ns/12.5 MSPS
2 × 8 Channel Input Multiplexer
Two Sample-and-Hold
Single/Simultaneous Conversions
Fast Conversion Rate: 80 ns/12.5 MSPS
Up to 56 Individually Programmable, Multiplexed General-Purpose Input / Output (GPIO) Pins
Advanced Emulation Features Analysis and Breakpoint Functions Real-Time Debug via Hardware
Analysis and Breakpoint Functions
Real-Time Debug via Hardware
Development Tools Include ANSI C/C++ Compiler/Assembler/Linker Supports TMS320C24x/240x Instructions Code Composer Studio IDE DSP/BIOS JTAG Scan Controllers [Texas Instruments (TI) or Third-Party] Evaluation Modules Broad Third-Party Digital Motor Control Support
ANSI C/C++ Compiler/Assembler/Linker
Supports TMS320C24x/240x Instructions
Code Composer Studio IDE
DSP/BIOS
JTAG Scan Controllers [Texas Instruments (TI) or Third-Party]
Evaluation Modules
Broad Third-Party Digital Motor Control Support
Low-Power Modes and Power Savings IDLE, STANDBY, HALT Modes Supported Disable Individual Peripheral Clocks
IDLE, STANDBY, HALT Modes Supported
Disable Individual Peripheral Clocks
APPLICATIONS Controlled Baseline One Assembly/Test Site One Fabrication Site Available in Extreme (–55°C/220°C) Temperature Range(1) Extended Product Life Cycle Extended Product-Change Notification Product Traceability Texas Instruments high temperature products utilize highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures.
Controlled Baseline
One Assembly/Test Site
One Fabrication Site
Available in Extreme (–55°C/220°C) Temperature Range(1)
Extended Product Life Cycle
Extended Product-Change Notification
Product Traceability
Texas Instruments high temperature products utilize highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures.

产品概述

The SM320F2812 device, member of the C28xE DSP generation, is a highly integrated, high-performance solution for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview.Throughout this document SM320F2812 is abbreviated as F2812.

查看全部

SM320F2812HFGS150 数据手册

数据手册	说明	数量	操作
SM320F2812HFGS150	C28x C2000? C28x Fixed-Point Microcontroller IC 32-Bit 150MHz 256KB (128K x 16) FLASH 172-CFP	153页,1.36M	查看
