更新日期：2024-04-01
产品简介：高可靠性产品高性能 8 核 C6678 定点和浮点 DSP
查看详情SM320C6678ACYPW 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原封装
新批号 -
887000
-
上海市
-
-
-
原厂发货进口原装微信同步QQ893727827
-
Texas Instruments
-
-
最新批号 -
6996
-
上海市
-
-
SM320C6678ACYPW 中文资料属性参数
- 现有数量：0现货484Factory
- 价格：在售
- 系列：TMS320C66x
- 包装：管件
- 产品状态：在售
- 类型：定点/浮点
- 接口：EBI/EMI，I2C，PCIe，SPI，TSIP，UART，10/100/1000 以太网
- 时钟速率：1GHz
- 非易失性存储器：ROM（128kB）
- 片载 RAM：8.5MB
- 电压 - I/O：1.0V，1.5V，1.8V
- 电压 - 内核：1.00V
- 工作温度：-55°C ~ 115°C（TJ）
- 安装类型：表面贴装型
- 封装/外壳：841-BFBGA，FCBGA
- 供应商器件封装：841-FCBGA（24x24）
产品特性
- Eight SM320C66x DSP Core Subsystems at 1.00 GHz 32KB L1P, 32KB L1D, 512KB L2 Per Core 4MB Shared L2
- 32KB L1P, 32KB L1D, 512KB L2 Per Core
- 4MB Shared L2
- Multicore Navigator and TeraNet Switch Fabric - 2 Tb
- Network Coprocessors- Packet Accelerator, Security Accelerator
- Four Lanes of SRIO 2.1 - 5 Gbaud Per Lane Full Duplex
- Two Lanes PCIe Gen2 - 5 Gbaud Per Lane Full Duplex
- HyperLink - Up to 50Gbaud Operation at -40C to 105C and 25 GBaud at -55C to 115C, Full Duplex
- Ethernet MAC Subsystem - Two SGMII Ports w/ 10/100/1000 Mbps operation
- 64-Bit DDR3 Interface (DDR3-1600) - 8 GByte Addressable Memory Space
- 16-Bit EMIF - Async SRAM, NAND and NOR Flash Support
- Two Telecom Serial Ports (TSIP) - 2/4/8 Lanes at 32.768/16.384/8.192
- UART Interface
- I2C Interface
- 16 GPIO Pins
- SPI Interface
- Sixteen 64-Bit Timers
- Three On-Chip PLLs
产品概述
The SM320C6678 Multicore Fixed and Floating Point Digital Signal Processor is based on TI's KeyStone multicore architecture. Integrated with eight C66x CorePac DSPs, each core runs at 1.0 GHz enabling up to 8 GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, test, and automation. The C6678 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.

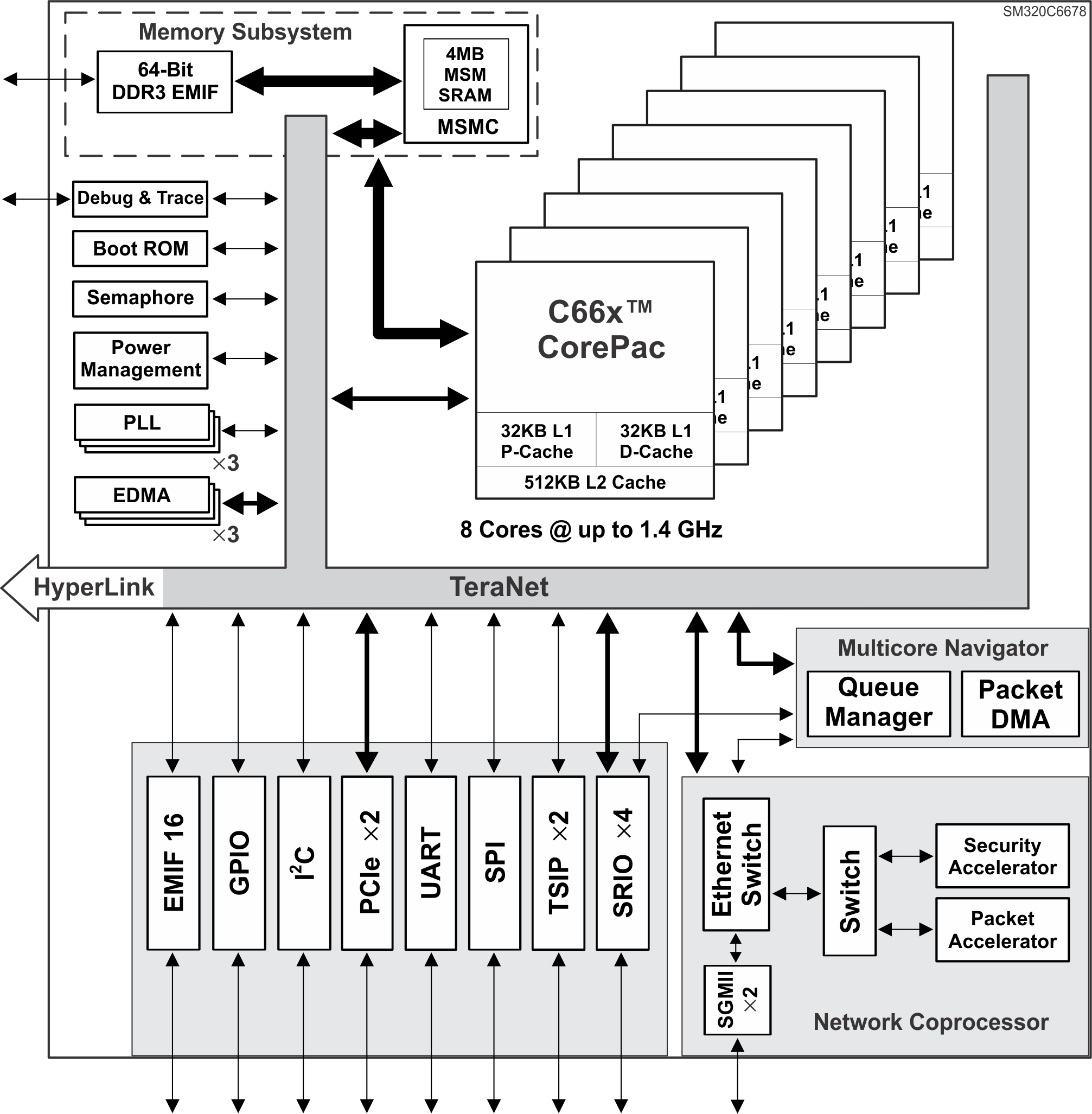

SM320C6678ACYPW 电路图
SM320C6678ACYPW 电路图
