RC4580QPWRQ1

Texas Instruments Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 封装：*
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：*
  • 参考价格：$0.4464-$1.04

更新日期：2024-04-01

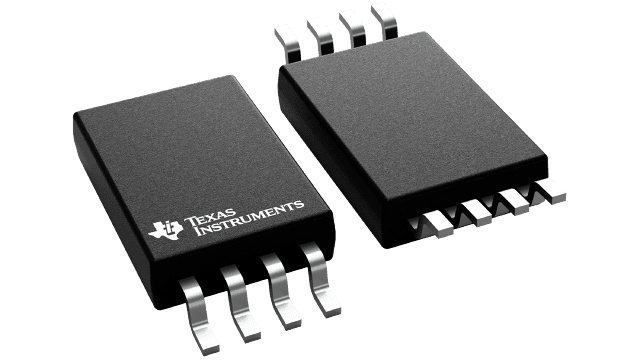

RC4580QPWRQ1

Texas Instruments Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

产品简介：汽车级、双通道、32V、12MHz、低噪声 (6.5nV/√Hz) 运算放大器

查看详情
  • 封装：*
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：*
  • 参考价格：$0.4464-$1.04

RC4580QPWRQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

RC4580QPWRQ1 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 系列：-
  • 放大器类型：音频
  • 电路数：2
  • 输出类型：-
  • 转换速率：5 V/µs
  • 增益带宽积：12MHz
  • -3db带宽：-
  • 电流 - 输入偏压：100nA
  • 电压 - 输入偏移：500µV
  • 电流 - 电源：6mA
  • 电流 - 输出 / 通道：50mA
  • 电压 - 电源，单路/双路(±)：4 V ~ 32 V，±2 V ~ 16 V
  • 工作温度：-40°C ~ 125°C
  • 安装类型：*
  • 封装/外壳：*
  • 供应商设备封装：*
  • 包装：*
  • 其它名称：296-34828-6

产品特性

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range Device HBM ESD Classification Level H2 Device CDM ESD Classification Level C3B
  • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C3B
  • Operating Voltage . . . ±2 V to ±18 V
  • Low Noise Voltage . . . 0.8 µVrms (TYP)
  • Wide GBW . . . 12 MHz (TYP)
  • Low THD . . . 0.0005% (TYP)
  • Slew Rate . . . 5 V/µs (TYP)
  • Suitable for Automotive Applications Such As Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment
  • Drop-In Replacement for NJM4580
  • Pin and Function Compatible With LM833, NE5532, NJM4558/9, and NJM4560/2/5

产品概述

The RC4580-Q1 device is a dual operational amplifier that is designed optimally for audio applications, such as improving tone control. It offers low noise, high gain bandwidth, low harmonic distortion, and high output current. All of these features make the device ideally suited for audio electronics, such as audio preamplifiers and active filters, as well as industrial measurement equipment. When high output current is required, the RC4580-Q1 device can be used as a headphone amplifier. Due to its wide operating supply voltage, the RC4580-Q1 device can also be used in low-voltage applications.
