PGA2311U/1K

Texas Instruments 音频 IC
  • 参考价格：￥30.64-￥31.19

更新日期：2024-04-01

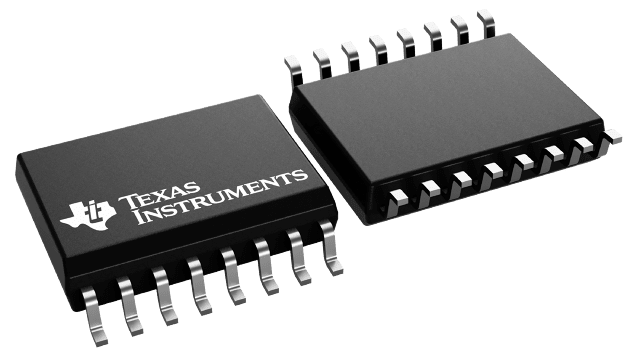

PGA2311U/1K

Texas Instruments 音频 IC

产品简介：+/-5V 立体声音频音量控制

查看详情
  • 参考价格：￥30.64-￥31.19

PGA2311U/1K 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

PGA2311U/1K 中文资料属性参数

  • 制造商：Texas Instruments
  • 产品种类：音频放大器
  • 最大工作温度：+ 85 C
  • 安装风格：SMD/SMT
  • 封装 / 箱体：SOIC-16
  • 封装：Reel
  • 最小工作温度：- 40 C
  • 工厂包装数量：1000

产品特性

  • Digitally-Controlled Analog Volume Control: Two Independent Audio Channels Serial Control Interface Zero Crossing Detection Mute Function
  • Two Independent Audio Channels
  • Serial Control Interface
  • Zero Crossing Detection
  • Mute Function
  • Wide Gain and Attenuation Range: +31.5 dB to −95.5 dB with 0.5-dB Steps
  • Low Noise and Distortion: 120-dB Dynamic Range 0.0004% THD+N at 1 kHz (U-Grade) 0.0002% THD+N at 1 kHz (A-Grade)
  • 120-dB Dynamic Range
  • 0.0004% THD+N at 1 kHz (U-Grade)
  • 0.0002% THD+N at 1 kHz (A-Grade)
  • Noise-Free Level Transitions
  • Low Interchannel Crosstalk: −130 dBFS
  • Power Supplies: ±5-V Analog, +5-V Digital
  • Available in PDIP-16 and SOIC-16 Packages
  • Pin- and Software-Compatible With the Crystal CS3310

产品概述

The PGA2311 device is a high-performance, stereo audio volume control designed for professional and high-end consumer audio systems. The PGA2311 uses an internal high-performance operational amplifier to yield low noise and distortion. The PGA2311 also provides the capability to drive 660-Ω loads directly without buffering. The 3-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2311 devices.
查看全部

PGA2311U/1K 数据手册

数据手册 说明 数量 操作
PGA2311U/1K

STEREO AUDIO VOLUME CONTROL

 10 Pages页,598K 查看
PGA2311U/1KG4

+/-5V Stereo Audio Volume Control 16-SOIC -40 to 85

19页,832K 查看

PGA2311U/1K 电路图

PGA2311U/1K 电路图

PGA2311U/1K 电路图
