PCM2912APJT

Texas Instruments 接口 - 编解码器
  • 封装：32-TQFP
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$10.36-$9.52

更新日期：2024-04-01

PCM2912APJT

Texas Instruments 接口 - 编解码器

产品简介：具有 USB 接口、单声道麦克风输入和立体声耳机输出的音频编解码器

查看详情
  • 封装：32-TQFP
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$10.36-$9.52

PCM2912APJT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

PCM2912APJT 中文资料属性参数

  • 标准包装：250
  • 类别：集成电路 (IC)
  • 家庭：接口 - 编解码器
  • 系列：-
  • 类型：立体声音频
  • 数据接口：USB
  • 分辨率（位）：16 b
  • ADC / DAC 数量：1 / 2
  • 三角积分调变：是
  • S/N 比，标准 ADC / DAC (db)：92 / 92
  • 动态范围，标准 ADC / DAC (db)：90 / 90
  • 电压 - 电源，模拟：4.35 V ~ 5.25 V
  • 电压 - 电源，数字：4.35 V ~ 5.25 V
  • 工作温度：-25°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：32-TQFP
  • 供应商设备封装：32-TQFP（7x7）
  • 包装：托盘
  • 其它名称：296-23950

产品特性

  • On-Chip USB Interface: With Full-Speed Transceivers Fully Compliant With USB 2.0 Specification Certified By USB-IF Partially Programmable Descriptors Adaptive Isochronous Transfer for Playback Asynchronous-Isochronous Transfer for Record Bus Powered
  • With Full-Speed Transceivers
  • Fully Compliant With USB 2.0 Specification
  • Certified By USB-IF
  • Partially Programmable Descriptors
  • Adaptive Isochronous Transfer for Playback
  • Asynchronous-Isochronous Transfer for Record
  • Bus Powered
  • 16-Bit Delta-Sigma ADC and DAC
  • Sampling Rate: 8, 11.025, 16, 22.05, 32, 44.1, or 48 kHz
  • 8, 11.025, 16, 22.05, 32, 44.1, or 48 kHz
  • On-Chip Clock Generator: With Single 6-MHz Clock Source
  • With Single 6-MHz Clock Source
  • Mono ADC with Microphone Input Analog Performance at VBUS = 5 V: THD+N: 0.01% SNR: 92 dB Dynamic Range: 90 dB Decimation Digital Filter Passband Ripple: ±0.05 dB Stop-Band Attenuation: –65 dB Single-Ended Voltage Input Antialiasing Filter Included Digital HPF Included Microphone Bias, Microphone Amplifier, and Input PGA
  • Analog Performance at VBUS = 5 V: THD+N: 0.01% SNR: 92 dB Dynamic Range: 90 dB
  • THD+N: 0.01%
  • SNR: 92 dB
  • Dynamic Range: 90 dB
  • Decimation Digital Filter Passband Ripple: ±0.05 dB Stop-Band Attenuation: –65 dB
  • Passband Ripple: ±0.05 dB
  • Stop-Band Attenuation: –65 dB
  • Single-Ended Voltage Input
  • Antialiasing Filter Included
  • Digital HPF Included
  • Microphone Bias, Microphone Amplifier, and Input PGA
  • Stereo DAC With Headphone Output Analog Performance at VBUS = 5.0 V: THD+N: 0.01% (RL > 10 kΩ) THD+N: 0.02% (RL = 32 Ω) SNR: 92 dB Dynamic Range: 90 dB PO: 13 mW (RL = 32 Ω) PO: 25 mW (RL = 16 Ω) Oversampling Digital Filter Passband Ripple: ±0.1 dB Stop-Band Attenuation: –43 dB Single-Ended Voltage Output Analog LPF Included Sidetone PGA, Output PGA, and HP Amplifier
  • Analog Performance at VBUS = 5.0 V: THD+N: 0.01% (RL > 10 kΩ) THD+N: 0.02% (RL = 32 Ω) SNR: 92 dB Dynamic Range: 90 dB PO: 13 mW (RL = 32 Ω) PO: 25 mW (RL = 16 Ω)
  • THD+N: 0.01% (RL > 10 kΩ)
  • THD+N: 0.02% (RL = 32 Ω)
  • SNR: 92 dB
  • Dynamic Range: 90 dB
  • PO: 13 mW (RL = 32 Ω)
  • PO: 25 mW (RL = 16 Ω)
  • Oversampling Digital Filter Passband Ripple: ±0.1 dB Stop-Band Attenuation: –43 dB Single-Ended Voltage Output Analog LPF Included Sidetone PGA, Output PGA, and HP Amplifier
  • Passband Ripple: ±0.1 dB
  • Stop-Band Attenuation: –43 dB
  • Single-Ended Voltage Output
  • Analog LPF Included
  • Sidetone PGA, Output PGA, and HP Amplifier
  • Multifunctions: Suspend, Playback, and Record Status Flag Microphone Amplifier, Mute, and Gain Control
  • Suspend, Playback, and Record Status Flag
  • Microphone Amplifier, Mute, and Gain Control
  • Pop/Click Noise-Free
  • Single Power-Supply: 5 V Typical (VBUS)
  • Package: 32-Pin TQFP

产品概述

The PCM2912A is the Texas Instruments single-chip, USB stereo audio codec with a USB, 2.0-compliant, full-speed protocol controller and an analog front-end (AFE) function for headset applications.The USB protocol controller works with no software code, but USB descriptors can be modified on request. The PCM2912A employs SpAct™ architecture, TI’s unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enables independent playback and record sampling rates with low clock jitters.
查看全部

PCM2912APJT 数据手册

数据手册 说明 数量 操作
PCM2912APJT

Stereo Audio Interface 16 b USB 32-TQFP (7x7)

 34页,1.12M 查看

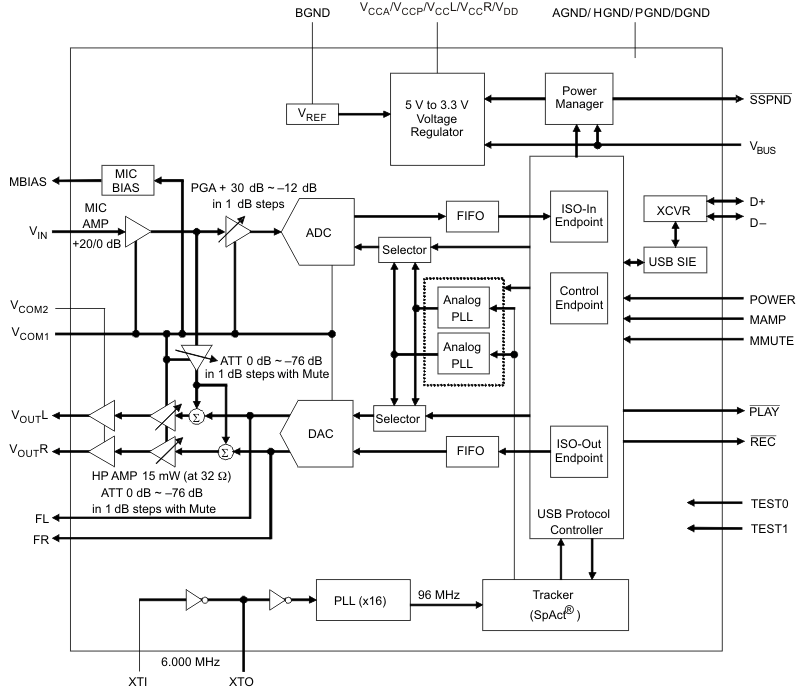

PCM2912APJT 电路图

PCM2912APJT 电路图

PCM2912APJT 电路图
