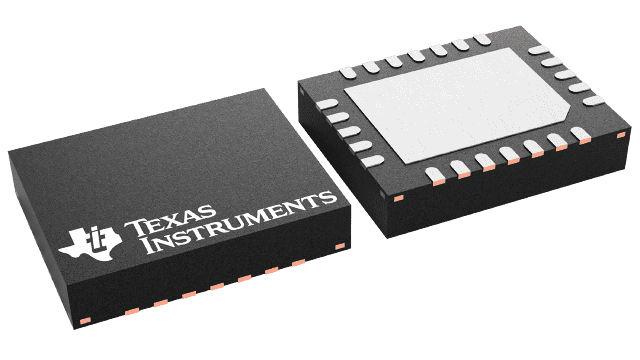

PCM1870RHFT

Texas Instruments 数据采集 - ADCs/DAC - 专用型
  • 封装：24-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$4.1356-$5.64

更新日期：2024-04-01

PCM1870RHFT

Texas Instruments 数据采集 - ADCs/DAC - 专用型

产品简介：采用麦克风偏置、ALC、音效和陷波滤波器的 90dB SNR 低功耗立体声音频 ADC

查看详情
  • 封装：24-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$4.1356-$5.64

PCM1870RHFT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

PCM1870RHFT 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：数据采集 - ADCs/DAC - 专用型
  • 系列：-
  • 类型：立体声音频
  • 分辨率（位）：16 b
  • 采样率（每秒）：5k ~ 50k
  • 数据接口：I²C，串行，SPI?
  • 电压电源：模拟和数字
  • 电源电压：*
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：24-VFQFN 裸露焊盘
  • 供应商设备封装：24-VQFN（5x4）
  • 包装：®
  • 其它名称：296-32203-6

产品特性

  • Analog Front End:Stereo Single End Input With MUXMono Differential InputStereo Programmable Gain AmplifierMicrophone Boost Amplifier and Bias
  • Stereo Single End Input With MUX
  • Mono Differential Input
  • Stereo Programmable Gain Amplifier
  • Microphone Boost Amplifier and Bias
  • Analog Performances Dynamic Range: 90 dB
  • Power-Supply Voltage1.71 V to 3.6 V for Digital I/O Section1.71 V to 3.6 V for Digital Core Section2.4 V to 3.6 V for Analog Section
  • 1.71 V to 3.6 V for Digital I/O Section
  • 1.71 V to 3.6 V for Digital Core Section
  • 2.4 V to 3.6 V for Analog Section
  • Low Power Dissipation:13 mW in Record, 1.8/2.4 V, 48 kHz, Stereo5.3 mW in Record, 1.8/2.4 V, 8 kHz, Mono3.3 µW in All Power Down
  • 13 mW in Record, 1.8/2.4 V, 48 kHz, Stereo
  • 5.3 mW in Record, 1.8/2.4 V, 8 kHz, Mono
  • 3.3 µW in All Power Down
  • Sampling Frequency: 5 kHz to 50 kHz
  • Auto Level Control for Recording
  • Operation by Single Clock Input Without PLL
  • System Clock: Common Audio Clock (256 fS/384 fS), 12/24, 13/26, 13.5/27, 19.2/38.4, 19.68/39.36 MHz
  • 2 (I2C) or 3 (SPI) Wire Serial Control
  • Programmable Function by Register Control:Digital Soft MutePower Up/Down Control for Each Module30-dB to -12-dB Gain for Analog Inputs0/12/20-dB Boost for Microphone InputParameter Settings for ALCThree-Band Tone Control and 3D SoundHigh-Pass Filter and Two-Stage Notch Filter
  • Digital Soft Mute
  • Power Up/Down Control for Each Module
  • 30-dB to -12-dB Gain for Analog Inputs
  • 0/12/20-dB Boost for Microphone Input
  • Parameter Settings for ALC
  • Three-Band Tone Control and 3D Sound
  • High-Pass Filter and Two-Stage Notch Filter
  • Pop Noise Reduction Circuit
  • Package: 24-QFN (4 mm × 5 mm)24-DSBGA (2.49 mm × 3.49 mm)
  • 24-QFN (4 mm × 5 mm)
  • 24-DSBGA (2.49 mm × 3.49 mm)
  • Operation Temperature Range: -40°C to 85°C
  • APPLICATIONSPortable Audio Player, Cellular PhoneVideo Camcorder, Movie Digital Still CameraPMP/DMB, Voice Recorder
  • Portable Audio Player, Cellular Phone
  • Video Camcorder, Movie Digital Still Camera
  • PMP/DMB, Voice Recorder

产品概述

The PCM1870 is a low-power stereo ADC designed for portable digital audio applications, with line-input amplifier, boost amplifier, microphone bias, programmable gain control, sound effects, and auto level control (ALC). It is available in 24-QFN (4-mm × 5-mm) and 24-DSBGA (2.49-mm × 3.49-mm) packages to save footprint. The PCM1870 accepts right-justified, left-justified, I2S, and DSP formats, providing easy interfacing to audio DSP and encoder chips. Sampling rates up to 50 kHz are supported. The user-programmable functions are accessible through a 2- or 3-wire serial control port.
查看全部

PCM1870RHFT 数据手册

数据手册 说明 数量 操作
PCM1870RHFT

ADC, Audio 16 bit 5k ~ 50k I2C, Serial, SPI? 24-VQFN (5x4)

 54页,1.16M 查看
