PCM1804S1IDBRQ1

Texas Instruments ADC/DAC - 特殊用途

更新日期：2024-04-01

PCM1804S1IDBRQ1

Texas Instruments ADC/DAC - 特殊用途

产品简介：具有差动输入的汽车类 112dB SNR 立体声 ADC

查看详情

PCM1804S1IDBRQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

PCM1804S1IDBRQ1 中文资料属性参数

  • 现有数量：0现货查看交期
  • 价格：2,000 : ￥31.64856卷带（TR）
  • 系列：Automotive, AEC-Q100
  • 包装：卷带（TR）剪切带（CT）? 得捷定制卷带
  • 产品状态：在售
  • 类型：ADC，音频
  • 通道数：2
  • 分辨率（位）：24 b
  • 采样率（每秒）：192k
  • 数据接口：I2S
  • 供电电压源：模拟和数字
  • 电压 - 供电：3V ~ 3.6V，4.75V ~ 5.25V
  • 工作温度：-10°C ~ 70°C
  • 安装类型：表面贴装型
  • 封装/外壳：28-SSOP（0.209"，5.30mm 宽）
  • 供应商器件封装：28-SSOP

产品特性

  • Qualified for Automotive Applications
  • AEC-Q100 Test Guidance With the Following Results: Device Temperature Grade 3: –40°C to 85°C Ambient Operating Temperature Range Device HBM ESD Classification Level H2 Device CDM ESD Classification Level C3B
  • Device Temperature Grade 3: –40°C to 85°C Ambient Operating Temperature Range
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C3B
  • 24-Bit Delta-Sigma Stereo A/D Converter
  • High Performance: Dynamic Range: 112 dB (Typical) SNR: 111 dB (Typical) THD+N: –102 dB (Typical)
  • Dynamic Range: 112 dB (Typical)
  • SNR: 111 dB (Typical)
  • THD+N: –102 dB (Typical)
  • High-Performance Linear Phase Antialias Digital Filter: Pass-Band Ripple: ±0.005 dB Stop-Band Attenuation: –100 dB
  • Pass-Band Ripple: ±0.005 dB
  • Stop-Band Attenuation: –100 dB
  • Fully Differential Analog Input: ±2.5 V
  • Audio Interface: Master- or Slave-Mode Selectable
  • Data Formats: Left-Justified, I2S, Standard 24-Bit, and DSD
  • Function: Peak Detection High-Pass Filter (HPF): –3 dB at 1 Hz, fS = 48 kHz
  • Peak Detection
  • High-Pass Filter (HPF): –3 dB at 1 Hz, fS = 48 kHz
  • Sampling Rate up to 192 kHz
  • System Clock: 128 fS, 256 fS, 384 fS, 512 fS, or 768 fS
  • Dual Power Supplies: 5 V for Analog 3.3 V for Digital
  • 5 V for Analog
  • 3.3 V for Digital
  • Power Dissipation: 225 mW
  • Small 28-Pin SSOP
  • DSD Output: 1 Bit, 64 fS

产品概述

The PCM1804-Q1 device is a high-performance, single-chip stereo A/D converter with fully differential analog voltage input which uses a precision delta-sigma modulator and includes a linear-phase antialias digital filter and high-pass filter (HPF) that removes DC offset from the input signal. The PCM1804-Q1 device is suitable for a wide variety of mid- to high-grade consumer and professional applications, where excellent performance and 5-V analog supply and 3.3-V digital power-supply operation are required. The PCM1804-Q1 device can achieve both PCM audio and DSD format due to the precision delta-sigma modulator. The PCM1804-Q1 device is fabricated using an advanced CMOS process and is available in a small 28-pin SSOP package.
查看全部

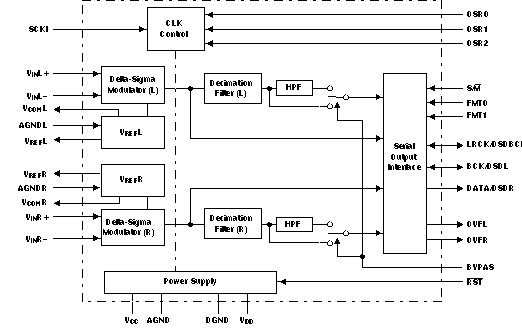

PCM1804S1IDBRQ1 电路图

PCM1804S1IDBRQ1 电路图

PCM1804S1IDBRQ1 电路图
