MSP430L092SPWR

Texas Instruments 嵌入式 - 微控制器，
  • 封装：14-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.14751-$2.87

更新日期：2024-04-01

MSP430L092SPWR

Texas Instruments 嵌入式 - 微控制器，

产品简介：具有 2KB ROM、2KB SRAM、8 位 ADC、8 位 DAC、比较器、计时器的 4MHz MCU

查看详情
  • 封装：14-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.14751-$2.87

MSP430L092SPWR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

MSP430L092SPWR 中文资料属性参数

  • 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsMSP430L092 IntroductionPortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
  • 特色产品：MSP430L092 0.9V MCU
  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：嵌入式 - 微控制器，
  • 系列：MSP430L092
  • 核心处理器：RISC
  • 芯体尺寸：16-位
  • 速度：4MHz
  • 连通性：-
  • 外围设备：欠压检测/复位，POR，PWM，WDT
  • 输入/输出数：11
  • 程序存储器容量：-
  • 程序存储器类型：ROMless
  • EEPROM 大小：-
  • RAM 容量：2K x 8
  • 电压 - 电源 (Vcc/Vdd)：0.9 V ~ 1.65 V
  • 数据转换器：A/D 8x8b; D/A 1x8b
  • 振荡器型：内部
  • 工作温度：0°C ~ 50°C
  • 封装/外壳：14-TSSOP（0.173"，4.40mm 宽）
  • 包装：®
  • 其它名称：296-27759-6

产品特性

  • Ultra-Low Supply Voltage (ULV) Range 0.9 V to 1.5 V (1 MHz) 1.5 V to 1.65 V (4 MHz)
  • 0.9 V to 1.5 V (1 MHz)
  • 1.5 V to 1.65 V (4 MHz)
  • Low Power Consumption Active Mode (AM): 45 µA/MHz (1.3 V) Standby Mode (LPM3, WDT_A Mode): 6 µA Off Mode (LPM4): 3 µA
  • Active Mode (AM): 45 µA/MHz (1.3 V)
  • Standby Mode (LPM3, WDT_A Mode): 6 µA
  • Off Mode (LPM4): 3 µA
  • Wake-Up From LPMx in Less Than 5 µs
  • 16-Bit RISC Architecture Extended Instructions Up to 4-MHz System Clock
  • Extended Instructions
  • Up to 4-MHz System Clock
  • Compact Clock System 1-MHz Internal Trimmable High-Frequency Clock 20-kHz Internal Low-Frequency Clock Source External Clock Input
  • 1-MHz Internal Trimmable High-Frequency Clock
  • 20-kHz Internal Low-Frequency Clock Source
  • External Clock Input
  • 16-Bit Timer0_A3 With Three Capture/Compare Registers
  • 16-Bit Timer1_A3 With Three Capture/Compare Registers
  • ULV Analog Pool Modes 8-Bit Analog-to-Digital Converter (ADC) 8-Bit Digital-to-Analog Converter (DAC) Programmable Comparator (COMP) Supply Voltage Monitor (SVM) Temperature Sensor Internal Reference Voltage Source
  • 8-Bit Analog-to-Digital Converter (ADC)
  • 8-Bit Digital-to-Analog Converter (DAC)
  • Programmable Comparator (COMP)
  • Supply Voltage Monitor (SVM)
  • Temperature Sensor
  • Internal Reference Voltage Source
  • ULV Port Logic VOL Better Than 0.15 V at 2.5 mA VOH Better Than VCC – 0.15 V at 1 mA Timer0 PWM Signal Available on All Ports Timer1 PWM Signal Available on All Ports
  • VOL Better Than 0.15 V at 2.5 mA
  • VOH Better Than VCC – 0.15 V at 1 mA
  • Timer0 PWM Signal Available on All Ports
  • Timer1 PWM Signal Available on All Ports
  • ULV Brownout Circuit (BOR)
  • ULV RAM Retention Voltage Below BOR Level
  • 32-Bit Watchdog Timer (WDT-A)
  • Bootstrap Loader in MSP430L092 Development/Prototyping Device
  • Full Four-Wire JTAG Debug Interface
  • Family Members Include MSP430C091 1KB ROM Memory 128 Bytes RAM + 96 Bytes CRAM (Lockable) MSP430C092 2KB ROM Memory 128 Bytes RAM + 96 Bytes CRAM (Lockable) MSP430L092 2KB Loader ROM With Service Functions 2KB RAM (1792 + 128 + 96 Bytes Lockable)
  • MSP430C091 1KB ROM Memory 128 Bytes RAM + 96 Bytes CRAM (Lockable)
  • 1KB ROM Memory
  • 128 Bytes RAM + 96 Bytes CRAM (Lockable)
  • MSP430C092 2KB ROM Memory 128 Bytes RAM + 96 Bytes CRAM (Lockable)
  • 2KB ROM Memory
  • 128 Bytes RAM + 96 Bytes CRAM (Lockable)
  • MSP430L092 2KB Loader ROM With Service Functions 2KB RAM (1792 + 128 + 96 Bytes Lockable)
  • 2KB Loader ROM With Service Functions
  • 2KB RAM (1792 + 128 + 96 Bytes Lockable)
  • For Complete Module Descriptions, See the MSP430x09x Family User’s Guide (SLAU321)

产品概述

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled internal oscillators allow wake-up from low-power modes to active mode in less than 5 µs.The MSP430C09x and MSP430L092 series are microcontroller configurations with two 16-bit timers, an ultra-low-voltage 8-bit analog-to-digital (A/D) converter, an 8-bit digital-to-analog (D/A) converter, and up to 11 I/O pins.Typical applications for this device include single-cell systems requiring a full analog signal chain.
查看全部

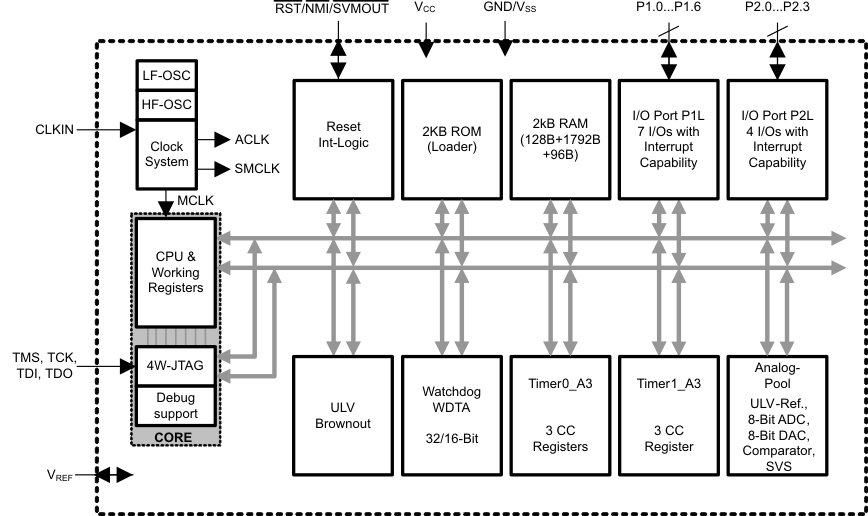

MSP430L092SPWR 电路图
