MSP430G2101IRSA16R

Texas Instruments 嵌入式 - 微控制器，
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.53551-$1.52

更新日期：2024-04-01

MSP430G2101IRSA16R

Texas Instruments 嵌入式 - 微控制器，

产品简介：具有 1KB 闪存、128B SRAM、计时器的 16MHz MCU

查看详情
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.53551-$1.52

MSP430G2101IRSA16R 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

MSP430G2101IRSA16R 中文资料属性参数

  • 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsMSP430 Value LinePortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：嵌入式 - 微控制器，
  • 系列：MSP430G2xx
  • 核心处理器：RISC
  • 芯体尺寸：16-位
  • 速度：16MHz
  • 连通性：-
  • 外围设备：欠压检测/复位，POR，PWM，WDT
  • 输入/输出数：10
  • 程序存储器容量：1KB（1K x 8）
  • 程序存储器类型：闪存
  • EEPROM 大小：-
  • RAM 容量：128 x 8
  • 电压 - 电源 (Vcc/Vdd)：1.8 V ~ 3.6 V
  • 数据转换器：-
  • 振荡器型：内部
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：16-VQFN 裸露焊盘
  • 包装：®
  • 其它名称：296-27682-6

产品特性

  • Low Supply-Voltage Range: 1.8 V to 3.6 V
  • Ultralow Power Consumption Active Mode: 220 µA at 1 MHz, 2.2 V Standby Mode: 0.5 µA Off Mode (RAM Retention): 0.1 µA
  • Active Mode: 220 µA at 1 MHz, 2.2 V
  • Standby Mode: 0.5 µA
  • Off Mode (RAM Retention): 0.1 µA
  • Five Power-Saving Modes
  • Ultrafast Wake-Up From Standby Mode in Less Than 1 µs
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
  • Basic Clock Module Configurations Internal Frequencies up to 16 MHz With One Calibrated Frequency Internal Very Low Power Low-Frequency (LF) Oscillator 32-kHz Crystal External Digital Clock Source
  • Internal Frequencies up to 16 MHz With One Calibrated Frequency
  • Internal Very Low Power Low-Frequency (LF) Oscillator
  • 32-kHz Crystal
  • External Digital Clock Source
  • 16-Bit Timer_A With Two Capture/Compare Registers
  • Brownout Detector
  • On-Chip Comparator for Analog Signal Compare Function or Slope A/D (See )
  • Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
  • On-Chip Emulation Logic With Spy-Bi-Wire Interface
  • Available in a 14-Pin Plastic Small-Outline Thin Package (TSSOP) (PW), 14-Pin Plastic Dual Inline Package (PDIP) (N), and 16-Pin QFN (RSA)

产品概述

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.The MSP430G2x01 and MSP430G2x11 series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. The MSP430G2x11 family members have a versatile analog comparator.Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.
查看全部

MSP430G2101IRSA16R 数据手册

数据手册 说明 数量 操作
MSP430G2101IRSA16R

MSP430 MSP430G2xx Microcontroller IC 16-Bit 16MHz 1KB (1K x 8) FLASH 16-QFN (4x4)

 49页,1.41M 查看

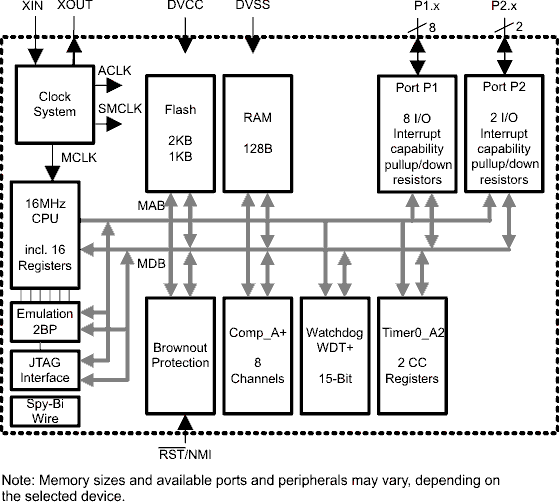

MSP430G2101IRSA16R 电路图

MSP430G2101IRSA16R 电路图

MSP430G2101IRSA16R 电路图
