MSP430F2112IRHBR

Texas Instruments 嵌入式 - 微控制器，
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.26225-$3.16

更新日期：2024-04-01

MSP430F2112IRHBR

Texas Instruments 嵌入式 - 微控制器，

产品简介：具有 2KB 闪存、256B SRAM、10 位 ADC、比较器和 I2C/SPI/UART 的 16MHz MCU

查看详情
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.26225-$3.16

MSP430F2112IRHBR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

MSP430F2112IRHBR 中文资料属性参数

  • 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsMSP430x2xx/4xx and Wireless OverviewPortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：嵌入式 - 微控制器，
  • 系列：MSP430F2xx
  • 核心处理器：RISC
  • 芯体尺寸：16-位
  • 速度：16MHz
  • 连通性：I²C，IrDA，LIN，SCI，SPI，UART/USART
  • 外围设备：欠压检测/复位，POR，PWM，WDT
  • 输入/输出数：24
  • 程序存储器容量：2KB（2K x 8 + 256B）
  • 程序存储器类型：闪存
  • EEPROM 大小：-
  • RAM 容量：256 x 8
  • 电压 - 电源 (Vcc/Vdd)：1.8 V ~ 3.6 V
  • 数据转换器：A/D 8x10b
  • 振荡器型：内部
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：32-VFQFN 裸露焊盘
  • 包装：®
  • 其它名称：296-23360-6

产品特性

  • Low Supply Voltage Range: 1.8 V to 3.6 V
  • Ultra-Low Power Consumption Active Mode: 250 µA at 1 MHz, 2.2 V Standby Mode: 0.7 µA Off Mode (RAM Retention): 0.1 µA
  • Active Mode: 250 µA at 1 MHz, 2.2 V
  • Standby Mode: 0.7 µA
  • Off Mode (RAM Retention): 0.1 µA
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
  • Basic Clock Module Configurations Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1% Internal Very-Low-Power Low-Frequency Oscillator 32-kHz Crystal High-Frequency (HF) Crystal up to 16 MHz Resonator External Digital Clock Source External Resistor
  • Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
  • Internal Very-Low-Power Low-Frequency Oscillator
  • 32-kHz Crystal
  • High-Frequency (HF) Crystal up to 16 MHz
  • Resonator
  • External Digital Clock Source
  • External Resistor
  • 16-Bit Timer0_A3 With Three Capture/Compare Registers
  • 16-Bit Timer1_A2 With Two Capture/Compare Registers
  • On-Chip Comparator for Analog Signal Compare Function or Slope Analog-to-Digital (A/D) Conversion
  • 10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller
  • Universal Serial Communication Interface Enhanced UART Supporting Auto-Baudrate Detection (LIN) IrDA Encoder and Decoder Synchronous SPI I2C™
  • Enhanced UART Supporting Auto-Baudrate Detection (LIN)
  • IrDA Encoder and Decoder
  • Synchronous SPI
  • I2C™
  • Brownout Detector
  • Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
  • Bootstrap Loader
  • On-Chip Emulation Module
  • Family Members Include: MSP430F2132: 8KB + 256B Flash Memory, 512B RAM MSP430F2122: 4KB + 256B Flash Memory, 512B RAM MSP430F2112: 2KB + 256B Flash Memory, 256B RAM
  • MSP430F2132: 8KB + 256B Flash Memory, 512B RAM
  • MSP430F2122: 4KB + 256B Flash Memory, 512B RAM
  • MSP430F2112: 2KB + 256B Flash Memory, 256B RAM
  • Available in 28-Pin TSSOP (PW) and 32-Pin QFN (RHB or RTV) Packages
  • For Complete Module Descriptions, See the MSP430x2xx Family User's Guide, Literature Number SLAU144

产品概述

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.The MSP430F21x2 series is an ultra-low-power microcontroller with two built-in 16-bit timers, a fast 10-bit A/D converter with integrated reference and a data transfer controller (DTC), a comparator, built-in communication capability using the universal serial communication interface, and up to 24 I/O pins.
查看全部

MSP430F2112IRHBR 数据手册

数据手册 说明 数量 操作
MSP430F2112IRHBR

MSP430 MSP430F2xx Microcontroller IC 16-Bit 16MHz 2KB (2K x 8 + 256B) FLASH 32-VQFN (5x5)

 80页,1.64M 查看

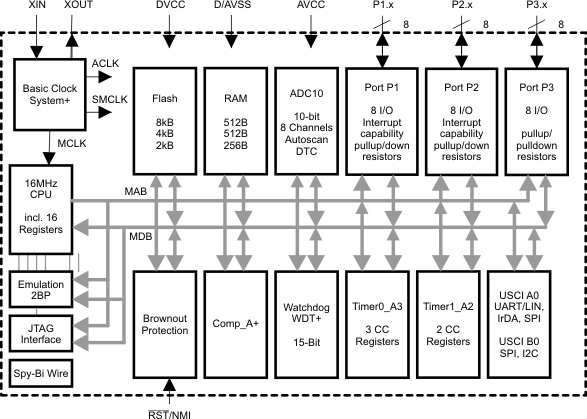

MSP430F2112IRHBR 电路图

MSP430F2112IRHBR 电路图

MSP430F2112IRHBR 电路图
