- 参考价格：￥15.18-￥20.84
更新日期：2024-04-01
MM5453VX 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
MM5453VX 中文资料属性参数
- 制造商：National Semiconductor (TI)
- 封装：Reel
- 工厂包装数量：500
产品特性
- Serial Data Input
- No Load Signal Required
- DATA ENABLE (MM5452)
- Wide Power Supply Operation
- TTL Compatibility
- 32 or 33 Outputs
- Alphanumeric and Bar Graph Capability
- Cascaded Operation Capability
产品概述
The MM5452 is a monolithic integrated circuit utilizing CMOS metal gate, low threshold
enhancement mode devices. It is available in a 40-pin PDIP package. The chip can drive up to 32
segments of LCD and can be paralleled to increase this number. The chip is capable of driving a
4½-digit 7-segment display with minimal interface between the display and the data
source.The MM5452 stores display data in latches after it is clocked in, and holds the data
until new display data is received.

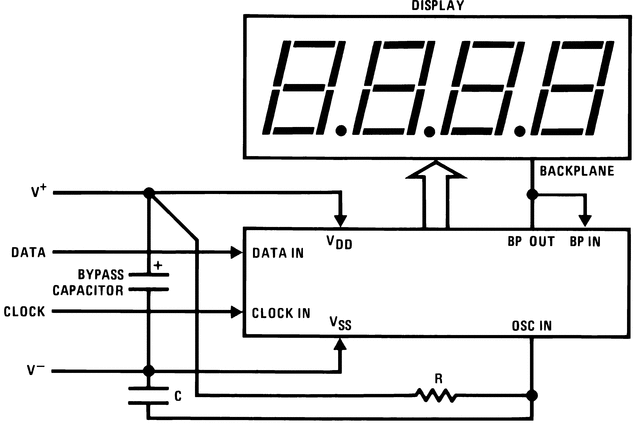

MM5453VX 电路图
MM5453VX 电路图
