- 参考价格：RMB204.50-RMB205.00
更新日期：2024-04-01
LT1013AMJG 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
标准封装
23+ -
15000
-
上海市
-
-
-
优势库存代理全新现货特价热卖
LT1013AMJG 中文资料属性参数
- 典型单电源电压：12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V
- 典型双电源电压：±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V
- 典型电压增益：120 dB
- 典型转换速率：0.4V/μs
- 典型输入电压噪声密度：24nV/√Hz
- 安装类型：通孔
- 宽度：6.67mm
- 封装类型：CDIP
- 尺寸：9.6 x 6.67 x 4.57mm
- 引脚数目：8
- 最低工作温度：-55 °C
- 最高工作温度：+125 °C
- 每片芯片通道数目：2
- 电源类型：双，单
- 长度：9.6mm
- 高度：4.57mm
产品特性
- Single-Supply Operation Input Voltage Range Extends to Ground Output Swings to Ground While Sinking Current
- Input Voltage Range Extends to Ground
- Output Swings to Ground While Sinking Current
- Phase Reversal Protection
- Input Offset Voltage 150 µV Maximum at 25°C for LT1013AM
- 150 µV Maximum at 25°C for LT1013AM
- Offset-Voltage Temperature Coefficient 2 µV/°C Maximum for LT1013AM
- 2 µV/°C Maximum for LT1013AM
- Input Offset Current 0.8 nA Maximum at 25°C for LT1013AM
- 0.8 nA Maximum at 25°C for LT1013AM
- High Gain 1.5 V/µV Minimum (RL = 2 kΩ) for LT1013AM 0.8 V/µV Minimum (RL = 600 kΩ) for LT1013AM
- 1.5 V/µV Minimum (RL = 2 kΩ) for LT1013AM
- 0.8 V/µV Minimum (RL = 600 kΩ) for LT1013AM
- Low Supply Current 0.5 mA Maximum at TA = 25°C for LT1013AM
- 0.5 mA Maximum at TA = 25°C for LT1013AM
- Low Peak-to-Peak Noise Voltage 0.55 µV Typical
- 0.55 µV Typical
- Low Current Noise 0.07 pA/√Hz Typical
- 0.07 pA/√Hz Typical
- For Die Only Option, See LT1013-DIE
产品概述
The LT1013x devices are dual precision operational amplifiers, featuring high gain, low
supply current, low noise, and low-offset-voltage temperature coefficient.The LT1013x devices can be operated from a single 5-V power supply; the common-mode input
voltage range includes ground, and the output can also swing to within a few millivolts of ground.
Crossover distortion is eliminated. The LT1013x can be operated with both dual ± 15-V and single
5-V supplies.The LT1013C and LT1013D are characterized for operation from 0°C to 70°C. The LT1013DI is
characterized for operation from –40°C to 105°C. The LT1013M, LT1013AM, and LT1013DM are
characterized for operation over the full military temperature range of –55°C to 125°C.
LT1013AMJG 数据手册
| 数据手册 | 说明 | 数量 | 操作 |
|---|---|---|---|
 LT1013AMJG
|
DUAL PRECISION OPERATIONAL AMPLIFIERS |
30 Pages页,547K | 查看 |
|
LT1013AMJGB
|
DUAL PRECISION OPERATIONAL AMPLIFIERS |
30 Pages页,547K | 查看 |

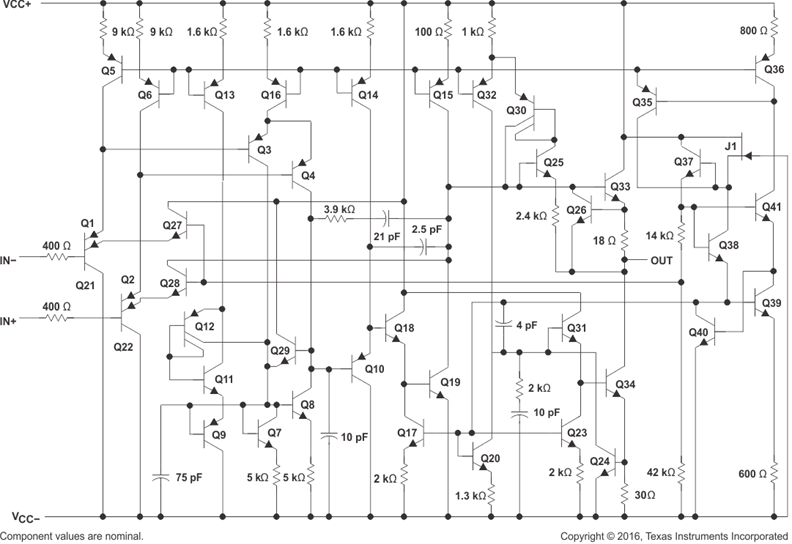

LT1013AMJG 电路图
LT1013AMJG 电路图
