LP3906SQ-VPFP/NOPB
电源管理 IC- 参考价格：￥15.39-￥36.23
更新日期：2024-04-01 00:04:00
LP3906SQ-VPFP/NOPB 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
WQFN-24(4x5)
2022+ -
12000
-
上海市
-
-
-
原装可开发票
-
TI
-
原厂原装
2318+ -
9200
-
合肥
-
-
-
科大讯飞战略投资企业
LP3906SQ-VPFP/NOPB 中文资料属性参数
- 制造商：National Semiconductor (TI)
- 最大输入电压：5.5 V
- 输出电压：1.5 V, 2.5 V
- 回动电压（最大值）：200 mV
- 输出电流：300 mA
- 负载调节：0.011 %/mA
- 输出端数量：2
- 输出类型：Fixed
- 最大工作温度：+ 85 C
- 安装风格：SMD/SMT
- 封装 / 箱体：WFQFN-24 EP
- Input Voltage MIN：1.74 V
- 线路调整率：0.15 %/V
- 最小工作温度：- 40 C
- 封装：Reel
- PSRR / 脉动抑制（典型值）：45 dB at 10 KHz
- 工厂包装数量：1000
- 电压调节准确度：3 %
产品特性
- Compatible with Advanced Applications Processors and FPGAs
- 2 LDOs for Powering Internal Processor Functions and I/Os
- High Speed Serial Interface for Independent Control of Device Functions and Settings
- Precision Internal Reference
- Thermal Overload Protection
- Current Overload Protection
- 24-lead 5 × 4 × 0.8 mm WQFN Package
- Software Programmable Regulators
- DC/DC Converter (Buck)1.5A Output CurrentProgrammable VOUT from:Buck1 : 0.8V–2.0VBuck2 : 1.0V–3.5VUp to 96% Efficiency2 MHz PWM Switching Frequency ±3% Output Voltage AccuracyAutomatic Soft Start
- 1.5A Output Current
- Programmable VOUT from:Buck1 : 0.8V–2.0VBuck2 : 1.0V–3.5V
- Up to 96% Efficiency
- 2 MHz PWM Switching Frequency
- ±3% Output Voltage Accuracy
- Automatic Soft Start
- Linear Regulators (LDO)Programmable VOUT of 1.0V–3.5V ±3% Output Voltage Accuracy300 mA Output Currents25 mW (Typ) Dropout
- Programmable VOUT of 1.0V–3.5V
- ±3% Output Voltage Accuracy
- 300 mA Output Currents
- 25 mW (Typ) Dropout
产品概述
The LP3906 is a multi-function, programmable Power Management Unit, optimized for low
power FPGAs, Microprocessors and DSPs. This device integrates two highly efficient 1.5A Step-Down DC/DC converters with dynamic
voltage management (DVM), two 300mA Linear Regulators and a 400kHz I2C
compatible interface to allow a host controller access to the internal control registers of the
LP3906. The LP3906 additionally features programmable power-on sequencing and is offered in a tiny
5 x 4 x 0.8mm WQFN-24 pin package.

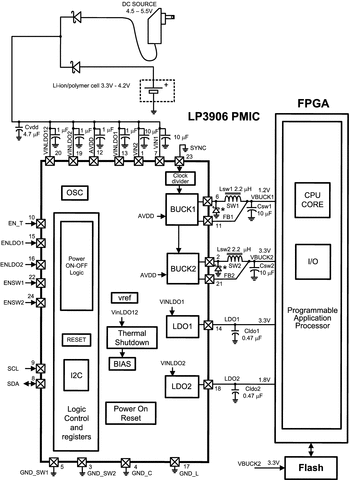

LP3906SQ-VPFP/NOPB 电路图
LP3906SQ-VPFP/NOPB 电路图
