- 参考价格：￥3.81-￥3.88
更新日期：2024-04-01 00:04:00
LP2995LQ 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
NS
-
QFN
23+ -
5800
-
上海市
-
-
-
进口原装现货，杜绝假货。
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI
-
原厂原装
2318+ -
9200
-
合肥
-
-
-
科大讯飞战略投资企业
LP2995LQ 中文资料属性参数
- 制造商：National Semiconductor (TI)
- 最大输入电压：5.5 V
- 输出电流：1.5 A
- 负载调节：0.5 %
- 输出端数量：1
- 最大工作温度：+ 125 C
- 安装风格：SMD/SMT
- 封装 / 箱体：LLP EP
- 最小工作温度：0 C
- 封装：Reel
- 参考电压：1.235 V
产品特性
- Low Output Voltage Offset
- Works with +5v, +3.3v and 2.5v Rails
- Source and Sink Current
- Low External Component Count
- No External Resistors Required
- Linear Topology
- Available in SOIC-8, SO PowerPAD-8 or WQFN-16 Packages
- Low Cost and Easy to Use
产品概述
The LP2995 linear regulator is designed to meet the JEDEC SSTL-2 and SSTL-3
specifications for termination of DDR-SDRAM. The device contains a high-speed operational amplifier
to provide excellent response to load transients. The output stage prevents shoot through while
delivering 1.5A continuous current and transient peaks up to 3A in the application as required for
DDR-SDRAM termination. The LP2995 also incorporates a VSENSE pin to provide
superior load regulation and a VREF output as a reference for the chipset
and DDR DIMMS.
LP2995LQ 数据手册
LP2995LQ

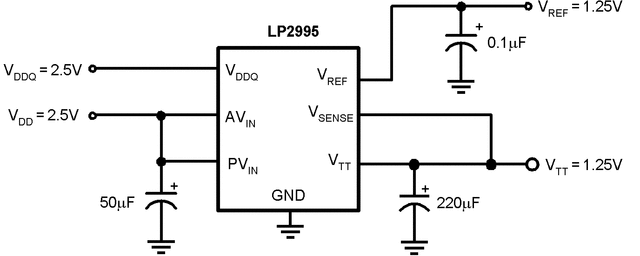

LP2995LQ 电路图
LP2995LQ 电路图
