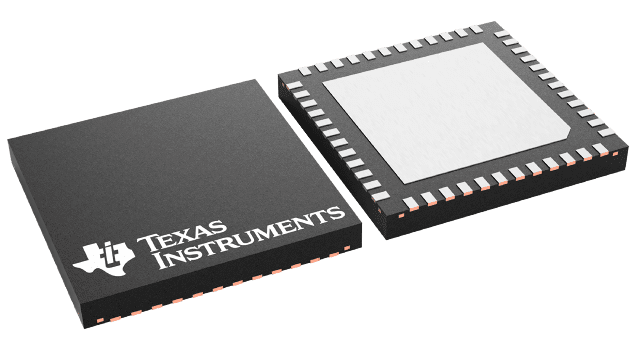

LMK04110SQE/NOPB

时钟及计时器 IC（模拟）
  • 参考价格：￥46.58-￥49.96

更新日期：2024-04-01

LMK04110SQE/NOPB

时钟及计时器 IC（模拟）

产品简介：具有集成式 1185MHz 至 1296MHz VCO 的抖动消除器：5 路输出用于 2VPEC/LVPEC

查看详情
  • 参考价格：￥46.58-￥49.96

LMK04110SQE/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LMK04110SQE/NOPB 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 封装：Reel
  • 工厂包装数量：250

产品特性

  • Cascaded PLLatinum PLL Architecture PLL1Redundant Reference Inputs Loss of Signal DetectionAutomatic and Manual Selection of Reference Clock Input PLL2Phase Detector Rate up to 100 MHzInput Frequency-DoublerIntegrated VCO
  • PLL1Redundant Reference Inputs Loss of Signal DetectionAutomatic and Manual Selection of Reference Clock Input
  • PLL2Phase Detector Rate up to 100 MHzInput Frequency-DoublerIntegrated VCO
  • OutputsLVPECL/2VPECL, LVDS, and LVCMOS Formats Support Clock Rates up to 1080 MHz Five Dedicated Channel Divider Blocks Common Output Frequencies Supported: 30.72 MHz, 61.44 MHz, 62.5 MHz, 74.25 MHz, 75 MHz, 77.76 MHz, 100 MHz, 106.25 MHz, 125 MHz, 122.88 MHz, 150 MHz, 155.52 MHz, 156.25 MHz, 159.375 MHz, 187.5 MHz, 200 MHz, 212.5 MHz, 245.76 MHz, 250 MHz, 311.04 MHz, 312.5 MHz, 368.64 MHz, 491.52 MHz, 622.08 MHz, 625 MHz, 983.04 MHz
  • LVPECL/2VPECL, LVDS, and LVCMOS Formats
  • Support Clock Rates up to 1080 MHz
  • Five Dedicated Channel Divider Blocks
  • Common Output Frequencies Supported: 30.72 MHz, 61.44 MHz, 62.5 MHz, 74.25 MHz, 75 MHz, 77.76 MHz, 100 MHz, 106.25 MHz, 125 MHz, 122.88 MHz, 150 MHz, 155.52 MHz, 156.25 MHz, 159.375 MHz, 187.5 MHz, 200 MHz, 212.5 MHz, 245.76 MHz, 250 MHz, 311.04 MHz, 312.5 MHz, 368.64 MHz, 491.52 MHz, 622.08 MHz, 625 MHz, 983.04 MHz
  • MICROWIRE (SPI) Programming Interface
  • Industrial Temperature Range: –40 to 85 °C
  • 3.15 V to 3.45 V Operation
  • Package: 48 Pin WQFN (7.0 × 7.0 × 0.8 mm)

产品概述

The LMK04100 family of precision clock conditioners provides jitter cleaning, clock multiplication and distribution without the need for high-performance VCXO modules.When connected to a recovered system reference clock and a VCXO, the device generates 5 low jitter clocks in LVCMOS, LVDS, or LVPECL formats.
查看全部

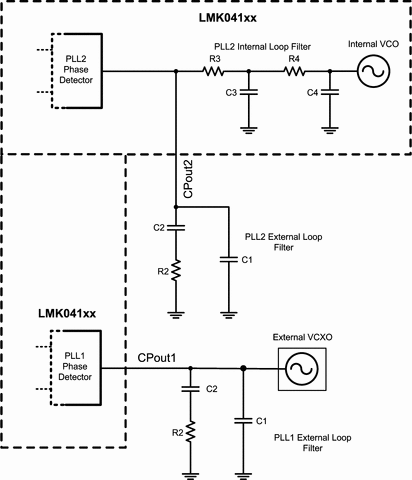

LMK04110SQE/NOPB 电路图
