LMH6720MF/NOPB
放大器 IC- 参考价格:¥11.04-¥9.66
更新日期:2024-04-01
LMH6720MF/NOPB 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-

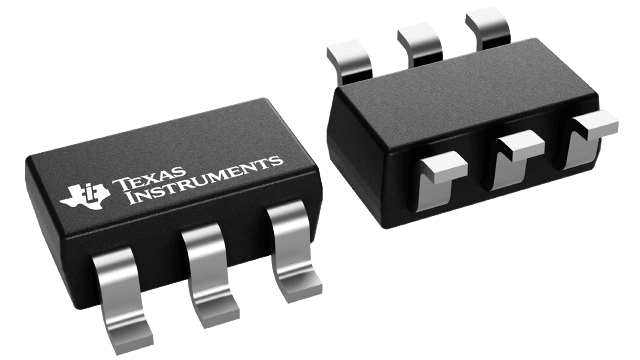

SOT-23-6
2022+ -
12000
-
上海市
-
-
-
原装可开发票
LMH6720MF/NOPB 中文资料属性参数
- 制造商:National Semiconductor (TI)
- 通道数量:1
- 共模抑制比(最小值):48 dB
- 输入补偿电压:6 mV at +/- 5 V
- 工作电源电压:9 V, 12 V
- 安装风格:SMD/SMT
- 封装 / 箱体:SOT-23
- 转换速度:1800 V/us at +/- 5 V
- 关闭:Yes
- 最大工作温度:+ 85 C
- 封装:Reel
- 最小工作温度:- 40 C
- 工厂包装数量:1000
- 电源电流:8 mA at +/- 5 V
- Supply Voltage - Max:12.5 V
- Supply Voltage - Min:8 V
- 技术:BiCOM
产品特性
- 400MHz (AV = +2V/V, VOUT = 500mVPP) −3dB BW
- 250MHz (AV = +2V/V, VOUT = 2VPP) -3dB BW
- 0.1dB Gain Flatness to 120MHz
- Low Power: 5.6mA
- TTL Compatible Shutdown Pin (LMH6720)
- Very Low Diff. Gain, Phase: 0.01%, 0.01° (LMH6714)
- −58 HD2/ −70 HD3 at 20MHz
- Fast Slew Rate: 1800V/μs
- Low Shutdown Current: 500uA (LMH6720)
- 11ns Turn on Time (LMH6720)
- 7ns Shutdown Time (LMH6720)
- Unity Gain Stable
- Improved Replacement for CLC400,401,402,404,406 and 446 (LMH6714)
- Improved Replacement for CLC405 (LMH6720)
- Improved Replacement for CLC415 (LMH6722)
- LMH6722QSD is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow
产品概述
The LMH6714/LMH6720/LMH6722 series combine Texas Instruments' VIP10 high speed
complementary bipolar process with Texas Instruments' current feedback topology to produce a very
high speed op amp. These amplifiers provide a 400MHz small signal bandwidth at a gain of +2V/V and
a 1800V/μs slew rate while consuming only 5.6mA from ±5V supplies.The LMH6714/LMH6720/LMH6722 series offer exceptional video performance with its 0.01% and
0.01° differential gain and phase errors for NTSC and PAL video signals while driving a back
terminated 75Ω load. They also offer a flat gain response of 0.1dB to 120MHz. Additionally, they
can deliver 70mA continuous output current. This level of performance makes them an ideal op amp
for broadcast quality video systems.The LMH6714/LMH6720/LMH6722's small packages (SOIC, SOT-23 and WSON), low power
requirement, low noise and distortion allow the LMH6714/LMH6720/LMH6722 to serve portable RF
applications. The high impedance state during shutdown makes the LMH6720 suitable for use in
multiplexing multiple high speed signals onto a shared transmission line. The LMH6720 is also ideal
for portable applications where current draw can be reduced with the shutdown function.
LMH6720MF/NOPB 数据手册
数据手册 | 说明 | 数量 | 操作 |
---|---|---|---|
![]() |
IC OPAMP VIDEO SNGL W/SD SOT23-6 |
29页,1.45M | 查看 |
LMH6720MF/NOPB 电路图

LMH6720MF/NOPB 电路图
