LMH6628MA/NOPB
放大器 IC- 参考价格:¥10.97-¥22.01
更新日期:2024-04-01
LMH6628MA/NOPB 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
SOIC-8_150mil
2022+ -
4
-
上海市
-
-
-
原装可开发票
LMH6628MA/NOPB 中文资料属性参数
- 制造商:National Semiconductor (TI)
- 通道数量:2
- 共模抑制比(最小值):57 dB
- 输入补偿电压:2 mV at +/- 5 V
- 工作电源电压:9 V
- 安装风格:SMD/SMT
- 封装 / 箱体:SOIC-8 Narrow
- 转换速度:550 V/us at +/- 5 V
- 关闭:No
- 最大工作温度:+ 85 C
- 封装:Tube
- 最小工作温度:- 40 C
- 工厂包装数量:95
- 电源电流:24 mA at +/- 5 V
- Supply Voltage - Max:12 V
- Supply Voltage - Min:5 V
- 技术:BiCOM
- 电压增益 dB:63 dB
产品特性
- Wide Unity Gain Bandwidth: 300MHz
- Low Noise: 2nV/√hZ
- Low Distortion: −65/−74dBc (10MHz)
- Settling Time: 12ns to 0.1%
- Wide Supply Voltage Range: ±2.5V to ±6V
- High Output Current: ±85mA
- Improved Replacement for CLC428
产品概述
The Texas Instruments LMH6628 is a high speed dual op amp that offers a traditional
voltage feedback topology featuring unity gain stability and slew enhanced circuitry. The LMH6628's
low noise and very low harmonic distortion combine to form a wide dynamic range op amp that
operates from a single (5V to 12V) or dual (±5V) power supply.Each of the LMH6628's closely matched channels provides a 300MHz unity gain bandwidth and
low input voltage noise density (2nV/√hZ). Low 2nd/3rd harmonic distortion
(−65/−74dBc at 10MHz) make the LMH6628 a perfect wide dynamic range amplifier for matched I/Q
channels.With its fast and accurate settling (12ns to 0.1%), the LMH6628 is also an excellent
choice for wide dynamic range, anti-aliasing filters to buffer the inputs of hi resolution
analog-to-digital converters. Combining the LMH6628's two tightly matched amplifiers in a single
8-pin SOIC package reduces cost and board space for many composite amplifier applications such as
active filters, differential line drivers/receivers, fast peak detectors and instrumentation
amplifiers.The LMH6628 is fabricated using TI’s VIP10 complimentary bipolar process.To reduce design times and assist in board layout, the LMH6628 is supported by an
evaluation board (CLC730036).
LMH6628MA/NOPB 数据手册
数据手册 | 说明 | 数量 | 操作 |
---|---|---|---|
![]() |
Operational Amplifier (Op-Amp) IC; No. of Amplifiers:2; Slew Rate:550V/μs; No. of Pins:8; Bandwidth:300MHz; Leaded Process Compatible:Yes; Offset Voltage:2mV; Package/Case:8-SOIC; Peak Reflow Compatible (260 C):Yes ;RoHS Compliant: Yes |
11页,895K | 查看 |
![]() |
Voltage Feedback Amplifier 2 Circuit 8-SOIC |
21页,1.03M | 查看 |

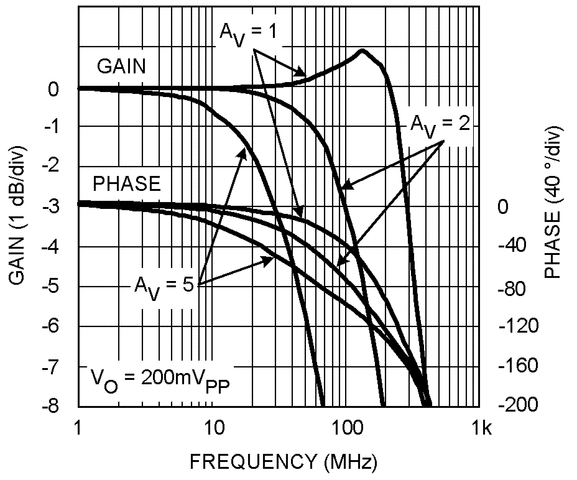

LMH6628MA/NOPB 电路图
