LMC7660IN/NOPB

电源管理 IC
  • 参考价格:¥2.47-¥6.76

更新日期:2024-04-01

LMC7660IN/NOPB

电源管理 IC

产品简介:1.5V 至 10V 开关电容器电压转换器

查看详情
  • 参考价格:¥2.47-¥6.76

LMC7660IN/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LMC7660IN/NOPB 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 功能:Inverting
  • 输出电压:- 1.5 V to - 10 V
  • 最大工作温度:+ 85 C
  • 封装 / 箱体:MDIP
  • 封装:Tube
  • 最小工作温度:- 40 C
  • 安装风格:Through Hole
  • 工厂包装数量:40

产品特性

  • Operation Over Full Temperature and Voltage Range without an External Diode
  • Low Supply Current, 200 μA Max
  • Pin-for-pin Replacement for the 7660
  • Wide Operating Range 1.5V to 10V
  • 97% Voltage Conversion Efficiency
  • 95% Power Conversion Efficiency
  • Easy to Use, Only 2 External Components
  • Extended Temperature Range

产品概述

The LMC7660 is a CMOS voltage converter capable of converting a positive voltage in the range of +1.5V to +10V to the corresponding negative voltage of −1.5V to −10V. The LMC7660 is a pin-for-pin replacement for the industry-standard 7660. The converter features: operation over full temperature and voltage range without need for an external diode, low quiescent current, and high power efficiency.The LMC7660 uses its built-in oscillator to switch 4 power MOS switches and charge two inexpensive electrolytic capacitors.

LMC7660IN/NOPB 数据手册

数据手册 说明 数量 操作
LMC7660IN/NOPB

CONVERTER, DC/DC CHARGE PUMP; Voltage Regulator Type:Inverting; Voltage, Input Max:10V; Voltage, Output Max:-10V; Voltage, Output Adjustable Max:-10V; Voltage, Output Adjustable Min:-1.5V; Frequency:10kHz; Voltage, Supply Min:1.5V; Voltage, Supply Max:10V; Termination Type:Through Hole; Case Style:DIP; No. of Pins:8; Operating Temperature Range:-40°C to +85°C

12页,759K 查看

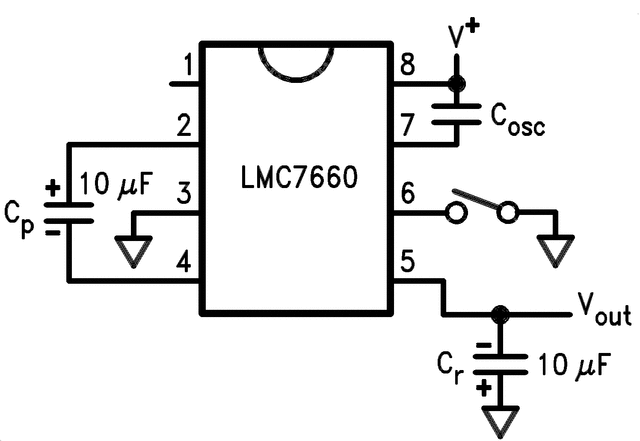

LMC7660IN/NOPB 电路图
