LM96000CIMTX

Texas Instruments 板上安装温度传感器
  • 参考价格：￥14.70-￥15.32

更新日期：2024-04-01 00:04:00

暂无图片

LM96000CIMTX

Texas Instruments 板上安装温度传感器

产品简介：硬件监控器，带风扇控制功能和 6 个电源电压监控器

查看详情
  • 参考价格：￥14.70-￥15.32

LM96000CIMTX 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM96000CIMTX 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 输出类型：Digital
  • 准确性：+/- 2.5 C , +/- 1 C
  • 数字输出 - 总线接口：Serial (2-Wire)
  • 最大工作温度：+ 85 C
  • 最小工作温度：0 C
  • 封装：Reel
  • 描述/功能：Temperature Sensor
  • 数字输出 - 位数：8 bit
  • 工作电源电压：3 V to 3.6 V
  • 工厂包装数量：2500

产品特性

  • 2-wire, SMBus 2.0 Compliant, Serial Digital Interface
  • 8-bit ΣΔ ADC
  • Monitors VCCP, 2.5V, 3.3 VSBY, 5.0V, and 12V Motherboard/processor Supplies
  • Monitors 2 Remote Thermal Diodes
  • Programmable Autonomous Fan Control Based on Temperature Readings
  • Noise Filtering of Temperature Reading for Fan Control
  • 1.0°C Digital Temperature Sensor Resolution
  • 3 PWM Fan Speed Control Outputs
  • Provides High and Low PWM Frequency Ranges
  • 4 Fan Tachometer Inputs
  • Monitors 5 VID Control Lines
  • 24-pin TSSOP Package
  • XOR-tree Test Mode
  • Voltage Measurement Accuracy ±2% FS (max)
  • Resolution 8-bits, 1°C
  • Temperature Sensor Accuracy ±3°C (max)
  • Temperature Range LM96000 Operational 0°C to +85°CRemote Temp Accuracy 0°C to +125°C
  • LM96000 Operational 0°C to +85°C
  • Remote Temp Accuracy 0°C to +125°C
  • Power Supply Voltage +3.0V to +3.6V
  • Power Supply Current 0.53 mA

产品概述

The LM96000, hardware monitor, has a two wire digital interface compatible with SMBus 2.0. Using an 8-bit ΣΔ ADC, the LM96000 measures:To set fan speed, the LM96000 has three PWM outputs that are each controlled by one of three temperature zones. High and low PWM frequency ranges are supported. The LM96000 includes a digital filter that can be invoked to smooth temperature readings for better control of fan speed. The LM96000 has four tachometer inputs to measure fan speed. Limit and status registers for all measured values are included.
查看全部

LM96000CIMTX 数据手册

数据手册 说明 数量 操作
LM96000CIMTX

Hardware Monitor with Integrated Fan Control

 28 Pages页,696K 查看

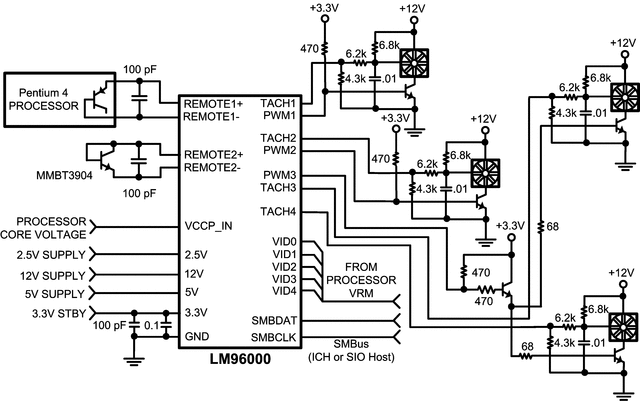

LM96000CIMTX 电路图

LM96000CIMTX 电路图

LM96000CIMTX 电路图
