- 参考价格:¥6.90-¥7.45
更新日期:2024-04-01 00:04:00
LM4030BMFX4.096/NOPB 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
SOT-23-5
2022+ -
12000
-
上海市
-
-
-
原装可开发票
LM4030BMFX4.096/NOPB 中文资料属性参数
- 制造商:National Semiconductor (TI)
- 产品:Voltage References
- 拓扑结构:Shunt References
- 参考类型:Precision
- 输出电压:4.096 V
- 初始准确度:0.10%
- 平均温度系数(典型值):20 PPM/C
- 分流电流(最大值):50 mA
- 最大工作温度:+ 125 C
- 封装 / 箱体:SOT-23
- 封装:Reel
- 最小工作温度:- 40 C
- 安装风格:SMD/SMT
- 工厂包装数量:3000
产品特性
- High Output Voltage Accuracy 0.05%
- Low Temperature Coefficient 10 ppm/°C
- Extended Temperature Operation -40-125°C
- Excellent Thermal Hysteresis, 75ppm
- Excellent Long-Term Stability, 40ppm
- High Immunity to Board Stress Effects
- Capable of Handling 50 mA Transients
- Voltage Options 2.5V, 4.096V
- SOT-23 Package
产品概述
The LM4030 is an ultra-high precision shunt voltage reference, having exceptionally high
initial accuracy (0.05%) and temperature stability (10ppm/°C). The LM4030 is available with fixed
voltage options of 2.5V and 4.096V. Despite the tiny SOT-23 package, the LM4030 exhibits excellent
thermal hysteresis (75ppm) and long-term stability (40ppm) as well as immunity to board stress
effects.The LM4030 is designed to operate without an external capacitor, but any capacitor up to
10µF may be used. The LM4030 can be powered off as little as 120µA (max) but is capable of shunting
up to 30mA continuously. As with any shunt reference, the LM4030 can be powered off of virtually
any supply and is a simple way to generate a highly accurate system reference.The LM4030 is available in three grades (A, B, and C). The best grade devices (A) have an
initial accuracy of 0.05% with ensured temperature coefficient of 10 ppm/°C or less, while the
lowest grade parts (C) have an initial accuracy of 0.15% and a temperature coefficient of 30
ppm/°C.

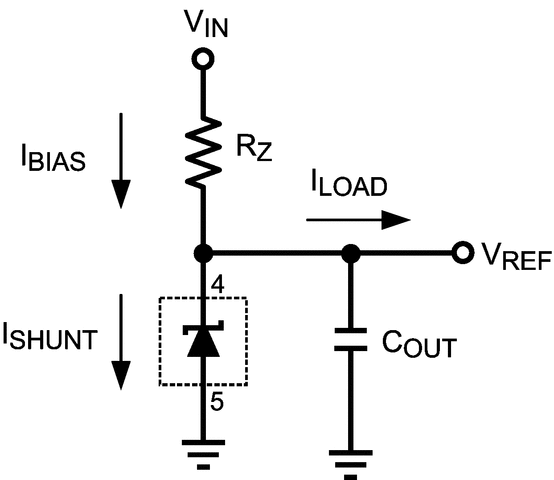

LM4030BMFX4.096/NOPB 电路图

LM4030BMFX4.096/NOPB 电路图
