LM3724IM5-4.63/NOPB

电源管理 IC
  • 参考价格：￥10.42-￥9.32

更新日期：2024-04-01

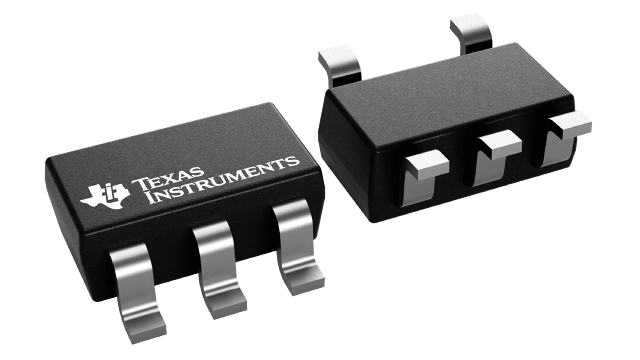

LM3724IM5-4.63/NOPB

电源管理 IC

产品简介：具有手动复位功能的低功耗电压监控器和复位 IC

查看详情
  • 参考价格：￥10.42-￥9.32

LM3724IM5-4.63/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM3724IM5-4.63/NOPB 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 监测电压数：1
  • 监测电压：2.5 V, 3.3 V, 5 V
  • 欠电压阈值：4.54 V
  • 过电压阈值：4.72 V
  • 输出类型：Active Low, Open Drain
  • 人工复位：Resettable
  • 监视器：No Watchdog
  • 电池备用开关：No Backup
  • 上电复位延迟（典型值）：190 ms
  • Supply Voltage - Max：5.5 V
  • Supply Voltage - Min：1 V
  • 电源电流（典型值）：15 uA
  • 最大功率耗散：320 mW
  • 最大工作温度：+ 85 C
  • 安装风格：SMD/SMT
  • 封装 / 箱体：SOT-23
  • 封装：Reel
  • 最小工作温度：- 40 C
  • 功率失效检测：No
  • 工厂包装数量：1000

产品特性

  • Precise Monitoring of 2.5V, 3.3V, and 5V Supply Voltages
  • Fully Specified Over TemperatureIndustrial: −40°C to +85°C Extended: −40°C to +125°C
  • Industrial: −40°C to +85°C
  • Extended: −40°C to +125°C
  • 100 ms Minimum Power-On Reset pulse Width, 190 ms Typical:Active-Low RESET Output (LM3722) Active-High RESET Output (LM3723) Active-Low RESET Open Drain Output (LM3724)
  • Active-Low RESET Output (LM3722)
  • Active-High RESET Output (LM3723)
  • Active-Low RESET Open Drain Output (LM3724)
  • Guaranteed RESET Output Valid for VCC ≥ 1V
  • Low Supply Current, 6µA Typical
  • Power Supply Transient Immunity
  • Compatible with MAX811/812 Applications

产品概述

The LM3722/LM3723/LM3724 microprocessor supervisory circuits monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, power-down, brown-out conditions, and manual reset.The LM3722/LM3723/LM3724 asserts a reset signal whenever the supply decreases below the factory-programmed reset threshold. Reset will be asserted for at least 100ms even after VCC rises above the reset threshold.The LM3722 has an active-low RESET push-pull output. The LM3723 has an active-high RESET push-pull output. The LM3724 has an active-low open-drain RESET output.Three standard reset voltage options are available, suitable for monitoring 5V, 3.3V, and 2.5V supply voltages. Additional reset voltages are also available; contact Texas Instruments for details.With a low supply current of only 6µA, the LM3722/LM3723/LM3724 are ideal for use in portable equipment. The LM3722/LM3723/LM3724 are available in the 5-pin SOT-23 package.
查看全部

LM3724IM5-4.63/NOPB 数据手册

数据手册 说明 数量 操作
LM3724IM5-4.63/NOPB

Supervisor Open Drain or Open Collector 1 Channel SOT-23-5

 17页,440K 查看
