LM3402MM/NOPB

电源管理 IC
  • 参考价格：￥12.42-￥9.11

更新日期：2024-04-01

LM3402MM/NOPB

电源管理 IC

产品简介：42V 0.5A 恒流降压型 LED 驱动器

查看详情
  • 参考价格：￥12.42-￥9.11

LM3402MM/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM3402MM/NOPB 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 输出电压：Adjustable
  • 输出电流：525 mA
  • 输入电压：42 V
  • 开关频率：10 KHz to 1000 KHz
  • 工作温度范围：- 40 C to + 85 C
  • 安装风格：SMD/SMT
  • 封装 / 箱体：MSOP-8
  • 封装：Reel
  • 输出端数量：1
  • 工厂包装数量：1000

产品特性

  • Integrated 0.5-A N-channel MOSFET
  • VIN Range from 6 V to 42 V (LM3402)
  • VIN Range from 6 V to 75 V (LM3402HV)
  • 500 mA Output Current Over Temperature
  • Cycle-by-Cycle Current Limit
  • No Control Loop Compensation Required
  • Separate PWM Dimming and Low Power Shutdown
  • Supports All Ceramic-Output Capacitors and Capacitor-Less Outputs
  • Thermal Shutdown Protection
  • VSSOP, SO PowerPAD Packages

产品概述

The LM3402/HV are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, they contain a high-side N-channel MOSFET switch with a current limit of 735 mA (typical) for step-down (Buck) regulators. Hysteretic control with controlled ON-time coupled with an external resistor allow the converter output voltage to adjust as needed to deliver a constant current to series and series - parallel connected arrays of LEDs of varying number and type, LED dimming by pulse width modulation (PWM), broken/open LED protection, low-power shutdown and thermal shutdown complete the feature set.
查看全部

LM3402MM/NOPB 数据手册

数据手册 说明 数量 操作
LM3402MM/NOPB

DC/DC Converter IC; Voltage Regulator Type:Buck Switching; Input Voltage Primary Max:42V; Output Voltage Max:37V; Output Current Max:500A; Supply Voltage Min:6V; Supply Voltage Max:42V; Termination Type:SMD; Package/Case:8-SOIC ;RoHS Compliant: Yes

24页,531K 查看

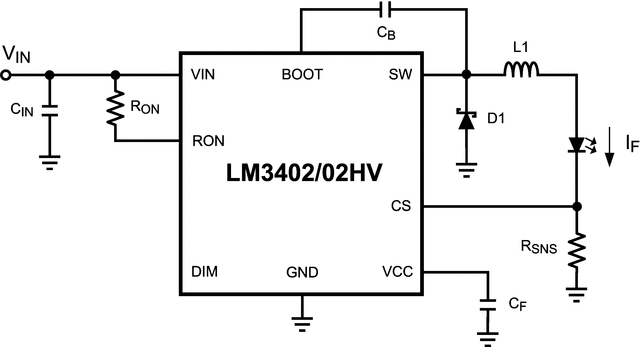

LM3402MM/NOPB 电路图

LM3402MM/NOPB 电路图

LM3402MM/NOPB 电路图

LM3402MM/NOPB 相关产品
