LM324AN/NOPB

放大器 IC
  • 参考价格：￥2.83-￥7.80

更新日期：2024-04-01

LM324AN/NOPB

放大器 IC

产品简介：四通道 32V 1MHz 运算放大器

查看详情
  • 参考价格：￥2.83-￥7.80

LM324AN/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM324AN/NOPB 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 通道数量：4
  • 共模抑制比（最小值）：85 dB
  • 输入补偿电压：3 mV
  • 输入偏流（最大值）：100 nA
  • 工作电源电压：32 V
  • 输出电流：40 mA
  • 最大工作温度：+ 70 C
  • 封装：Tube
  • 最小工作温度：0 C
  • 工厂包装数量：25

产品特性

  • Internally Frequency Compensated for Unity Gain
  • Large DC Voltage Gain 100 dB
  • Wide Bandwidth (Unity Gain) 1 MHz (Temperature Compensated)
  • Wide Power Supply Range: Single Supply 3 V to 32 V or Dual Supplies ±1.5 V to ±16 V
  • Single Supply 3 V to 32 V
  • or Dual Supplies ±1.5 V to ±16 V
  • Very Low Supply Current Drain (700 µA) –Essentially Independent of Supply Voltage
  • Low Input Biasing Current 45 nA (Temperature Compensated)
  • Low Input Offset Voltage 2 mV and Offset Current: 5 nA
  • Input Common-Mode Voltage Range Includes Ground
  • Differential Input Voltage Range Equal to the Power Supply Voltage
  • Large Output Voltage Swing 0 V to V+ – 1.5 V
  • Advantages: Eliminates Need for Dual Supplies Four Internally Compensated Op Amps in a Single Package Allows Direct Sensing Near GND and VOUT also Goes to GND Compatible With All Forms of Logic Power Drain Suitable for Battery Operation In the Linear Mode the Input Common-Mode, Voltage Range Includes Ground and the Output Voltage Can Swing to Ground, Even Though Operated from Only a Single Power Supply Voltage Unity Gain Cross Frequency is Temperature Compensated Input Bias Current is Also Temperature Compensated
  • Eliminates Need for Dual Supplies
  • Four Internally Compensated Op Amps in a Single Package
  • Allows Direct Sensing Near GND and VOUT also Goes to GND
  • Compatible With All Forms of Logic
  • Power Drain Suitable for Battery Operation
  • In the Linear Mode the Input Common-Mode, Voltage Range Includes Ground and the Output Voltage
  • Can Swing to Ground, Even Though Operated from Only a Single Power Supply Voltage
  • Unity Gain Cross Frequency is Temperature Compensated
  • Input Bias Current is Also Temperature Compensated

产品概述

The LM124-N series consists of four independent, high-gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split-power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124-N series can directly operate off of the standard 5-V power supply voltage which is used in digital systems and easily provides the required interface electronics without requiring the additional ±15 V power supplies.
查看全部

LM324AN/NOPB 数据手册

数据手册 说明 数量 操作
LM324AN/NOPB

OP AMP, QUAD, 1MHZ, 3MA, 14DIP; No. of Amplifiers:4; Op Amp Type:Low Power; Gain, Bandwidth -3dB:1MHz; Slew Rate:0.5V/μs; Voltage, Supply Min:3V; Voltage, Supply Max:32V; Case Style:MDIL; No. of Pins:14; Operating Temperature Range:0°C to +70°C; Base Number:324; Gain Bandwidth:1MHz; Temp, Op. Max:70°C; Temp, Op. Min:0°C; Voltage, Input Offset Max:2mV; Voltage, Supply +Nom:32V

20页,530K 查看
LM324AN/NOPB

General Purpose Amplifier 4 Circuit 14-PDIP

 34页,1.77M 查看

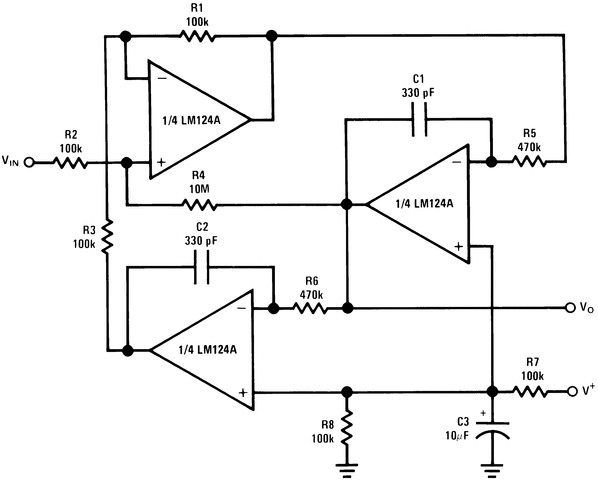

LM324AN/NOPB 电路图
