LM321MF

Texas Instruments 放大器 IC

产品简介：单通道、30V、1MHz 运算放大器

查看详情
  • 参考价格：￥1.69-￥5.18

LM321MF 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价
更多供应商

LM321MF 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 通道数量：1
  • 共模抑制比（最小值）：65 dB
  • 输入补偿电压：7 mV at 5 V
  • 工作电源电压：5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
  • 安装风格：SMD/SMT
  • 封装 / 箱体：SOT-23
  • 转换速度：0.4 V/us at 15 V
  • 关闭：No
  • 最大工作温度：+ 85 C
  • 封装：Reel
  • 最小工作温度：- 40 C
  • 工厂包装数量：1000
  • 电源电流：1.15 mA at 5 V
  • Supply Voltage - Max：30 V
  • Supply Voltage - Min：3 V
  • 技术：Bipolar
  • 电压增益 dB：100 dB

产品特性

  • (VCC = 5 V, TA = 25°C. Typical values unless specified.)
  • Gain-Bandwidth Product 1 MHz
  • Low Supply Current 430 µA
  • Low Input Bias Current 45 nA
  • Wide Supply Voltage Range 3 V to 32 V
  • Stable With High Capacitive Loads
  • Single Version of LM324

产品概述

The LM321 brings performance and economy to low power systems. With a high unity gain frequency and a specified 0.4-V/µs slew rate, the quiescent current is only 430-µA/amplifier (5 V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads.The LM321 is available in the SOT-23 package. Overall the LM321 is a low power, wide supply range performance operational amplifier that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.
查看全部

LM321MF 数据手册

数据手册 说明 数量 操作
LM321MF/NOPB

OP AMP, SINGLE, SMD; No. of Amplifiers:1; Op Amp Type:Low Power; Gain, Bandwidth -3dB:1MHz; Slew Rate:0.4V/μs; Voltage, Supply Min:3V; Voltage, Supply Max:30V; Termination Type:SMD; Case Style:SOT-23; No. of Pins:5; Operating Temperature Range:-40°C to +85°C

9页,238K 查看
LM321MFX

Low Power Single Op Amp

 9 Pages页,238K 查看

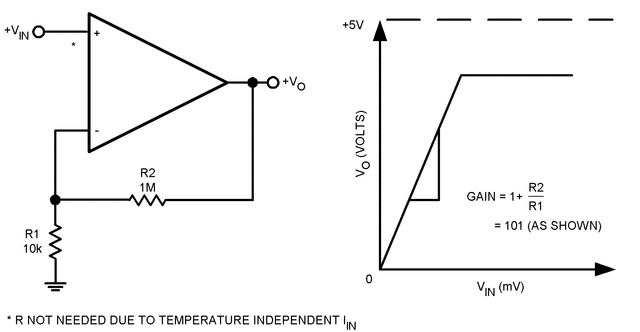

LM321MF 电路图

LM321MF 电路图

LM321MF 电路图
