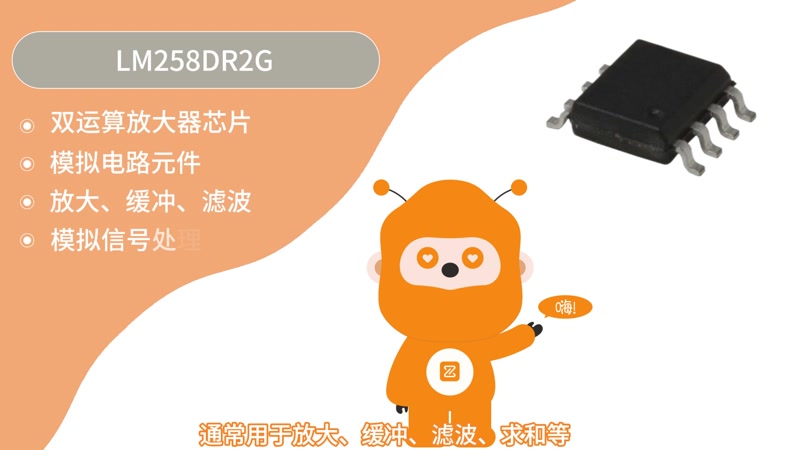

LM258DR2G

? Semiconductor Components Industries, LLC, 2004 July, 2004 ? Rev. 18 1 Publication Order Number: LM358/D LM358, LM258, LM2904, LM2904A, LM2904V, NCV2904 Single Supply Dual Operational Amplifiers Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/V EE , and single supply or split supply operation. The LM358 series is equivalent to one?half of an LM324. These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one?fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply
