LM10506TMX/NOPB

电源管理 IC
  • 参考价格：￥12.42

更新日期：2024-04-01

暂无图片

LM10506TMX/NOPB

电源管理 IC

产品简介：三路降压 + LDO 电源管理 IC (PMIC)

查看详情
  • 参考价格：￥12.42

LM10506TMX/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM10506TMX/NOPB 中文资料属性参数

  • 制造商：National Semiconductor (TI)
  • 封装：Reel
  • 工厂包装数量：3000

产品特性

  • Three Highly Efficient Programmable Buck Regulators Buck Regulator Outputs: Buck 1: 1.1 V to 3.6 V; 1.3 A Buck 2: 1.1 V to 3.6 V; 400 mA Buck 3: 0.7 V to 1.335 V; 600 mA ±3% Feedback Voltage Accuracy Up to 95% Efficient Buck Regulators 2MHz Switching Frequency for Smaller Inductor Size Integrated FETs with Low RDSON Bucks Operate With Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size Programmable Output Voltage via the SPI™ Interface Overvoltage and Undervoltage Lockout Automatic Internal Soft Start With Power-On Reset Current Overload and Thermal Shutdown Protection Bypass Mode Available on PFM Mode for Low-Load, High-Efficiency Operation
  • Buck Regulator Outputs: Buck 1: 1.1 V to 3.6 V; 1.3 A Buck 2: 1.1 V to 3.6 V; 400 mA Buck 3: 0.7 V to 1.335 V; 600 mA
  • Buck 1: 1.1 V to 3.6 V; 1.3 A
  • Buck 2: 1.1 V to 3.6 V; 400 mA
  • Buck 3: 0.7 V to 1.335 V; 600 mA
  • ±3% Feedback Voltage Accuracy
  • Up to 95% Efficient Buck Regulators
  • 2MHz Switching Frequency for Smaller Inductor Size
  • Integrated FETs with Low RDSON
  • Bucks Operate With Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size
  • Programmable Output Voltage via the SPI™ Interface
  • Overvoltage and Undervoltage Lockout
  • Automatic Internal Soft Start With Power-On Reset
  • Current Overload and Thermal Shutdown Protection
  • Bypass Mode Available on
  • PFM Mode for Low-Load, High-Efficiency Operation
  • Low-Dropout LDO 3.2 V, 100 mA
  • SPI-Programmable Interrupt Comparator (2 V to 4 V)
  • Alternate Buck VOUT Selectable via H/L Logic Pins
  • RESET, STANDBY Pins

产品概述

The LM10506 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.The LM10506 operates cooperatively with ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 100-mA LDO and a programmable Interrupt Comparator.
查看全部

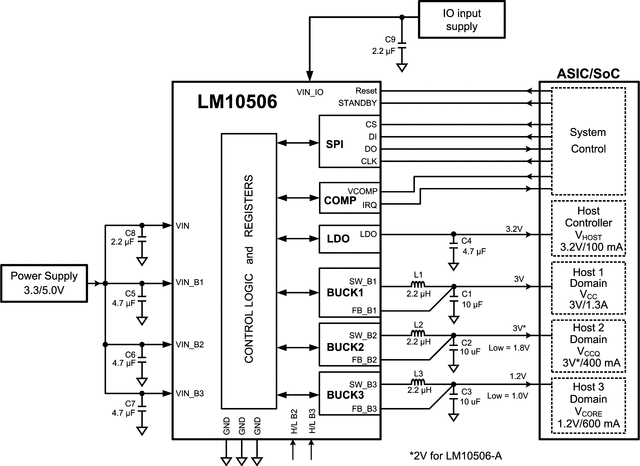

LM10506TMX/NOPB 电路图

LM10506TMX/NOPB 电路图

LM10506TMX/NOPB 电路图
