LF156H/883

仪器，运算放大器，缓冲器

更新日期：2024-04-01

LF156H/883

仪器，运算放大器，缓冲器

产品简介：获得 QML 认证的军用级、单通道、40V、5MHz、FET 输入运算放大器

查看详情

LF156H/883 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LF156H/883 中文资料属性参数

  • 现有数量：0现货6,589Factory
  • 价格：在售
  • 系列：-
  • 包装：管件
  • 产品状态：在售
  • 放大器类型：J-FET
  • 电路数：1
  • 输出类型：无
  • 压摆率：7.5V/μs
  • 增益带宽积：5 MHz
  • -3db 带宽：-
  • 电流 - 输入偏置：100 pA
  • 电压 - 输入补偿：-
  • 电流 - 供电：5mA
  • 电流 - 输出/通道：-
  • 电压 - 跨度（最小值）：30 V
  • 电压 - 跨度（最大值）：40 V
  • 工作温度：-55°C ~ 125°C（TA）
  • 安装类型：通孔
  • 封装/外壳：TO-99-8 金属罐
  • 供应商器件封装：TO-99-8

产品特性

  • AdvantagesReplace Expensive Hybrid and Module FET Op Amps Rugged JFETs Allow Blow-Out Free Handling Compared with MOSFET Input Devices Excellent for Low Noise Applications Using Either High or Low Source Impedance—Very Low 1/f Corner Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) Without Stability Problems Internal Compensation and Large Differential Input Voltage Capability
  • Replace Expensive Hybrid and Module FET Op Amps
  • Rugged JFETs Allow Blow-Out Free Handling Compared with MOSFET Input Devices
  • Excellent for Low Noise Applications Using Either High or Low Source Impedance—Very Low 1/f Corner
  • Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers
  • New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) Without Stability Problems
  • Internal Compensation and Large Differential Input Voltage Capability
  • Low Input Bias Current: 30pA
  • Low Input Offset Current: 3pA
  • High Input Impedance: 1012Ω
  • Low Input Noise Current: 0.01 pA / √Hz
  • High Common-Mode Rejection Ratio: 100 dB
  • Large DC Voltage Gain: 106 dB
  • Extremely Fast Settling Time to 0.01% 1.5μs
  • Time to 0.01% 1.5μs
  • Fast Slew Rate 12V/µs
  • Wide Gain Bandwidth 5MHz
  • Low Input Noise Voltage 12 nV / √Hz

产品概述

This is the first monolithic JFET input operational amplifier to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). This amplifier features low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The device is also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.
查看全部

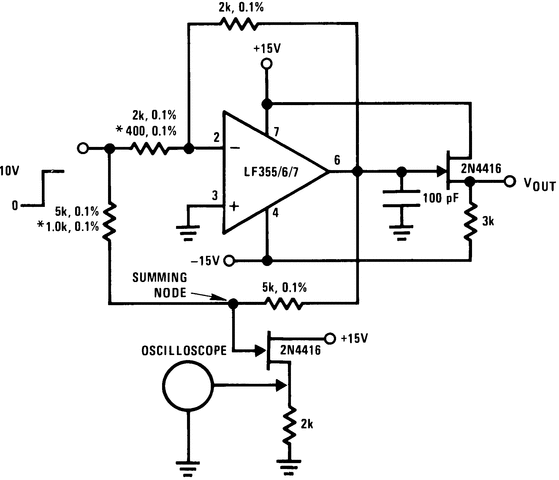

LF156H/883 电路图

LF156H/883 电路图

LF156H/883 电路图
