JM38510/11201BCA

比较器

更新日期：2024-04-01

JM38510/11201BCA

比较器

产品简介：四路差分比较器

查看详情

JM38510/11201BCA 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

JM38510/11201BCA 中文资料属性参数

  • 现有数量：0现货10,001Factory
  • 价格：在售
  • 系列：*
  • 包装：管件
  • 产品状态：在售
  • 类型：-
  • 元件数：-
  • 输出类型：-
  • 电压 - 供电，单/双?(±)：-
  • 电压 - 输入补偿（最大值）：-
  • 电流 - 输入偏置（最大值）：-
  • 电流 - 输出（典型值）：-
  • 电流 - 静态（最大值）：-
  • CMRR，PSRR（典型值）：-
  • 传播延迟（最大值）：-
  • 滞后：-
  • 工作温度：-
  • 封装/外壳：-
  • 安装类型：-
  • 供应商器件封装：-

产品特性

  • Wide Supply RangesSingle Supply: 2 V to 36 V (Tested to 30 V)Dual Supplies: ±1 V to ±18 V (Tested to ±15 V)
  • Single Supply: 2 V to 36 V (Tested to 30 V)
  • Dual Supplies: ±1 V to ±18 V (Tested to ±15 V)
  • Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA (Typical)
  • Low Input Bias Current: 25 nA (Typical)
  • Low Input Offset Current: 3 nA (Typical)
  • Low Input Offset Voltage: 2 mV (Typical)
  • Common-Mode Input Voltage Range Includes Ground
  • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V
  • Low Output Saturation Voltage
  • Output Compatible With TTL, MOS, and CMOS
  • On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

产品概述

The LM139-MIL device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.The LM139-MIL device is characterized for operation over the full military temperature range of –55°C to +125°C.
查看全部

JM38510/11201BCA 数据手册

数据手册 说明 数量 操作
JM38510/11201BCA

QUAD DIFFERENTIAL COMPARATORS

 19 Pages页,519K 查看

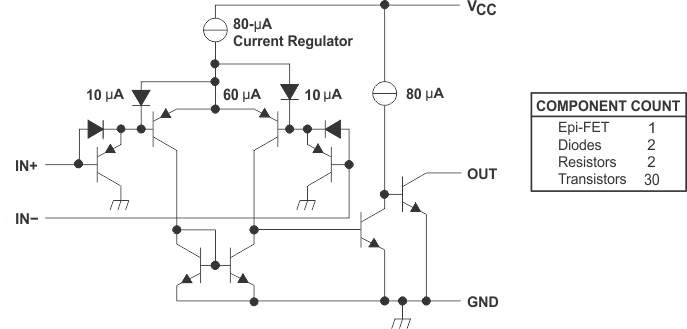

JM38510/11201BCA 电路图

JM38510/11201BCA 电路图

JM38510/11201BCA 电路图
