DS92LX2122SQ/NOPB
接口 IC- 参考价格:¥44.71-¥46.44
更新日期:2024-04-01
DS92LX2122SQ/NOPB 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-

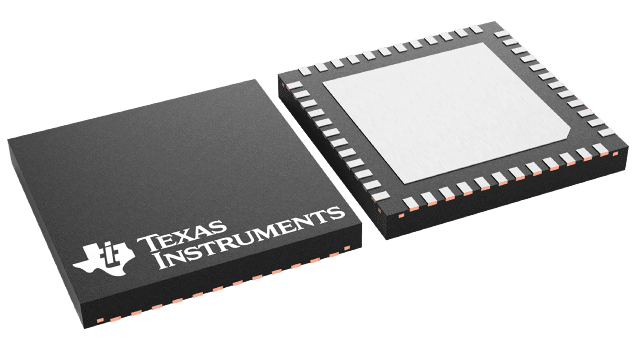

WQFN-48(7x7)
2022+ -
12000
-
上海市
-
-
-
原装可开发票
DS92LX2122SQ/NOPB 中文资料属性参数
- 制造商:National Semiconductor (TI)
- 数据速率:21 bit
- 最大工作温度:+ 85 C
- 最小工作温度:- 40 C
- 工作电源电压:1.8 V, 3.3 V
- 封装 / 箱体:LLP-48
- 安装风格:SMD/SMT
- 输出端数量:21
- 工作电流:1 uA
- 封装:Reel
- 工厂包装数量:2500
- Supply Voltage - Max:1.89 V, 3.63 V
- Supply Voltage - Min:1.71 V, 3 V
- 类型:Network Controller & Processor
产品特性
- General Up to 1050 Mbits/sec Data Throughput 10 MHz to 50 MHz Input Clock Support Supports 18-bit Color Depth (RGB666 + HS, VS, DE) Embedded Clock with DC Balanced Coding to Support AC-Coupled Interconnects Capable to Drive up to 10 Meters Shielded Twisted-Pair Bi-Directional Control Interface Channel with I2C Support I2C Interface for Device Configuration. Single-Pin ID Addressing Up to 4 GPI on DES and GPO on SER AT-SPEED BIST Diagnosis Feature to Validate Link Integrity Individual Power-Down Controls for both SER and DES User-Selectable Clock Edge for Parallel Data on both SER and DES Integrated Termination Resistors 1.8V- or 3.3V-Compatible Parallel Bus Interface Single Power Supply at 1.8V IEC 61000–4–2 ESD Compliant Temperature Range −40°C to +85°C
- Up to 1050 Mbits/sec Data Throughput
- 10 MHz to 50 MHz Input Clock Support
- Supports 18-bit Color Depth (RGB666 + HS, VS, DE)
- Embedded Clock with DC Balanced Coding to Support AC-Coupled Interconnects
- Capable to Drive up to 10 Meters Shielded Twisted-Pair
- Bi-Directional Control Interface Channel with I2C Support
- I2C Interface for Device Configuration. Single-Pin ID Addressing
- Up to 4 GPI on DES and GPO on SER
- AT-SPEED BIST Diagnosis Feature to Validate Link Integrity
- Individual Power-Down Controls for both SER and DES
- User-Selectable Clock Edge for Parallel Data on both SER and DES
- Integrated Termination Resistors
- 1.8V- or 3.3V-Compatible Parallel Bus Interface
- Single Power Supply at 1.8V
- IEC 61000–4–2 ESD Compliant
- Temperature Range −40°C to +85°C
- DESERIALIZER — DS92LX2122 No Reference Clock Required on Deserializer Programmable Receive Equalization LOCK Output Reporting Pin to Ensure EMI/EMC Mitigation Programmable Spread Spectrum (SSCG) Outputs Receiver Output Drive Strength Control (RDS) Receiver Staggered Outputs
- No Reference Clock Required on Deserializer
- Programmable Receive Equalization
- LOCK Output Reporting Pin to Ensure
- EMI/EMC Mitigation Programmable Spread Spectrum (SSCG) Outputs Receiver Output Drive Strength Control (RDS) Receiver Staggered Outputs
- Programmable Spread Spectrum (SSCG) Outputs
- Receiver Output Drive Strength Control (RDS)
- Receiver Staggered Outputs
产品概述
The DS92LX2121/DS92LX2122 chipset offers a Channel Link III interface with a high-speed
forward channel and a full-duplex control channel for data transmission over a single differential
pair. The DS92LX2121/DS92LX2122 incorporates differential signaling on both the high-speed and
bi-directional back channel control data paths. The Serializer/ Deserializer pair is targeted for
direct connections between graphics host controller and displays modules. This chipset is ideally
suited for driving video data to displays requiring 18-bit color depth (RGB666 + HS, VS, and DE)
along with a bi-directional back channel control bus. The primary transport converts 21 bit data
over a single high-speed serial stream, along with a separate low latency bi-directional back
channel transport that accepts control information from an I2C port. Using TI’s embedded clock
technology allows transparent full-duplex communication over a single differential pair, carrying
asymmetrical bi-directional back channel control information in both directions. This single serial
stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew
problems between parallel data and clock paths. This significantly saves system cost by narrowing
data paths that in turn reduce cable width, connector size and pins.In addition, the Deserializer provides input equalization to compensate for loss from the
media over longer distances. Internal DC balanced encoding/decoding is used to support AC-Coupled
interconnects.A sleep function provides a power-savings mode when the high speed forward channel and
embedded bi-directional control channel are not needed.The Serializer is offered in a 40-pin lead in WQFN and Deserializer is offered in a
48-pin WQFN packages.
DS92LX2122SQ/NOPB 电路图

DS92LX2122SQ/NOPB 电路图
