DS25CP114TSQE/NOPB

更新日期：2024-04-01

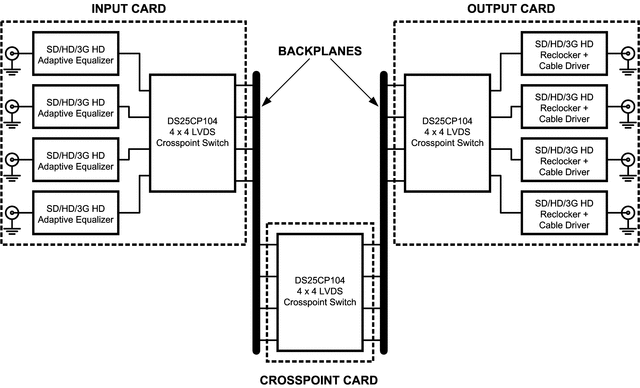

产品简介：具有 TX 预加重和 RX 均衡功能的 3.125Gbps 4x4 LVDS 交叉点开关

DS25CP114TSQE/NOPB 供应商

DC - 3.125 Gbps Low Jitter, Low Skew, Low Power Operation
Pin and SMBus Configurable, Fully Differential, Non-Blocking Architecture
Pin (Two Levels) and SMBus (Four Levels) Selectable Pre-Emphasis and Equalization Eliminate ISI Jitter
Wide Input Common Mode Range Enables Easy Interface to CML and LVPECL Drivers
LOS Circuitry Detects Open Inputs Fault Condition
On-Chip 100Ω Input and Output Termination Minimizes Insertion and Return Losses, Reduces Component Count, Minimizes Board Space The DS25CP114 Eliminates the On-Chip Input Termination for Added Design Flexibility.
8 kV ESD on LVDS I/O Pins Protects Adjoining Components
Small 6 mm x 6 mm WQFN-40 Space Saving Package

数据手册	说明	数量	操作
DS25CP114TSQE/NOPB	Crosspoint Switch 1 x 4:4 40-WQFN (6x6)	31页,1.18M	查看
