DRV8841PWPR

Texas Instruments PMIC - 电机和风扇控制器，驱动器
  • 封装：28-SOIC（0.173"，4.40mm 宽）裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$3.24-$6.48

更新日期：2024-04-01

DRV8841PWPR

Texas Instruments PMIC - 电机和风扇控制器，驱动器

产品简介：具有电流调节和 PWM 控制功能的 45V、2.5A 双极步进或两路 H 桥电机驱动器 IC

查看详情
  • 封装：28-SOIC（0.173"，4.40mm 宽）裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$3.24-$6.48

DRV8841PWPR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

DRV8841PWPR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电机和风扇控制器，驱动器
  • 系列：-
  • 应用：DC 电机驱动器，步进电机驱动器，H 桥式
  • 评估套件：可供
  • 输出数：1 或 2
  • 电流 - 输出：1.75A
  • 电压 - 负载：8.2 V ~ 45 V
  • 电源电压：8.2 V ~ 45 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：28-SOIC（0.173"，4.40mm 宽）裸露焊盘
  • 供应商设备封装：28-HTSSOP
  • 包装：®
  • 其它名称：296-28914-6

产品特性

  • Dual H-Bridge DC Motor Driver Single and Dual Brushed DC Stepper
  • Single and Dual Brushed DC
  • Stepper
  • PWM Control Interface
  • Optional Fixed Frequency Current Regulation Two Bit Current Control Allows Up to Four Current Levels
  • Two Bit Current Control Allows Up to Four Current Levels
  • Low MOSFET On-Resistance 2.5-A Maximum Drive Current at 24 V and TA = 25°C Combined 400 mΩ RDS(ON) of High-Side and Low-Side at 24 V and TA = 25°C
  • 2.5-A Maximum Drive Current at 24 V and TA = 25°C
  • Combined 400 mΩ RDS(ON) of High-Side and Low-Side at 24 V and TA = 25°C
  • 8.2-V to 45-V Operating Supply Voltage Range
  • Low Current Sleep Mode
  • Built-In 3.3-V Reference Output
  • Thermally Enhanced Surface Mount Package
  • Protection Features Overcurrent Protection (OCP) Thermal Shutdown (TSD) Undervoltage Lockout (UVLO) Fault Condition Indication Pin (nFAULT)
  • Overcurrent Protection (OCP)
  • Thermal Shutdown (TSD)
  • Undervoltage Lockout (UVLO)
  • Fault Condition Indication Pin (nFAULT)

产品概述

The DRV8841 provides an integrated dual H-bridge motor driver solution for printers, scanners, and other automated equipment applications. The device can be used to drive one or two brushed DC motors, a bipolar stepper motor, or other loads. A simple PWM interface allows easy interfacing to controller circuits.The output driver block consists of N-channel power MOSFETs configured as H-bridges. The DRV8841 an supply up to 2.5-A peak or 1.75-A RMS output current (with proper heat sinking at 24 V and TA = 25°C) per H-bridge.A low-power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection features are provided for overtemperature, overcurrent, and undervoltage. Fault conditions are indicated by a nFAULT pin.
查看全部

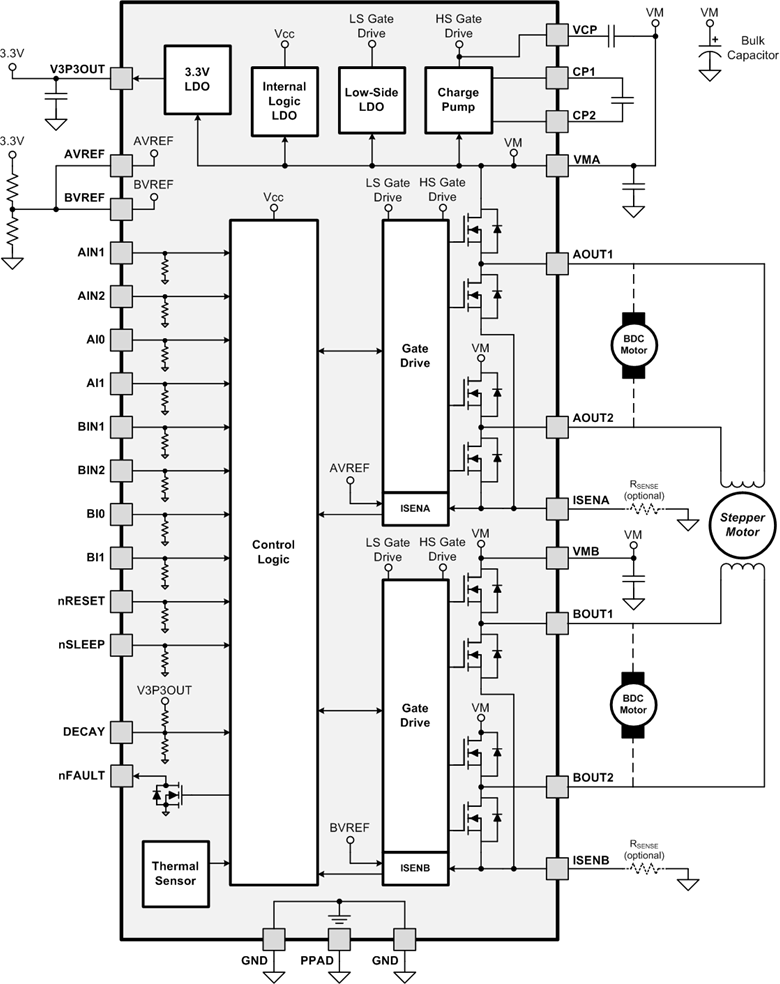

DRV8841PWPR 电路图

DRV8841PWPR 电路图

DRV8841PWPR 电路图
