  • 封装:12-UFDFN 裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$1.575

更新日期:2024-04-01

产品简介:12 位超低短时脉冲波形干扰电压输出数模转换器

查看详情
  • 封装:12-UFDFN 裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$1.575

DAC7551IDRNR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

DAC7551IDRNR 中文资料属性参数

  • 产品培训模块:Data Converter Basics
  • 标准包装:3,000
  • 类别:集成电路 (IC)
  • 家庭:数据采集 - 数模转换器
  • 系列:-
  • 设置时间:5µs
  • 位数:12
  • 数据接口:DSP,MICROWIRE?,QSPI?,串行,SPI?
  • 转换器数目:1
  • 电压电源:单电源
  • 功率耗散(最大):-
  • 工作温度:-40°C ~ 105°C
  • 安装类型:表面贴装
  • 封装/外壳:12-UFDFN 裸露焊盘
  • 供应商设备封装:12-USON(3x2)
  • 包装:带卷 (TR)
  • 输出数目和类型:1 电压,单极
  • 采样率(每秒):500k

产品特性

  • Relative Accuracy (INL): ±0.35LSB
  • Ultra-Low Glitch Energy: 0.1nV-s
  • Low Power Operation: 100µA at 2.7V
  • Power-On Reset to Zero Scale
  • Power Supply: 2.7V to 5.5V Single Supply
  • Power-Down: 0.05µA at 2.7V
  • 12-Bit Linearity and Monotonicity
  • Rail-to-Rail Voltage Output
  • Settling Time: 5µs (Max)
  • SPI-Compatible Serial Interface with Schmitt-Trigger Input: Up to 50MHz
  • Daisy-Chain Capability
  • Asynchronous Hardware Clear to Zero Scale
  • Specified Temperature Range: -40°C to +105°C
  • Small, 2 x 3 mm, 12-Lead SON Package
  • APPLICATIONSPortable, Battery-Powered InstrumentsDigital Gain and Offset AdjustmentProgrammable Voltage and Current SourcesProgrammable AttenuatorsIndustrial Process Control
  • Portable, Battery-Powered Instruments
  • Digital Gain and Offset Adjustment
  • Programmable Voltage and Current Sources
  • Programmable Attenuators
  • Industrial Process Control

产品概述

The DAC7551 is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary architecture that minimizes glitch energy. The low-power DAC7551 operates from a single 2.7V to 5.5V supply. The DAC7551 output amplifiers can drive a 2k, 200pF load rail-to-rail with 5µs settling time; the output range is set using an external voltage reference.The 3-wire serial interface operates at clock rates up to 50MHz and is compatible with SPI™, QSPI™, Microwire™, and DSP interface standards. The parts incorporate a power-on-reset circuit to ensure that the DAC output powers up to 0V and remains there until a valid write cycle to the device takes place. The part contains a power-down feature that reduces the current consumption of the device to under 2µA. Small size and low-power operation make the DAC7551 ideally suited for battery-operated, portable applications. The power consumption is typically 0.5mW at 5V, 0.23mW at 3V, and reduces to 1µW in power-down mode. The DAC7551 is available in a 12-lead SON package and is specified over -40°C to +105°C.

DAC7551IDRNR 数据手册

数据手册 说明 数量 操作
DAC7551IDRNR

12-BIT, ULTRALOW GLITCH, VOLTAGE OUTPUT DIGITAL-TO-ANALOG CONVERTER

18 Pages页,540K 查看

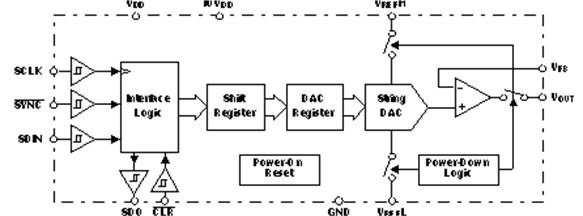

DAC7551IDRNR 电路图

DAC7551IDRNR 电路图

DAC7551IDRNR 电路图
