CC2531F128RHAT

Texas Instruments RF 收发器
  • 封装：40-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$7.067-$9.55

更新日期：2024-04-01

CC2531F128RHAT

Texas Instruments RF 收发器

产品简介：具有高达 256kB 闪存和 8kB RAM 的 Zigbee、IEEE 802.15.4 和 RF4CE 无线 MCU

查看详情
  • 封装：40-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$7.067-$9.55

CC2531F128RHAT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC2531F128RHAT 中文资料属性参数

  • 标准包装：1
  • 类别：RF/IF 和 RFID
  • 家庭：RF 收发器
  • 系列：*
  • 频率：2.4GHz
  • 数据传输率 - 最大：250kbps
  • 调制或协议：802.15.4 Zigbee
  • 应用：通用
  • 功率 - 输出：8dBm
  • 灵敏度：-97dBm
  • 电源电压：2 V ~ 3.6 V
  • 电流 - 接收：24mA
  • 电流 - 传输：33.5mA
  • 数据接口：PCB，表面贴装
  • 存储容量：128kB 闪存，8kB RAM
  • 天线连接器：PCB，表面贴装
  • 工作温度：-40°C ~ 125°C
  • 封装/外壳：40-VFQFN 裸露焊盘
  • 包装：?
  • 其它名称：296-27640-6

产品特性

  • RF/Layout 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver Excellent Receiver Sensitivity and Robustness to Interference Programmable Output Power Up to 4.5 dBm Few External Components Only a Single Crystal Needed for Asynchronous Networks 6-mm × 6-mm QFN40 Package Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan)
  • 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
  • Excellent Receiver Sensitivity and Robustness to Interference
  • Programmable Output Power Up to 4.5 dBm
  • Few External Components
  • Only a Single Crystal Needed for Asynchronous Networks
  • 6-mm × 6-mm QFN40 Package
  • Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan)
  • USB USB 2.0 Certified Full Speed Device (12 Mbps) 5 Highly Flexible Endpoints 1-KB Dedicated FIFO DMA Access to FIFO No 48-MHz Crystal Required
  • USB 2.0 Certified Full Speed Device (12 Mbps)
  • 5 Highly Flexible Endpoints
  • 1-KB Dedicated FIFO
  • DMA Access to FIFO
  • No 48-MHz Crystal Required
  • Low Power Active Mode RX (CPU Idle): 24 mA Active Mode TX at 1 dBm (CPU Idle): 29 mA Power Mode 1 (4 µs Wake-Up): 0.2 mA Power Mode 2 (Sleep Timer Running): 1 µA Power Mode 3 (External Interrupts): 0.4 µA Wide Supply-Voltage Range (2 V–3.6 V)
  • Active Mode RX (CPU Idle): 24 mA
  • Active Mode TX at 1 dBm (CPU Idle): 29 mA
  • Power Mode 1 (4 µs Wake-Up): 0.2 mA
  • Power Mode 2 (Sleep Timer Running): 1 µA
  • Power Mode 3 (External Interrupts): 0.4 µA
  • Wide Supply-Voltage Range (2 V–3.6 V)
  • Microcontroller High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch 256-KB or 128-KB In-System-Programmable Flash 8-KB RAM With Retention in All Power Modes Hardware Debug Support 
  • High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch
  • 256-KB or 128-KB In-System-Programmable Flash
  • 8-KB RAM With Retention in All Power Modes
  • Hardware Debug Support 
  • Peripherals Powerful Five-Channel DMA IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit) IR Generation Circuitry 32-kHz Sleep Timer With Capture CSMA/CA Hardware Support Accurate Digital RSSI/LQI Support Battery Monitor and Temperature Sensor 12-Bit ADC With Eight Channels and Configurable Resolution AES Security Coprocessor Two Powerful USARTs With Support for Several Serial Protocols 21 General-Purpose I/O Pins (19 × 4 mA, 2 × 20 mA) Watchdog Timer
  • Powerful Five-Channel DMA
  • IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)
  • IR Generation Circuitry
  • 32-kHz Sleep Timer With Capture
  • CSMA/CA Hardware Support
  • Accurate Digital RSSI/LQI Support
  • Battery Monitor and Temperature Sensor
  • 12-Bit ADC With Eight Channels and Configurable Resolution
  • AES Security Coprocessor
  • Two Powerful USARTs With Support for Several Serial Protocols
  • 21 General-Purpose I/O Pins (19 × 4 mA, 2 × 20 mA)
  • Watchdog Timer
  • Development Tools CC2531 Development Kit Certified CC2531 USB Dongle Reference Design SmartRF™ Software Packet Sniffer IAR Embedded Workbench® Software Available
  • CC2531 Development Kit
  • Certified CC2531 USB Dongle Reference Design
  • SmartRF™ Software
  • Packet Sniffer
  • IAR Embedded Workbench® Software Available
  • APPLICATIONS USB Upgradable 2.4-GHz IEEE 802.15.4 Systems RF4CE Remote Control Target for TV or STB PC Peripherals ZigBee® Systems Home/Building Automation Lighting Systems Industrial Control and Monitoring Low-Power Wireless Sensor Networks Consumer Electronics Health Care
  • USB Upgradable 2.4-GHz IEEE 802.15.4 Systems
  • RF4CE Remote Control Target for TV or STB
  • PC Peripherals
  • ZigBee® Systems
  • Home/Building Automation
  • Lighting Systems
  • Industrial Control and Monitoring
  • Low-Power Wireless Sensor Networks
  • Consumer Electronics
  • Health Care

产品概述

The CC2531 is a USB enabled true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Source code for USB HID and CDC libraries and examples are downloadable from the CC2531 product page on www.ti.com.Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the CC2531 provides a robust and complete ZigBee USB dongle or firmware upgradable network node.Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2531 provides a robust ZigBee RF4CE remote-control target for USB dongle or TV/STB implementations.
查看全部

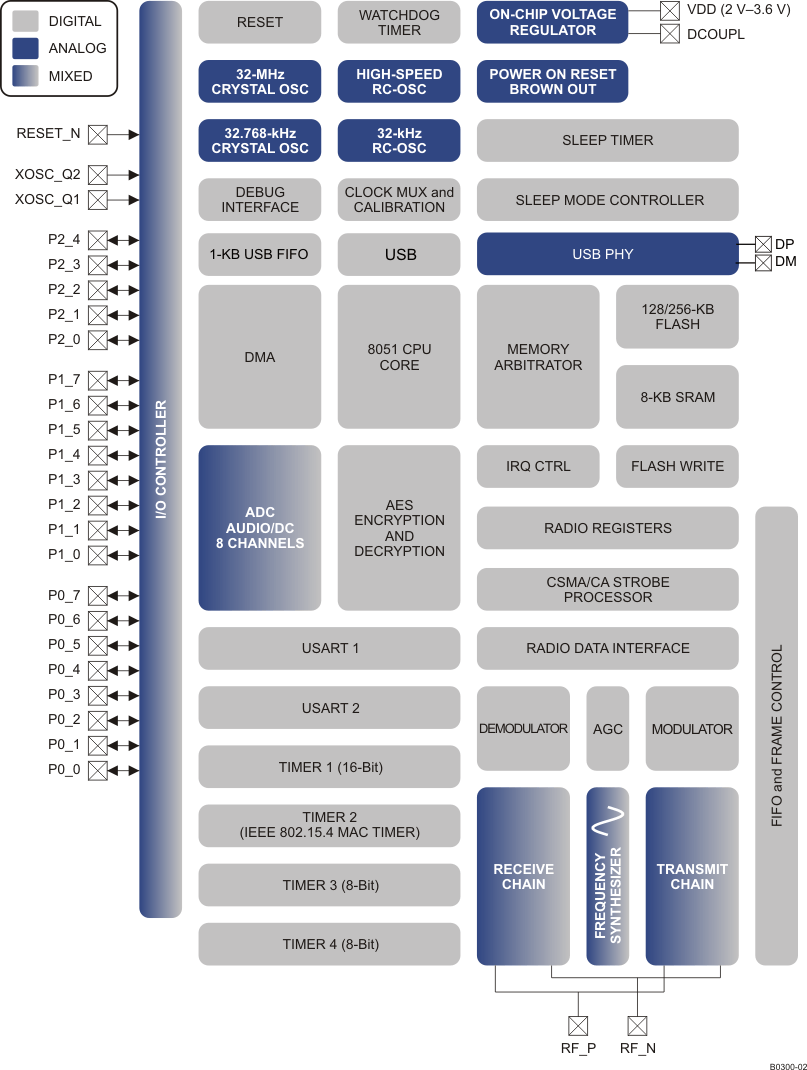

CC2531F128RHAT 电路图
