CC2520RHDT

Texas Instruments RF 收发器
  • 封装：28-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$4.431-$6.05

更新日期：2024-04-01

CC2520RHDT

Texas Instruments RF 收发器

产品简介：第二代 2.4GHz ZigBee/IEEE 802.15.4 无线收发器

查看详情
  • 封装：28-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$4.431-$6.05

CC2520RHDT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC2520RHDT 中文资料属性参数

  • 产品培训模块：RFID Technology and ApplicationsPortable Medical Solutions with MSP430
  • 标准包装：1
  • 类别：RF/IF 和 RFID
  • 家庭：RF 收发器
  • 系列：-
  • 频率：2.4GHz
  • 数据传输率 - 最大：250kbps
  • 调制或协议：802.15.4
  • 应用：AMR，ISM，ZigBee?
  • 功率 - 输出：-9dBm ~ 8dBm
  • 灵敏度：-98dBm
  • 电源电压：1.8 V ~ 3.8 V
  • 电流 - 接收：22.3mA
  • 电流 - 传输：25.8mA
  • 数据接口：PCB，表面贴装
  • 存储容量：-
  • 天线连接器：PCB，表面贴装
  • 工作温度：-40°C ~ 125°C
  • 封装/外壳：28-VFQFN 裸露焊盘
  • 包装：?
  • 其它名称：296-22996-6

产品特性

  • APPLICATIONS IEEE 802.15.4 systems ZigBee® systems Industrial monitoring and control Home and building automation Automatic Meter Reading Low-power wireless sensor networks Set-top boxes and remote controls Consumer electronics
  • IEEE 802.15.4 systems
  • ZigBee® systems
  • Industrial monitoring and control
  • Home and building automation
  • Automatic Meter Reading
  • Low-power wireless sensor networks
  • Set-top boxes and remote controls
  • Consumer electronics
  • KEY FEATURES State-of-the-art selectivity/co-existence Adjacent channel rejection: 49 dB Alternate channel rejection: 54 dB Excellent link budget (103dB) 400 m Line-of-sight range Extended temp range (–40 to +125°C) Wide supply range: 1.8 V – 3.8 V Extensive IEEE 802.15.4 MAC hardware support to offload the microcontroller AES-128 security module CC2420 interface compatibility mode
  • State-of-the-art selectivity/co-existence Adjacent channel rejection: 49 dB Alternate channel rejection: 54 dB
  • Excellent link budget (103dB) 400 m Line-of-sight range
  • Extended temp range (–40 to +125°C)
  • Wide supply range: 1.8 V – 3.8 V
  • Extensive IEEE 802.15.4 MAC hardware support to offload the microcontroller
  • AES-128 security module
  • CC2420 interface compatibility mode
  • Low Power RX (receiving frame, –50 dBm) 18.5 mA TX 33.6 mA @ +5 dBm TX 25.8 mA @ 0 dBm <1µA in power down
  • RX (receiving frame, –50 dBm) 18.5 mA
  • TX 33.6 mA @ +5 dBm
  • TX 25.8 mA @ 0 dBm
  • <1µA in power down
  • General Clock output for single crystal systems RoHS compliant 5 × 5 mm QFN28 (RHD) package
  • Clock output for single crystal systems
  • RoHS compliant 5 × 5 mm QFN28 (RHD) package
  • Radio IEEE 802.15.4 compliant DSSS baseband modem with 250 kbps data rate Excellent receiver sensitivity (–98 dBm) Programmable output power up to +5 dBm RF frequency range 2394-2507 MHz Suitable for systems targeting compliance with worldwide radio frequency regulations: ETSI EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
  • IEEE 802.15.4 compliant DSSS baseband modem with 250 kbps data rate
  • Excellent receiver sensitivity (–98 dBm)
  • Programmable output power up to +5 dBm
  • RF frequency range 2394-2507 MHz
  • Suitable for systems targeting compliance with worldwide radio frequency regulations: ETSI EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
  • Microcontroller Support Digital RSSI/LQI support Automatic clear channel assessment for CSMA/CA Automatic CRC 768 bytes RAM for flexible buffering and security processing Fully supported MAC security 4 wire SPI 6 configurable IO pins Interrupt generator Frame filtering and processing engine Random number generator
  • Digital RSSI/LQI support
  • Automatic clear channel assessment for CSMA/CA
  • Automatic CRC
  • 768 bytes RAM for flexible buffering and security processing
  • Fully supported MAC security
  • 4 wire SPI
  • 6 configurable IO pins
  • Interrupt generator
  • Frame filtering and processing engine
  • Random number generator
  • Development Tools Reference design IEEE 802.15.4 MAC software ZigBee® stack software Fully equipped development kit Packet sniffer support in hardware
  • Reference design
  • IEEE 802.15.4 MAC software
  • ZigBee® stack software
  • Fully equipped development kit
  • Packet sniffer support in hardware

产品概述

The CC2520 is TI's second generation ZigBee®/ IEEE 802.15.4 RF transceiver for the 2.4 GHz unlicensed ISM band. This chip enables industrial grade applications by offering state-of-the-art selectivity/co-existence, excellent link budget, operation up to 125°C and low voltage operation.In addition, the CC2520 provides extensive hardware support for frame handling, data buffering, burst transmissions, data encryption, data authentication, clear channel assessment, link quality indication and frame timing information. These features reduce the load on the host controller.In a typical system, the CC2520 will be used together with a microcontroller and a few additional passive components.
查看全部

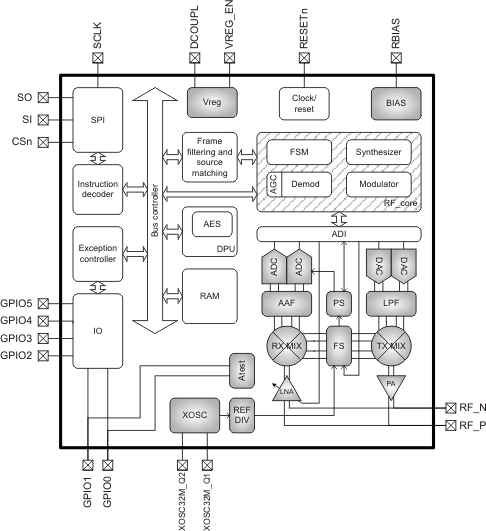

CC2520RHDT 电路图

CC2520RHDT 电路图

CC2520RHDT 电路图
