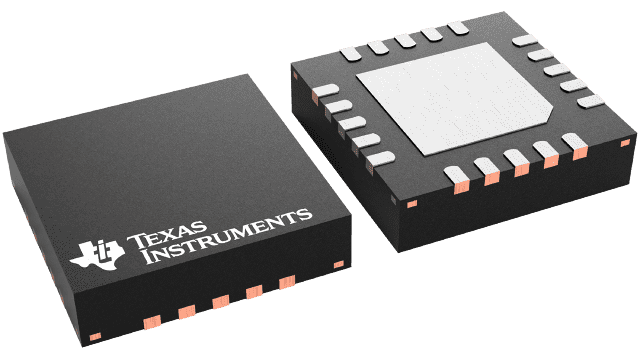

CC2500RGP

Texas Instruments RF 收发器
  • 封装：20-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$2.32752-$3.94

更新日期：2024-04-01

CC2500RGP

Texas Instruments RF 收发器

产品简介：为 2.4GHz ISM 频带内的低功耗无线应用而设计的低成本、低功耗 2.4GHz 射频收发器

查看详情
  • 封装：20-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$2.32752-$3.94

CC2500RGP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC2500RGP 中文资料属性参数

  • 标准包装：490
  • 类别：RF/IF 和 RFID
  • 家庭：RF 收发器
  • 系列：-
  • 频率：2.4GHz
  • 数据传输率 - 最大：500kBaud
  • 调制或协议：2-FSK，ASK，GFSK，MSK，OOK
  • 应用：ISM，SRD
  • 功率 - 输出：-30dBm ~ 10dBm
  • 灵敏度：-104dBm
  • 电源电压：1.8 V ~ 3.6 V
  • 电流 - 接收：17mA
  • 电流 - 传输：21.5mA @ 1 dBm
  • 数据接口：PCB，表面贴装
  • 存储容量：-
  • 天线连接器：PCB，表面贴装
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：20-VFQFN 裸露焊盘
  • 包装：托盘
  • 配用：296-24121-ND - DEV WRLSS TOOL FOR MSP430296-22903-ND - KIT EVAL MODULE FOR CC2500296-23077-ND - KIT DEV FOR CC2500/CC2550
  • 其它名称：296-19468

产品特性

  • RF Performance High sensitivity (-104 dBm at 2.4 kBaud, 1% packet error rate) Low current consumption (13.3 mA in RX, 250 kBaud, input well above sensitivity limit) Programmable output power up to +1 dBm Excellent receiver selectivity and blocking performance Programmable data rate from 1.2 to 500 kBaud Frequency range: 2400 - 2483.5 MHz
  • High sensitivity (-104 dBm at 2.4 kBaud, 1% packet error rate)
  • Low current consumption (13.3 mA in RX, 250 kBaud, input well above sensitivity limit)
  • Programmable output power up to +1 dBm
  • Excellent receiver selectivity and blocking performance
  • Programmable data rate from 1.2 to 500 kBaud
  • Frequency range: 2400 - 2483.5 MHz
  • Analog Features OOK, 2-FSK, GFSK, and MSK supported Suitable for frequency hopping and multichannel systems due to a fast settling frequency synthesizer with 90 us settling time Automatic Frequency Compensation (AFC) can be used to align the frequency synthesizer to the received centre frequency Integrated analog temperature sensor
  • OOK, 2-FSK, GFSK, and MSK supported
  • Suitable for frequency hopping and multichannel systems due to a fast settling frequency synthesizer with 90 us settling time
  • Automatic Frequency Compensation (AFC) can be used to align the frequency synthesizer to the received centre frequency
  • Integrated analog temperature sensor
  • Digital Features Flexible support for packet oriented systems: On-chip support for sync word detection, address check, flexible packet length, and automatic CRC handling Efficient SPI interface: All registers can be programmed with one "burst" transfer Digital RSSI output Programmable channel filter bandwidth Programmable Carrier Sense (CS) indicator Programmable Preamble Quality Indicator (PQI) for improved protection against false sync word detection in random noise Support for automatic Clear Channel Assessment (CCA) before transmitting (for listen-before-talk systems) Support for per-package Link Quality Indication (LQI) Optional automatic whitening and dewhitening of data
  • Flexible support for packet oriented systems: On-chip support for sync word detection, address check, flexible packet length, and automatic CRC handling
  • Efficient SPI interface: All registers can be programmed with one "burst" transfer
  • Digital RSSI output
  • Programmable channel filter bandwidth
  • Programmable Carrier Sense (CS) indicator
  • Programmable Preamble Quality Indicator (PQI) for improved protection against false sync word detection in random noise
  • Support for automatic Clear Channel Assessment (CCA) before transmitting (for listen-before-talk systems)
  • Support for per-package Link Quality Indication (LQI)
  • Optional automatic whitening and dewhitening of data
  • Low-Power Features 400 nA SLEEP mode current consumption Fast startup time: 240 us from SLEEP to RX or TX mode (measured on EM design) Wake-on-radio functionality for automatic low-power RX polling Separate 64-byte RX and TX data FIFOs (enables burst mode data transmission)
  • 400 nA SLEEP mode current consumption
  • Fast startup time: 240 us from SLEEP to RX or TX mode (measured on EM design)
  • Wake-on-radio functionality for automatic low-power RX polling
  • Separate 64-byte RX and TX data FIFOs (enables burst mode data transmission)
  • General Few external components: Complete onchip frequency synthesizer, no external filters or RF switch needed Green package: RoHS compliant and no antimony or bromine Small size (QLP 4x4 mm package, 20 pins) Suited for systems compliant with EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STDT66 (Japan) Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols
  • Few external components: Complete onchip frequency synthesizer, no external filters or RF switch needed
  • Green package: RoHS compliant and no antimony or bromine
  • Small size (QLP 4x4 mm package, 20 pins)
  • Suited for systems compliant with EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STDT66 (Japan)
  • Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols
  • Applications 2400-2483.5 MHz ISM/SRD band systems Consumer Electronics Wireless game controllers Wireless audio Wireless keyboard and mouse RF enabled remote controls
  • 2400-2483.5 MHz ISM/SRD band systems
  • Consumer Electronics
  • Wireless game controllers
  • Wireless audio
  • Wireless keyboard and mouse
  • RF enabled remote controls

产品概述

The CC2500 is a low-cost 2.4 GHz transceiver designed for very low-power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band.The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 500 kBaud.CC2500 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication and wake-on-radio.The main operating parameters and the 64-byte transmit/receive FIFOs of CC2500 can be controlled via an SPI interface. In a typical system, the CC2500 will be used together with a microcontroller and a few additional passive components.
查看全部

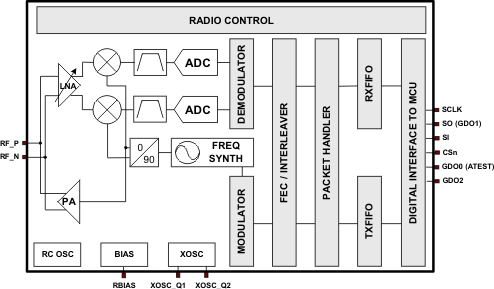

CC2500RGP 电路图

CC2500RGP 电路图

CC2500RGP 电路图
