产品简介：适用于低功耗无线应用的高度集成式多通道无线发送器
查看详情CC1150RGVT 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
VQFN-16(4x4)
2022+ -
12000
-
上海市
-
-
-
原装可开发票
CC1150RGVT 中文资料属性参数
- 现有数量：0现货查看交期
- 价格：1 : ￥22.82000剪切带（CT）250 : ￥18.10480卷带（TR）
- 系列：-
- 包装：卷带（TR）剪切带（CT）? 得捷定制卷带
- 产品状态：在售
- 频率：300MHz ~ 348MHz，400MHz ~ 464MHz，800MHz ~ 928MHz
- 应用：通用
- 调制或协议：UHF
- 数据速率（最大值）：500kBaud
- 功率 - 输出：10dBm
- 电流 - 传输：29mA
- 数据接口：SPI
- 天线连接器：-
- 存储容量：-
- 特性：-
- 电压 - 供电：1.8V ~ 3.6V
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装型
- 封装/外壳：16-VQFN 裸露焊盘
- 供应商器件封装：16-VQFN（4x4）
产品特性
- Small Size QLP 4-mm × 4-mm Package, 16 Pins
- QLP 4-mm × 4-mm Package, 16 Pins
- True Single Chip UHF RF Transmitter
- Frequency Bands 300 to 348 MHz 400 to 464 MHz 800 to 928 MHz
- 300 to 348 MHz
- 400 to 464 MHz
- 800 to 928 MHz
- Programmable Data Rate Up to 500 kBaud
- Low Current Consumption
- Programmable Output Power Up to +10 dBm for All Supported Frequencies
- Programmable Baseband Modulator
- Ideal For Multi-channel Operation
- Very Few External Components Completely On-chip Frequency Synthesizer No External Filters Needed
- Completely On-chip Frequency Synthesizer
- No External Filters Needed
- Configurable Packet Handling Hardware
- Suitable for Frequency Hopping Systems Due to a Fast Settling Frequency Synthesizer
- Optional Forward Error Correction with Interleaving
- 64-byte TX Data FIFO
- Suited for Systems Compliant with EN 300 220 and FCC CFR Part 15
- Many Powerful Digital Features Allow a High- performance RF system to be made Using an Inexpensive Microcontroller
- Efficient SPI interface: All Registers Can be Programmed With One "Burst" Transfer
- Integrated Analog Temperature Sensor
- Lead-free “Green” Package
- Flexible Support for Packet Oriented Systems On-chip Support for Sync-Word Insertion, Flexible Packet Length and Automatic CRC Handling
- On-chip Support for Sync-Word Insertion, Flexible Packet Length and Automatic CRC Handling
- OOK and Flexible ASK Shaping Supported
- 2-FSK, GFSK and MSK Supported
- Optional Automatic Whitening of Data
- Support for Asynchronous Transparent Transmit Mode for Backwards Compatibility with Existing Radio Communication Protocols
产品概述
The CC1150 is a true single-chip UHF transmitter designed for very low power wireless
applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and
SRD (Short Range Device) frequency bands at 315-, 433-, 868-, and 915-MHz, but can easily be
programmed for operation at other frequencies in the 300 to 348 MHz, 400 to 464 MHz and 800 to 928
MHz bands.The RF transmitter is integrated with a highly configurable baseband modulator. The
modulator supports various modulation formats and has a configurable data rate up to 500 kBaud. The
CC1150 device provides extensive hardware support for packet handling, data buffering and burst
transmissions.The main operating parameters and the 64-byte transmit FIFO of CC1150 can be controlled
via an SPI interface. In a typical system, the CC1150 device will be used together with a
microcontroller and a few additional passive components.CC1150 is part of the SmartRF™ technology platform
based on 0.18-µm CMOS technology from Texas Instruments.

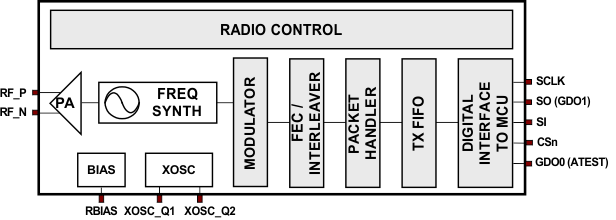

CC1150RGVT 电路图
