CC1101QRHBRG4Q1

Texas Instruments RF 收发器
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$4.587-$8.51

更新日期：2024-04-01

CC1101QRHBRG4Q1

Texas Instruments RF 收发器

产品简介：低成本低功耗低于 1GHz 的射频收发器

查看详情
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$4.587-$8.51

CC1101QRHBRG4Q1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC1101QRHBRG4Q1 中文资料属性参数

  • 标准包装：1
  • 类别：RF/IF 和 RFID
  • 家庭：RF 收发器
  • 系列：-
  • 频率：310MHz ~ 348MHz，387MHz ~ 464MHz，779MHz ~ 928MHz
  • 数据传输率 - 最大：250kbps
  • 调制或协议：FSK，GFSK，OOK
  • 应用：ISM，SRD
  • 功率 - 输出：10dBm
  • 灵敏度：-111dBm
  • 电源电压：1.8 V ~ 3.6 V
  • 电流 - 接收：18.8mA
  • 电流 - 传输：34mA
  • 数据接口：PCB，表面贴装
  • 存储容量：-
  • 天线连接器：PCB，表面贴装
  • 工作温度：-40°C ~ 125°C
  • 封装/外壳：32-VFQFN 裸露焊盘
  • 包装：?
  • 其它名称：296-24870-6

产品特性

  • Qualification in Accordance With AEC-Q100 Grade 1
  • Extended Temperature Range Up To 125°C
  • Radio-Frequency (RF) Performance High Sensitivity (–114 dBm at 1.2 kBaud, 315 MHz, 1% Packet Error Rate) Low Current Consumption (15.5 mA in Receive, 1.2 kBaud, 315 MHz)
  • High Sensitivity (–114 dBm at 1.2 kBaud, 315 MHz, 1% Packet Error Rate)
  • Low Current Consumption (15.5 mA in Receive, 1.2 kBaud, 315 MHz)
  • Programmable Output Power up to +10 dBm for All Supported Frequencies
  • Excellent Receiver Selectivity and Blocking Performance
  • Programmable Data Rate From 1.2 kBaud to 250 kBaud
  • Frequency Bands: 310 MHz to 348 MHz, 420 MHz to 450 MHz, and 779 MHz to 928 MHz
  • Analog Features 2-FSK, GFSK, and MSK Supported, as Well as OOK and Flexible ASK Shaping Suitable for Frequency-Hopping Systems Due to a Fast Settling Frequency Synthesizer: 90-µs Settling Time Automatic Frequency Compensation (AFC) Can Align Frequency Synthesizer to Received Center Frequency Integrated Analog Temperature Sensor
  • 2-FSK, GFSK, and MSK Supported, as Well as OOK and Flexible ASK Shaping
  • Suitable for Frequency-Hopping Systems Due to a Fast Settling Frequency Synthesizer: 90-µs Settling Time
  • Automatic Frequency Compensation (AFC) Can Align Frequency Synthesizer to Received Center Frequency
  • Integrated Analog Temperature Sensor
  • Digital Features Flexible Support for Packet-Oriented Systems: On-Chip Support for Sync Word Detection, Address Check, Flexible Packet Length, and Automatic CRC Handling Efficient SPI Interface: All Registers Can Be Programmed With One Burst Transfer Digital RSSI Output Programmable Channel Filter Bandwidth Programmable Carrier Sense (CS) Indicator Programmable Preamble Quality Indicator (PQI) for Improved Protection Against False Sync Word Detection in Random Noise Support for Automatic Clear Channel Assessment (CCA) Before Transmitting (for Listen-Before-Talk Systems) Support for Per-Package Link Quality Indication (LQI) Optional Automatic Whitening and Dewhitening of Data
  • Flexible Support for Packet-Oriented Systems: On-Chip Support for Sync Word Detection, Address Check, Flexible Packet Length, and Automatic CRC Handling
  • Efficient SPI Interface: All Registers Can Be Programmed With One Burst Transfer
  • Digital RSSI Output
  • Programmable Channel Filter Bandwidth
  • Programmable Carrier Sense (CS) Indicator
  • Programmable Preamble Quality Indicator (PQI) for Improved Protection Against False Sync Word Detection in Random Noise
  • Support for Automatic Clear Channel Assessment (CCA) Before Transmitting (for Listen-Before-Talk Systems)
  • Support for Per-Package Link Quality Indication (LQI)
  • Optional Automatic Whitening and Dewhitening of Data
  • Low-Power Features Fast Startup Time: 240 µs From Sleep to Receive (RX) or Transmit (TX) Mode Wake-On-Radio Functionality for Automatic Low-Power RX Polling Separate 64-Byte RX and TX Data FIFOs (Enables Burst Mode Data Transmission)
  • Fast Startup Time: 240 µs From Sleep to Receive (RX) or Transmit (TX) Mode
  • Wake-On-Radio Functionality for Automatic Low-Power RX Polling
  • Separate 64-Byte RX and TX Data FIFOs (Enables Burst Mode Data Transmission)
  • General Few External Components: Completely On-Chip Frequency Synthesizer, No External Filters or RF Switch Needed Green Package: RoHS Compliant and No Antimony or Bromine Small Size QFN 5-mm×5-mm 32-Pin Package Suited for Systems Compliant With EN 300 220 (Europe) and FCC CFR Part 15 (US) Support for Asynchronous and Synchronous Serial Receive/Transmit Mode for Backward Compatibility With Existing Radio Communication Protocols Designed for Automotive Applications
  • Few External Components: Completely On-Chip Frequency Synthesizer, No External Filters or RF Switch Needed
  • Green Package: RoHS Compliant and No Antimony or Bromine
  • Small Size QFN 5-mm×5-mm 32-Pin Package
  • Suited for Systems Compliant With EN 300 220 (Europe) and FCC CFR Part 15 (US)
  • Support for Asynchronous and Synchronous Serial Receive/Transmit Mode for Backward Compatibility With Existing Radio Communication Protocols
  • Designed for Automotive Applications
  • APPLICATIONS Ultra-Low-Power Wireless Applications in the 315/433/868/915-MHz ISM/SRD Bands Remote Keyless Entry Systems Passive Entry/Passive Start Systems Vehicle Service Links Garage Door Opener TPMS Systems
  • Ultra-Low-Power Wireless Applications in the 315/433/868/915-MHz ISM/SRD Bands
  • Remote Keyless Entry Systems
  • Passive Entry/Passive Start Systems
  • Vehicle Service Links
  • Garage Door Opener
  • TPMS Systems

产品概述

The CC11x1-Q1 device family is designed for very low-power wireless applications. The circuits are mainly intended for the Industrial, Scientific and Medical (ISM) and Short Range Device (SRD) frequency bands at 315 MHz, 433 MHz, 868 MHz, and 915 MHz, but can easily be programmed for operation at other frequencies in the 310-MHz to 348-MHz, 420-MHz to 450-MHz, and 779-MHz to 928-MHz bands.The devices integrate a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 250 kBaud. CC11x1-Q1 family provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio. The main operating parameters and the 64-byte transmit/receive FIFOs can be controlled via an SPI interface. In a typical system, the devices are used together with a microcontroller and a few additional passive components.
查看全部

CC1101QRHBRG4Q1 数据手册

数据手册 说明 数量 操作
CC1101QRHBRG4Q1

IC RF TxRx Only General ISM < 1GHz 310MHz ~ 348MHz, 420MHz ~ 450MHz, 779MHz ~ 928MHz 32-VFQFN Exposed Pad

 94页,1.57M 查看

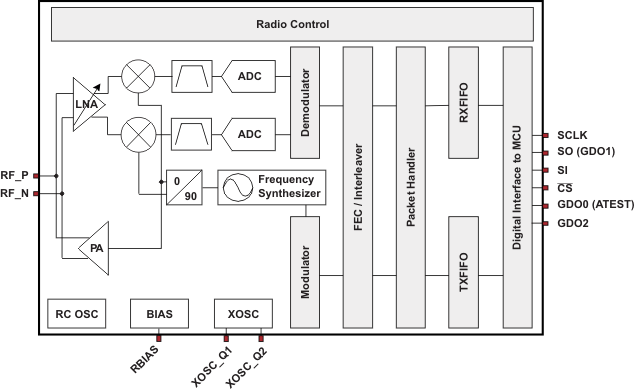

CC1101QRHBRG4Q1 电路图

CC1101QRHBRG4Q1 电路图

CC1101QRHBRG4Q1 电路图
