产品简介:Sitara 处理器: Arm Cortex-A8、3D 图形、HDMI
查看详情AM3894CCYG120 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI
-
原厂原装
2318+ -
9200
-
合肥
-
-
-
科大讯飞战略投资企业
AM3894CCYG120 中文资料属性参数
- 现有数量:0现货查看交期
- 价格:1 : ¥599.26000托盘
- 系列:Sitara?
- 包装:托盘
- 产品状态:在售
- 核心处理器:ARM? Cortex?-A8
- 内核数/总线宽度:1 核,32 位
- 速度:1.2GHz
- 协处理器/DSP:多媒体;NEON? SIMD
- RAM 控制器:DDR2,DDR3
- 图形加速:是
- 显示与接口控制器:HDMI,HDVPSS
- 以太网:10/100/1000Mbps(2)
- SATA:SATA 3Gbps(1)
- USB:USB 2.0 + PHY(2)
- 电压 - I/O:1.8V,3.3V
- 工作温度:0°C ~ 95°C(TJ)
- 安全特性:-
- 安装类型:表面贴装型
- 封装/外壳:1031-BFBGA,FCBGA
- 供应商器件封装:1031-FCBGA(25x25)
产品特性
- High-Performance Sitara ARM Microprocessors (MPUs) ARMCortex-A8 RISC Processor Up to 1.20 GHz
- ARMCortex-A8 RISC Processor Up to 1.20 GHz
- Up to 1.20 GHz
- ARM Cortex-A8 Core ARMv7 Architecture In-Order, Dual-Issue, Superscalar Processor Core NEON Multimedia Architecture Supports Integer and Floating Point (VFPv3-IEEE754 Compliant)Jazelle RCT Execution Environment
- ARMv7 Architecture In-Order, Dual-Issue, Superscalar Processor Core NEON Multimedia Architecture
- In-Order, Dual-Issue, Superscalar Processor Core
- NEON Multimedia Architecture
- Supports Integer and Floating Point (VFPv3-IEEE754 Compliant)Jazelle RCT Execution Environment
- Jazelle RCT Execution Environment
- ARM Cortex-A8 Memory Architecture 32-KB Instruction and Data Caches 256-KB L2 Cache 64-KB RAM, 48-KB of Boot ROM
- 32-KB Instruction and Data Caches
- 256-KB L2 Cache
- 64-KB RAM, 48-KB of Boot ROM
- 512KB of On-Chip Memory Controller (OCMC) RAM
- SGX530 3D Graphics Engine (Available Only on the AM3894 Device) Delivers up to 30 MTriangles per Second Universal Scalable Shader Engine Direct3D Mobile, OpenGL ES 1.1 and 2.0, OpenVG 1.1, OpenMax API Support Advanced Geometry DMA Driven Operation Programmable HQ Image Anti-Aliasing
- Delivers up to 30 MTriangles per Second
- Universal Scalable Shader Engine
- Direct3D Mobile, OpenGL ES 1.1 and 2.0, OpenVG 1.1, OpenMax API Support
- Advanced Geometry DMA Driven Operation
- Programmable HQ Image Anti-Aliasing
- Endianness ARM Instructions and Data – Little Endian
- ARM Instructions and Data – Little Endian
- HD Video Processing Subsystem (HDVPSS) Two 165-MHz HD Video Capture Channels One 16-Bit or 24-Bit and One 16-Bit Channel Each Channel Splittable Into Dual 8-Bit Capture Channels Two 165-MHz HD Video Display Channels One 16-Bit, 24-Bit, 30-Bit Channel and One 16-Bit Channel Simultaneous SD and HD Analog Output Digital HDMI 1.3 Transmitter with PHY with HDCP up to 165-MHz Pixel Clock Three Graphics Layers
- Two 165-MHz HD Video Capture Channels One 16-Bit or 24-Bit and One 16-Bit Channel Each Channel Splittable Into Dual 8-Bit Capture Channels
- One 16-Bit or 24-Bit and One 16-Bit Channel
- Each Channel Splittable Into Dual 8-Bit Capture Channels
- Two 165-MHz HD Video Display Channels One 16-Bit, 24-Bit, 30-Bit Channel and One 16-Bit Channel
- One 16-Bit, 24-Bit, 30-Bit Channel and One 16-Bit Channel
- Simultaneous SD and HD Analog Output
- Digital HDMI 1.3 Transmitter with PHY with HDCP up to 165-MHz Pixel Clock
- Three Graphics Layers
- Dual 32-Bit DDR2 and DDR3 SDRAM Interfaces Supports up to DDR2-800 and DDR3-1600 Up to Eight x8 Devices Total 2GB of Total Address Space Dynamic Memory Manager (DMM) Programmable Multi-Zone Memory Mapping and Interleaving Enables Efficient 2D Block Accesses Supports Tiled Objects in 0°, 90°, 180°, or 270° Orientation and Mirroring Optimizes Interlaced Accesses
- Supports up to DDR2-800 and DDR3-1600
- Up to Eight x8 Devices Total
- 2GB of Total Address Space
- Dynamic Memory Manager (DMM) Programmable Multi-Zone Memory Mapping and Interleaving Enables Efficient 2D Block Accesses Supports Tiled Objects in 0°, 90°, 180°, or 270° Orientation and Mirroring Optimizes Interlaced Accesses
- Programmable Multi-Zone Memory Mapping and Interleaving
- Enables Efficient 2D Block Accesses
- Supports Tiled Objects in 0°, 90°, 180°, or 270° Orientation and Mirroring
- Optimizes Interlaced Accesses
- One PCI Express (PCIe) 2.0 Port with Integrated PHY Single Port with 1 or 2 Lanes at 5.0 GT per Second Configurable as Root Complex or Endpoint
- Single Port with 1 or 2 Lanes at 5.0 GT per Second
- Configurable as Root Complex or Endpoint
- Serial ATA (SATA) 3.0 Gbps Controller with Integrated PHYs Direct Interface for Two Hard Disk Drives Hardware-Assisted Native Command Queuing (NCQ) from up to 32 Entries Supports Port Multiplier and Command-Based Switching
- Direct Interface for Two Hard Disk Drives
- Hardware-Assisted Native Command Queuing (NCQ) from up to 32 Entries
- Supports Port Multiplier and Command-Based Switching
- Two 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet MACs (EMAC) IEEE 802.3 Compliant (3.3-V I/O Only) MII and GMII Media Independent Interfaces Management Data I/O (MDIO) Module
- IEEE 802.3 Compliant (3.3-V I/O Only)
- MII and GMII Media Independent Interfaces
- Management Data I/O (MDIO) Module
- Dual USB 2.0 Ports with Integrated PHYs USB 2.0 High-Speed and Full-Speed Client USB 2.0 High-Speed, Full-Speed, and Low-Speed Host Supports Endpoints 0-15
- USB 2.0 High-Speed and Full-Speed Client
- USB 2.0 High-Speed, Full-Speed, and Low-Speed Host
- Supports Endpoints 0-15
- General-Purpose Memory Controller (GPMC) 8-Bit and 16-Bit Multiplexed Address and Data Bus Up to 6 Chip Selects with up to 256-MB Address Space per Chip Select Pin Glueless Interface to NOR Flash, NAND Flash (with BCH and Hamming Error Code Detection), SRAM and Pseudo-SRAM Error Locator Module (ELM) Outside of GPMC to Provide up to 16-Bit and 512-Byte Hardware ECC for NAND Flexible Asynchronous Protocol Control for Interface to FPGA, CPLD, ASICs
- 8-Bit and 16-Bit Multiplexed Address and Data Bus
- Up to 6 Chip Selects with up to 256-MB Address Space per Chip Select Pin
- Glueless Interface to NOR Flash, NAND Flash (with BCH and Hamming Error Code Detection), SRAM and Pseudo-SRAM
- Error Locator Module (ELM) Outside of GPMC to Provide up to 16-Bit and 512-Byte Hardware ECC for NAND
- Flexible Asynchronous Protocol Control for Interface to FPGA, CPLD, ASICs
- Enhanced Direct-Memory-Access (EDMA) Controller Four Transfer Controllers 64 Independent DMA Channels and 8 Quick DMA (QDMA) Channels
- Four Transfer Controllers
- 64 Independent DMA Channels and 8 Quick DMA (QDMA) Channels
- Seven 32-Bit General-Purpose Timers
- One System Watchdog Timer
- Three Configurable UART, IrDA, and CIR Modules UART0 with Modem Control Signals Supports up to 3.6864 Mbps UART SIR, MIR, FIR (4.0 MBAUD), and CIR
- UART0 with Modem Control Signals
- Supports up to 3.6864 Mbps UART
- SIR, MIR, FIR (4.0 MBAUD), and CIR
- One 40-MHz Serial Peripheral Interface (SPI) with Four Chip Selects
- SD and SDIO Serial Interface (1-Bit and 4-Bit)
- Dual Inter-Integrated Circuit (I2C bus) Ports
- Three Multichannel Audio Serial Ports (McASPs) One Six-Serializer Transmit and Receive Port Two Dual-Serializer Transmit and Receive Ports DIT-Capable For SDIF and PDIF (All Ports)
- One Six-Serializer Transmit and Receive Port
- Two Dual-Serializer Transmit and Receive Ports
- DIT-Capable For SDIF and PDIF (All Ports)
- Multichannel Buffered Serial Port (McBSP) Transmit and Receive Clocks up to 48 MHz Two Clock Zones and Two Serial Data Pins Supports TDM, I2S, and Similar Formats
- Transmit and Receive Clocks up to 48 MHz
- Two Clock Zones and Two Serial Data Pins
- Supports TDM, I2S, and Similar Formats
- Real-Time Clock (RTC) One-Time or Periodic Interrupt Generation
- One-Time or Periodic Interrupt Generation
- Up to 64 General-Purpose I/O (GPIO) Pins
- On-Chip ARM ROM Bootloader (RBL)
- Power, Reset, and Clock Management SmartReflex Technology (Level 2) Seven Independent Core Power Domains Clock Enable and Disable Control For Subsystems and Peripherals
- SmartReflex Technology (Level 2)
- Seven Independent Core Power Domains
- Clock Enable and Disable Control For Subsystems and Peripherals
- IEEE 1149.1 (JTAG) and IEEE 1149.7 (cJTAG) Compatible
- Via Channel Technology Enables use of 0.8-mm Design Rules
- 40-nm CMOS Technology
- 3.3-V Single-Ended LVCMOS I/Os (Except for DDR3 at 1.5 V, DDR2 at 1.8 V, and DEV_CLKIN at 1.8 V)
产品概述
The AM389x Sitara ARM processors are a
highly integrated, programmable platform that leverages TI's
Sitara technology to meet the processing needs of the following
applications: single-board computing, network and communications
processing, industrial automation, human machine interface, and interactive point-of-service
kiosks. The device enables original-equipment manufacturers (OEMs) and original-design
manufacturers (ODMs) to quickly bring to market devices featuring robust operating systems support,
rich user interfaces, and high processing performance through the maximum flexibility of a fully
integrated mixed processor solution. The device combines high-performance ARM processing with a highly
integrated peripheral set.The ARM Cortex-A8 32-bit RISC processor
with NEON floating-point extension includes: 32KB of instruction cache; 32KB of data cache; 256KB
of L2 cache;
and 64KB of RAM. The rich peripheral set provides the ability to control external peripheral devices and
communicate with external processors. For details on each peripheral, see the related sections in
this document and the associated peripheral reference guides. The peripheral set includes: HD video
processing subsystem (HDVPSS),
which provides output of simultaneous HD and SD analog video and dual HD video inputs; up to two Gigabit Ethernet MACs (10 Mbps,100, Mbps,
1000 Mbps) with GMII and MDIO interface; two USB ports with integrated 2.0 PHY; PCIe port x2 lanes
GEN2 compliant interface, which allows the device to act as a PCIe root complex or device
endpoint; one 6-channel McASP audio serial
port (with DIT mode); two dual-channel McASP audio serial ports (with DIT mode); one McBSP
multichannel buffered serial port; three UARTs with IrDA and CIR support; SPI serial interface;
SD and SDIO serial interface; two
I2C master and slave interfaces; up to 64 GPIO pins;
seven 32-bit timers; system watchdog timer; dual DDR2 and DDR3 SDRAM interface; flexible 8-bit and 16-bit
asynchronous memory interface; and up to two SATA interfaces for external storage on two disk
drives or more with the use of a port multiplier.The device also includes an SGX530 3D graphics engine (available only on the AM3894 device) to off-load many video and imaging processing tasks from the core.
Additionally, the device has a complete set of development tools for
the ARM, including C compilers and a Microsoft
Windows debugger interface for
visibility into source code execution.The device package has been specially engineered with Via Channel technology. This
technology allows use of 0.8-mm pitch PCB feature sizes in this 0.65-mm pitch package, and
substantially reduces PCB costs. Via Channel technology also allows PCB routing in only two signal
layers due to the increased layer efficiency of the Via Channel BGA technology.

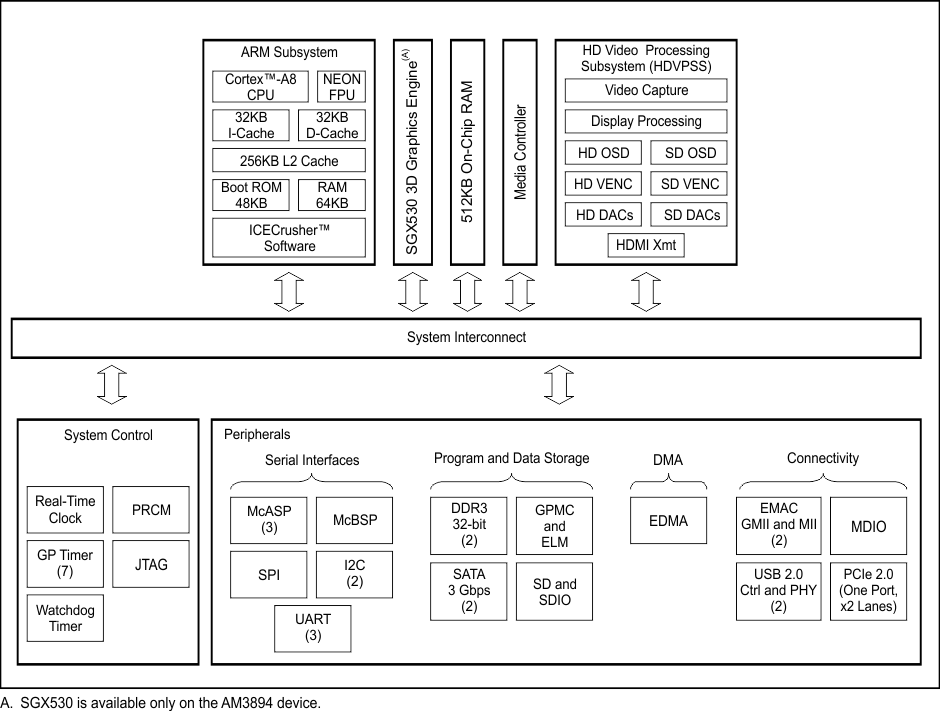

AM3894CCYG120 电路图
