- 封装：48-TQFP
- RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式：带卷 (TR)
- 参考价格：$26.944
更新日期：2024-04-01 00:04:00
产品简介：具有参考、伪双极和全差动输入的 16 位 4MSPS 并行 ADC
查看详情- 封装：48-TQFP
- RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式：带卷 (TR)
- 参考价格：$26.944
ADS8422IPFBR 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
TQFP-48(7x7)
2022+ -
12000
-
上海市
-
-
-
原装可开发票
ADS8422IPFBR 中文资料属性参数
- 产品培训模块：Data Converter Basics
- 标准包装：1,000
- 类别：集成电路 (IC)
- 家庭：数据采集 - 模数转换器
- 系列：-
- 位数：16
- 采样率（每秒）：4M
- 数据接口：并联
- 转换器数目：1
- 功率耗散（最大）：155mW
- 电压电源：模拟和数字
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装
- 封装/外壳：48-TQFP
- 供应商设备封装：48-TQFP（7x7）
- 包装：带卷 (TR)
- 输入数目和类型：1 个伪差分，双极
- 配用：296-23030-ND - EVAL MODULE FOR ADS8422-ADC296-15831-ND - DSP STARTER KIT FOR TMS320C6713296-18350-ND - KIT 5-6K INTERFACE BOARD
产品特性
- Fully Differential Input with Pseudo-Bipolar Input Range -4 V to +4 V
- 16-Bit NMC at 4 MSPS
- 1 LSB INL Typ
- 92dB SNR, -102dB THD Typ with 100-kHz Input
- Internal 4.096-V Reference and Reference Buffer
- REFIN/2 Available for Setting Analog Input Common-Mode Voltage
- Zero Latency
- High-Speed Parallel Interface
- Single Supply Operation Capability
- Low Power: 155 mW at 4 MHz Typ, Flexible Power-Down Scheme
- Pin-Out Similar to ADS8412/8402
- 48-Pin 9×9 TQFP Package
- APPLICATIONSDWDM InstrumentationHigh-Speed, High-Resolution, Zero Latency Data Acquisition SystemsTransducer InterfaceMedical InstrumentsSpectrum Analysis ATE
- DWDM
- Instrumentation
- High-Speed, High-Resolution, Zero Latency Data Acquisition Systems
- Transducer Interface
- Medical Instruments
- Spectrum Analysis
- ATE
产品概述
The ADS8422 is a 16-bit, 4-MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based multi-bit SAR A/D converter with inherent sample and hold. This converter includes a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles if necessary. The ADS8422 has a fully differential, pseudo-bipolar input. It is available in a 48-lead TQFP package and is characterized over the industrial -40°C to +85°C temperature range.

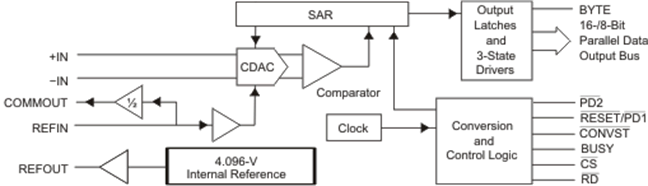

ADS8422IPFBR 电路图
ADS8422IPFBR 电路图
