ADS1256IDBR

Texas Instruments 数据采集 - 模数转换器
  • 封装：28-SSOP（0.209"，5.30mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$11.9472-$8.4443

更新日期：2024-04-01 00:04:00

ADS1256IDBR

Texas Instruments 数据采集 - 模数转换器

产品简介：适用于工厂自动化和过程控制且具有 PGA 的 24 位、30kSPS、8 通道 Δ-Σ ADC

查看详情
  • 封装：28-SSOP（0.209"，5.30mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$11.9472-$8.4443

ADS1256IDBR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADS1256IDBR 中文资料属性参数

  • 产品培训模块：Data Converter Basics
  • 视频文件：Nuts and Bolts of the Delta-Sigma Converter
  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：数据采集 - 模数转换器
  • 系列：-
  • 位数：24
  • 采样率（每秒）：2.5k ~ 30k
  • 数据接口：串行，SPI?
  • 转换器数目：1
  • 功率耗散（最大）：57mW
  • 电压电源：模拟和数字
  • 工作温度：-40°C ~ 105°C
  • 安装类型：表面贴装
  • 封装/外壳：28-SSOP（0.209"，5.30mm 宽）
  • 供应商设备封装：28-SSOP
  • 包装：®
  • 输入数目和类型：8 个单端，单极；4 个差分，单极
  • 其它名称：296-25898-6

产品特性

  • 24 Bits, No Missing Codes All Data Rates and PGA Settings
  • All Data Rates and PGA Settings
  • Up to 23 Bits Noise-Free Resolution
  • ±0.0010% Nonlinearity (max)
  • Data Output Rates to 30kSPS
  • Fast Channel Cycling 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz
  • 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz
  • One-Shot Conversions with Single-Cycle Settling
  • Flexible Input Multiplexer with Sensor Detect Four Differential Inputs (ADS1256 only) Eight Single-Ended Inputs (ADS1256 only)
  • Four Differential Inputs (ADS1256 only)
  • Eight Single-Ended Inputs (ADS1256 only)
  • Chopper-Stabilized Input Buffer
  • Low-Noise PGA: 27nV Input-Referred Noise
  • Self and System Calibration for All PGA Settings
  • 5V Tolerant SPI™-Compatible Serial Interface
  • Analog Supply: 5V
  • Digital Supply: 1.8V to 3.6V
  • Power Dissipation As Low as 38mW in Normal Mode 0.4mW in Standby Mode
  • As Low as 38mW in Normal Mode
  • 0.4mW in Standby Mode

产品概述

The ADS1255 and ADS1256 are extremely low-noise, 24-bit analog-to-digital (A/D) converters. They provide complete high-resolution measurement solutions for the most demanding applications.The converter is comprised of a 4th-order, delta-sigma (ΔΣ) modulator followed by a programmable digital filter. A flexible input multiplexer handles differential or single-ended signals and includes circuitry to verify the integrity of the external sensor connected to the inputs. The selectable input buffer greatly increases the input impedance and the low-noise programmable gain amplifier (PGA) provides gains from 1 to 64 in binary steps. The programmable filter allows the user to optimize between resolution of up to 23 bits noise-free and data rate of up to 30k samples per second (SPS). The converters offer fast channel cycling for measuring multiplexed inputs and can also perform one-shot conversions that settle in just a single cycle.Communication is handled over an SPI-compatible serial interface that can operate with a 2-wire connection. Onboard calibration supports both self and system correction of offset and gain errors for all the PGA settings. Bidirectional digital I/Os and a programmable clock output driver are provided for general use. The ADS1255 is packaged in an SSOP-20, and the ADS1256 in an SSOP-28.
查看全部

ADS1256IDBR 数据手册

数据手册 说明 数量 操作
ADS1256IDBR

Very Low Noise, 24-Bit Analog-to-Digital Converter

 39 Pages页,428K 查看
ADS1256IDBR

SBAS288D ? JUNE 2003 ? REVISED AUGUST 2004              FEATURES  24 Bits, No Missing Codes ? All Data Rates and PGA Settings  Up to 23 Bits Noise-Free Resolution  ±0.0010% Nonlinearity (max)  Data Output Rates to 30kSPS  Fast Channel Cycling ? 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz  One-Shot Conversions with Single-Cycle Settling  Flexible Input Multiplexer with Sensor Detect ? Four Differential Inputs (ADS1256 only) ? Eight Single-Ended Inputs (ADS1256 only)  Chopper-Stabilized Input Buffer  Low-Noise PGA: 27nV Input-Referred Noise  Self and System Calibration for All PGA Settings  5V Tolerant SPI?-Compatible Serial Interface  Analog Supply: 5V  Digital Supply: 1.8V to 3.6V  Power Dissipation ? As Low as 38mW in Normal Mode ? 0.4mW in Standby Mode APPLICATIONS  Weigh Scales  Scientific Instrumentation  Industrial Process Control  Medical Equipment  Test and Measurement DESCRIPTION The ADS125

 39页,423K 查看
ADS1256IDBR

SBAS288K ? JUNE 2003 ? REVISED SEPTEMBER 2013 Very Low Noise, 24-Bit Analog-to-Digital Converter ADS1255 ADS1256 FEATURES  24 Bits, No Missing Codes ? All Data Rates and PGA Settings  Up to 23 Bits Noise-Free Resolution  ±0.0010% Nonlinearity (max)  Data Output Rates to 30kSPS  Fast Channel Cycling ? 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz  One-Shot Conversions with Single-Cycle Settling  Flexible Input Multiplexer with Sensor Detect ? Four Differential Inputs (ADS1256 only) ? Eight Single-Ended Inputs (ADS1256 only)  Chopper-Stabilized Input Buffer  Low-Noise PGA: 27nV Input-Referred Noise  Self and System Calibration for All PGA Settings  5V Tolerant SPI? -Compatible Serial Interface  Analog Supply: 5V  Digital Supply: 1.8V to 3.6V  Power Dissipation ? As Low as 38mW in Normal Mode ? 0.4mW in Standby Mode APPLICATIONS  Scientific Instrumentation  Industrial Process Control  Medical Equipment  Test and Measurement  Weigh Scales DESCRIPTION The A

 45页,1001K 查看
ADS1256IDBR_664

SBAS288K ? JUNE 2003 ? REVISED SEPTEMBER 2013 Very Low Noise, 24-Bit Analog-to-Digital Converter ADS1255 ADS1256 FEATURES  24 Bits, No Missing Codes ? All Data Rates and PGA Settings  Up to 23 Bits Noise-Free Resolution  ±0.0010% Nonlinearity (max)  Data Output Rates to 30kSPS  Fast Channel Cycling ? 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz  One-Shot Conversions with Single-Cycle Settling  Flexible Input Multiplexer with Sensor Detect ? Four Differential Inputs (ADS1256 only) ? Eight Single-Ended Inputs (ADS1256 only)  Chopper-Stabilized Input Buffer  Low-Noise PGA: 27nV Input-Referred Noise  Self and System Calibration for All PGA Settings  5V Tolerant SPI? -Compatible Serial Interface  Analog Supply: 5V  Digital Supply: 1.8V to 3.6V  Power Dissipation ? As Low as 38mW in Normal Mode ? 0.4mW in Standby Mode APPLICATIONS  Scientific Instrumentation  Industrial Process Control  Medical Equipment  Test and Measurement  Weigh Scales DESCRIPTION The A

 45页,1001K 查看
ADS1256IDBR_664

SBAS288D ? JUNE 2003 ? REVISED AUGUST 2004              FEATURES  24 Bits, No Missing Codes ? All Data Rates and PGA Settings  Up to 23 Bits Noise-Free Resolution  ±0.0010% Nonlinearity (max)  Data Output Rates to 30kSPS  Fast Channel Cycling ? 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz  One-Shot Conversions with Single-Cycle Settling  Flexible Input Multiplexer with Sensor Detect ? Four Differential Inputs (ADS1256 only) ? Eight Single-Ended Inputs (ADS1256 only)  Chopper-Stabilized Input Buffer  Low-Noise PGA: 27nV Input-Referred Noise  Self and System Calibration for All PGA Settings  5V Tolerant SPI?-Compatible Serial Interface  Analog Supply: 5V  Digital Supply: 1.8V to 3.6V  Power Dissipation ? As Low as 38mW in Normal Mode ? 0.4mW in Standby Mode APPLICATIONS  Weigh Scales  Scientific Instrumentation  Industrial Process Control  Medical Equipment  Test and Measurement DESCRIPTION The ADS125

 39页,423K 查看

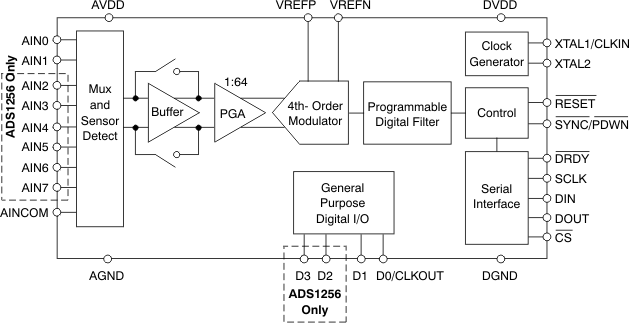

ADS1256IDBR 电路图

ADS1256IDBR 电路图

ADS1256IDBR 电路图
