ADS1202IPWR

Texas Instruments 数据采集 - ADCs/DAC - 专用型
  • 封装：8-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$2.813

更新日期：2024-04-01 00:04:00

ADS1202IPWR

Texas Instruments 数据采集 - ADCs/DAC - 专用型

产品简介：10MHz 时钟频率、+/-250mV 输入、16 位分辨率、电流分流 Δ-Σ 调制器

查看详情
  • 封装：8-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$2.813

ADS1202IPWR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADS1202IPWR 中文资料属性参数

  • 产品培训模块：Data Converter Basics
  • 视频文件：Nuts and Bolts of the Delta-Sigma Converter
  • 标准包装：2,000
  • 类别：集成电路 (IC)
  • 家庭：数据采集 - ADCs/DAC - 专用型
  • 系列：-
  • 类型：调制器
  • 分辨率（位）：16 b
  • 采样率（每秒）：40k
  • 数据接口：串行
  • 电压电源：单电源
  • 电源电压：4.75 V ~ 5.25 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：8-TSSOP（0.173"，4.40mm 宽）
  • 供应商设备封装：8-TSSOP
  • 包装：带卷 (TR)
  • 配用：296-18357-ND - EVALUATION MODULE FOR ADS1202

产品特性

  • 16-BIT RESOLUTION
  • 13-BIT LINEARITY
  • RESOLUTION/SPEED TRADE-OFF:    10-Bit Effective Resolution with 20 µs Signal    Delay (12-bit with 77 µs)
  • ±250mV INPUT RANGE WITH SINGLE 5V SUPPLY
  • 2% INTERNAL REFERENCE VOLTAGE
  • 2% GAIN ERROR
  • FLEXIBLE SERIAL INTERFACE WITH FOUR DIFFERENT MODES
  • IMPLEMENTED TWINNED BINARY CODING AS SPLIT PHASE OR MANCHESTER CODING FOR ONE LINE INTERFACING
  • OPERATING TEMPERATURE RANGE:    –40°C to +85°C
  • APPLICATIONS MOTOR CONTROL CURRENT MEASUREMENT INDUSTRIAL PROCESS CONTROL INSTRUMENTATION SMART TRANSMITTERS PORTABLE INSTRUMENTS WEIGHT SCALES PRESSURE TRANSDUCERS
  • MOTOR CONTROL
  • CURRENT MEASUREMENT
  • INDUSTRIAL PROCESS CONTROL
  • INSTRUMENTATION
  • SMART TRANSMITTERS
  • PORTABLE INSTRUMENTS
  • WEIGHT SCALES
  • PRESSURE TRANSDUCERS

产品概述

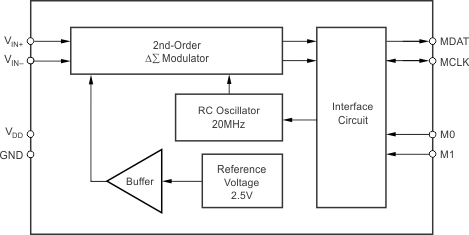

The ADS1202 is a precision, 80dB dynamic range, delta-sigma () modulator operating from a single +5V supply. The differential inputs are ideal for direct connections to transducers or low-level signals. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit Analog-to-Digital (A/D) conversion with no missing codes. Effective resolution of 12 bits can be maintained with a digital filter bandwidth of 10kHz at a modulator rate of 10MHz. The ADS1202 is designed for use in medium resolution measurement applications including current measurements, smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation. It is available in a TSSOP-8 package.
查看全部

ADS1202IPWR 数据手册

数据手册 说明 数量 操作
ADS1202IPWR

Motor Control Current Shunt 1-Bit, 10MHz, 2nd-Order, Delta-Sigma Modulator

 21 Pages页,312K 查看
