ADC14DS080CISQE/NOPB

Texas Instruments 数据转换 IC
  • 参考价格:¥281.24-¥285.04

更新日期:2024-04-01 00:04:00

ADC14DS080CISQE/NOPB

Texas Instruments 数据转换 IC

产品简介:双通道、14 位、80MSPS 模数转换器 (ADC)

查看详情
  • 参考价格:¥281.24-¥285.04

ADC14DS080CISQE/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADC14DS080CISQE/NOPB 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 转换器数量:2
  • ADC 输入端数量:2
  • 结构:Pipelined
  • 转换速率:80000 KSPs
  • 分辨率:14 bit
  • 输入类型:Voltage
  • 接口类型:Serial, LVDS
  • 信噪比:74.2 dB
  • 电压参考:Internal, External
  • Supply Voltage - Max:3.6 V
  • Supply Voltage - Min:2.7 V
  • 最大功率耗散:845 mW
  • 最大工作温度:+ 85 C
  • 封装 / 箱体:LLP EP
  • 封装:Reel
  • 最小工作温度:- 40 C
  • 工作电源电压:3 V
  • 工厂包装数量:250

产品特性

  • Clock Duty Cycle Stabilizer
  • Single +3.0V or 3.3V Supply Operation
  • Serial LVDS Outputs
  • Serial Control Interface
  • Overrange Outputs
  • 60-Pin WQFN Package, (9x9x0.8mm, 0.5mm Pin-Pitch)
  • Resolution: 14 Bits
  • Conversion Rate: 80 MSPS
  • SNR: (fIN = 170 MHz) 72 dBFS (typ)
  • SFDR: (fIN = 170 MHz) 82 dBFS (typ)
  • Full Power Bandwidth: 1 GHz (typ)
  • Power Consumption: 800 mW (typ)

产品概述

The ADC14DS080 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 14-bit digital words at rates up to 80 Mega Samples Per Second (MSPS). The digital outputs are serialized and provided on differential LVDS signal pairs. These converters use a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC14DS080 may be operated from a single +3.0V or 3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC14DS080 can be operated with an external 1.2V reference. Output data format (offset binary versus 2's complement) and duty cycle stabilizer are selectable. The duty cycle stabilizer maintains performance over a wide range of clock duty cycles. A serial interface allows access to the control registers for full control of the ADC14DS80 functionality. The ADC14DS080 is available in a 60-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C.

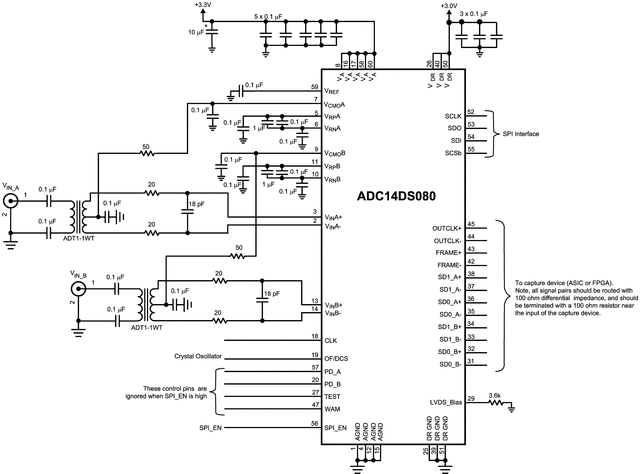

ADC14DS080CISQE/NOPB 电路图

ADC14DS080CISQE/NOPB 电路图

ADC14DS080CISQE/NOPB 电路图
