产品简介:14 位、105MSPS、1.0GHz 输入带宽模数转换器 (ADC)

查看详情
  • 参考价格:¥381.78

ADC14C105CISQE 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADC14C105CISQE 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 转换器数量:1
  • ADC 输入端数量:1
  • 结构:Pipelined
  • 转换速率:105000 KSPs
  • 分辨率:14 bit
  • 输入类型:Voltage
  • 接口类型:Parallel
  • 信噪比:73 dB
  • 电压参考:Internal, External
  • Supply Voltage - Max:3.6 V
  • Supply Voltage - Min:3 V
  • 最大工作温度:+ 85 C
  • 封装 / 箱体:LLP EP
  • 封装:Reel
  • 最小工作温度:- 40 C
  • 工作电源电压:3.3 V
  • 工厂包装数量:250

产品特性

  • 1 GHz Full Power Bandwidth
  • Internal Reference and Sample-and-Hold Circuit
  • Low Power Consumption
  • Data Ready Output Clock
  • Clock Duty Cycle Stabilizer
  • Single +3.0V or +3.3V Supply Operation
  • Power-Down Mode
  • 32-pin WQFN Package, (5x5x0.8mm, 0.5mm pin-pitch)
  • Resolution: 14 Bits
  • Conversion Rate: 105 MSPS
  • SNR (fIN = 240 MHz): 71 dBFS (typ)
  • SFDR (fIN = 240 MHz): 82 dBFS (typ)
  • Full Power Bandwidth: 1 GHz (typ)
  • Power Consumption350 mW (typ, VA=3.0V)400 mW (typ, VA=3.3V)
  • 350 mW (typ, VA=3.0V)
  • 400 mW (typ, VA=3.3V)

产品概述

The ADC14C105 is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC14C105 may be operated from a single +3.0V or +3.3V power supply and consumes low power. A separate +2.5V supply may be used for the digital output interface which allows lower power operation with reduced noise. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC14C105 can be operated with an external 1.2V reference. Output data format (offset binary versus 2's complement) and duty cycle stabilizer are pin-selectable. The duty cycle stabilizer maintains performance over a wide range of clock duty cycles.The ADC14C105 is available in a 32-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C.

ADC14C105CISQE 数据手册

数据手册 说明 数量 操作
ADC14C105CISQE/NOPB

14 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-WQFN (5x5)

33页,1.29M 查看

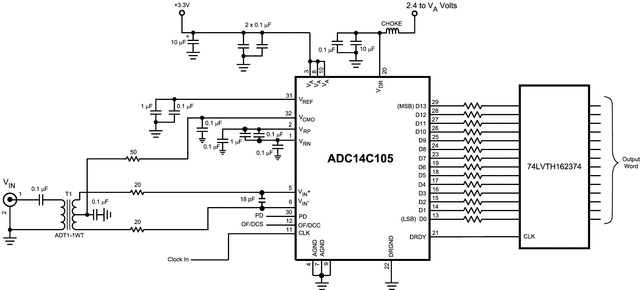

ADC14C105CISQE 电路图

ADC14C105CISQE 电路图

ADC14C105CISQE 电路图
