ADC12DS105CISQE/NOPB

Texas Instruments 数据转换 IC
  • 参考价格:¥284.00-¥314.43

更新日期:2024-04-01 00:04:00

ADC12DS105CISQE/NOPB

Texas Instruments 数据转换 IC

产品简介:双通道、12 位、105MSPS 模数转换器 (ADC)

查看详情
  • 参考价格:¥284.00-¥314.43

ADC12DS105CISQE/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADC12DS105CISQE/NOPB 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 转换器数量:2
  • ADC 输入端数量:2
  • 结构:Pipelined
  • 转换速率:105000 KSPs
  • 分辨率:12 bit
  • 输入类型:Voltage
  • 接口类型:Serial, LVDS
  • 信噪比:71 dB
  • 电压参考:Internal, External
  • Supply Voltage - Max:3.6 V
  • Supply Voltage - Min:3 V
  • 最大功率耗散:1060 mW
  • 最大工作温度:+ 85 C
  • 封装 / 箱体:LLP EP
  • 封装:Reel
  • 最小工作温度:- 40 C
  • 工作电源电压:3.3 V
  • 工厂包装数量:250

产品特性

  • Clock Duty Cycle Stabilizer
  • Single +3.0 or 3.3V Supply Operation
  • Serial LVDS Outputs
  • Serial Control Interface
  • Overrange Outputs
  • 60-pin WQFN Package, (9x9x0.8mm, 0.5mm pin-pitch)
  • Resolution: 12 Bits
  • Conversion Rate: 105 MSPS
  • SNR (fIN = 240 MHz): 68.5 dBFS (typ)
  • SFDR (fIN = 240 MHz): 83 dBFS (typ)
  • Full Power Bandwidth: 1 GHz (typ)
  • Power Consumption: 1 W (typ)

产品概述

The ADC12DS105 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 12-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). The digital outputs are serialized and provided on differential LVDS signal pairs. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. The ADC12DS105 may be operated from a single +3.0V or 3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC12DS105 can be operated with an external 1.2V reference. The selectable duty cycle stabilizer maintains performance over a wide range of clock duty cycles. A serial interface allows access to the internal registers for full control of the ADC12DS105's functionality. The ADC12DS105 is available in a 60-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C

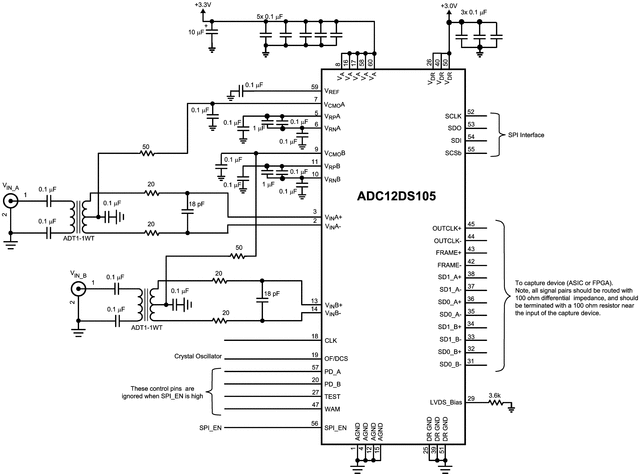

ADC12DS105CISQE/NOPB 电路图
