  • 参考价格:¥101.98-¥99.98

更新日期:2024-04-01 00:04:00

暂无图片

产品简介:双通道、12 位、40MSPS 模数转换器 (ADC)

查看详情
  • 参考价格:¥101.98-¥99.98

ADC12D040CIVS 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADC12D040CIVS 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 转换器数量:2
  • ADC 输入端数量:2
  • 结构:Pipelined
  • 转换速率:40000 KSPs
  • 分辨率:12 bit
  • 输入类型:Voltage
  • 接口类型:Parallel
  • 信噪比:69 dB
  • 电压参考:Internal, External
  • Supply Voltage - Max:5.25 V
  • Supply Voltage - Min:4.75 V
  • 最大工作温度:+ 85 C
  • 安装风格:SMD/SMT
  • 封装 / 箱体:TQFP-64
  • 封装:Tray
  • 最小工作温度:- 40 C
  • 工作电源电压:5 V

产品特性

  • Binary or 2’s Complement Output Format
  • Single Supply Operation
  • Internal Sample-and-Hold
  • Outputs 2.4V to 5V Compatible
  • Power Down Mode
  • Pin-Compatible with ADC12DL066
  • Internal/External Reference
  • SNR (fIN = 10 MHz): 68 dB (typ)
  • ENOB (fIN = 10 MHz): 10.9 bits (typ)
  • SFDR (fIN = 10 MHz): 80 dB (typ)
  • Data Latency: 6 Clock Cycles
  • Supply Voltage: +5V ±5%
  • Power Consumption, Operating(Operating): 600 mW (typ)(Power Down Mode): 75 mW (typ)
  • (Operating): 600 mW (typ)
  • (Power Down Mode): 75 mW (typ)

产品概述

The ADC12D040 is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (Msps), minimum. This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. Operating on a single 5V power supply, the ADC12D040 achieves 10.9 effective bits at 10 MHz input and consumes just 600 mW at 40 Msps, including the reference current. The Power Down feature reduces power consumption to 75 mW.The differential inputs provide a full scale differential input swing equal to 2VREF with the possibility of a single-ended input. Full use of the differential input is recommended for optimum performance. The digital outputs for the two ADCs are available on separate 12-bit buses with an output data format choice of offset binary or 2’s complement.For ease of interface, the digital output driver power pins of the ADC12D040 can be connected to a separate supply voltage in the range of 2.4V to the digital supply voltage, making the outputs compatible with low voltage systems. The ADC12D040’s speed, resolution and single supply operation make it well suited for a variety of applications.This device is available in the 64-lead TQFP package and will operate over the industrial temperature range of −40°C to +85°C. An evaluation board is available to facilitate the product evaluation process

ADC12D040CIVS 数据手册

数据手册 说明 数量 操作
ADC12D040CIVS

Dual 12-Bit, 40 MSPS, 600 mW A/D Converter with Internal/External Reference and Sample-and-Hold

22 Pages页,637K 查看
ADC12D040CIVS/NOPB

12 Bit Analog to Digital Converter 1 Input 1 Pipelined 64-TQFP (10x10)

31页,796K 查看
ADC12D040CIVSX

Dual 12-Bit, 40 MSPS, 600 mW A/D Converter with Internal/External Reference and Sample-and-Hold

22 Pages页,637K 查看

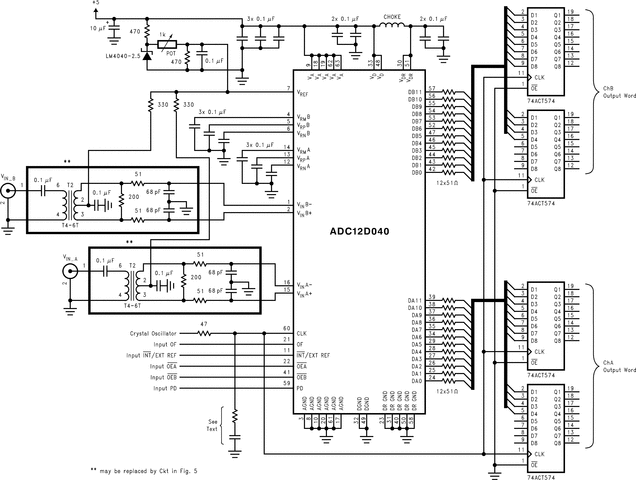

ADC12D040CIVS 电路图

ADC12D040CIVS 电路图

ADC12D040CIVS 电路图
